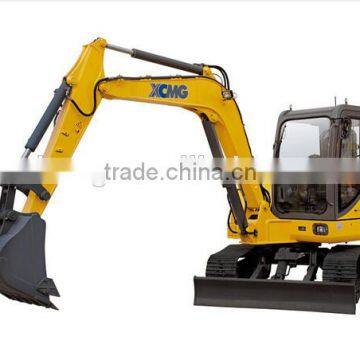

XCMG XE60CA Mini Excavator Prices

Name: XCMG XE60CA Mini Excavator Prices
Brand: XCMG
Availability: InStock

FOB Price

US$ 20,000 - 60,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	XCMG
Model Number	XE60CA	Condition	New
Moving Type	Crawler Excavator	Bucket capacity	0.09-0.23m3
Maximum Digging Height	5630mm	Maximum Digging Depth	3830mm
Machine Weight	5690KG	Rated Speed	2200r/min
Certification	CE&ISO	After-sales Service Provided	Overseas third-party support available

XCMG brand

Factory price

mini excavator

The specifications of XCMG XE60CA mini excavator prices

Model			XE60CA
Operating weight		kg	5960
Standard bucket capacity		m³	0.09-0.23
Engine	Engine Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
The main performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	11
	Max. gradeability	/	30°
	Ground pressure	kPa	32.5
	Max.Bucket digging force	kN	48.3
	Max.arm crowd force	kN	32.5
Hydraulic system	Main pump	/	Rexroth/Mr Gale
	Rate flow of main pump	L/min	138/143
	Max pressure of prime relief valve	MPa	24.5
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.5
	Fuel tank capacity	L	110
Oil capacity	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
	A Overall length	mm	5960
Overall dimensions	B Overall width	mm	1920
	C Overall height	mm	2585
	D Overall width of upperstructure	mm	1780
	E Track length	mm	2540
	F Overall width of undercarriage	mm	1920
	G crawer width	mm	400
	H Dozer black(width/height)	mm	1920×340
	I Tumbler distance	mm	1990
	J Crawer gauge	mm	1550
	K Clearance under counter weight	mm	710
	L Ground clearance	mm	385
	M Min.tail swing radius	mm	1660
	A Max. digging height	mm	5630
Working range	B Max. dumping height	mm	3945
	C Max. digging depth	mm	3830
	E Max. vertical wall digging depth	mm	2680
	F Max. digging reach	mm	6130
	G Min. swing radius	mm	2460
	H Max.dozer lifting height	mm	390
	I Max.dozer cutting depth	mm	560
	Angle of arm deflection	Degree	/

XCMG new excavator price with 1CBM bucket XE215C
