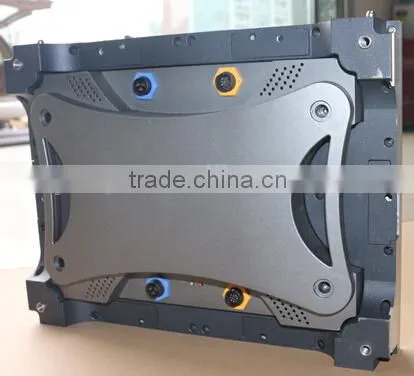

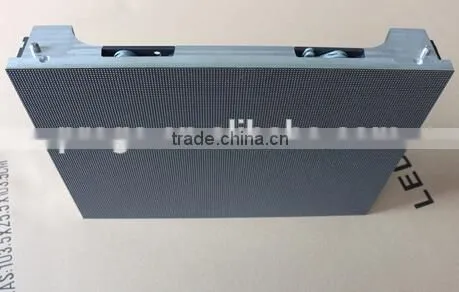

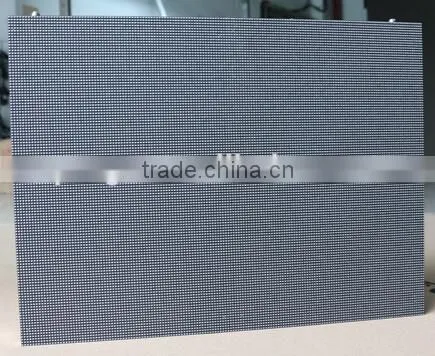

High Definition Indoor Smd1010 Full Color p2 Led Video Wall

Name: High Definition Indoor Smd1010 Full Color p2 Led Video Wall
Brand: Proge p2 led video wall
Availability: InStock

FOB Price

US$ 6,500 - 7,500 / Square Meter

1 Square Meter(Min. Order)

Port Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Proge p2 led video wall
Model Number	PG-IFC-P2	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	Other, 2mm	Screen Dimension	p2 led video wall

Product Description

high definition indoor smd1010 full color p2 led video wall

Technical Parameters:

P2 Indoor High Definition Advertising LED Screen
S/N	Item	Technical Parameters
LED Parameters
1	Item Name	LED Type	Brightness	Wave Length	H/V Visual Angle
2	Red LED	SMD1010	100-120mcd	620-625nm	140º/60º
3	Green LED	SMD1010	320-400mcd	520-525nm	140º/60º
4	Blue LED	SMD1010	70-90mcd	470-475nm	140º/60º
Module Specifications
1	Pixel Pitch	2mm
2	Pixel Configuration	SMD3in1
3	Module Resolution	100x150 pixels
4	Module Pixles	15,000 pixels
5	Module Size	200x300mm
Cabinet Specifications
1	Cabinet Size(W X H X D)	400x300mm
2	Cabinet Resolution(dot)	200 x 150 pixels
3	Module Quanity (pcs)	2pcs
4	Cabinet Pixels	30,000 pixels
5	Pixel Density	250000 pixels/m2
6	Cabinet Materials	Die Casting Aluminum
Whole Screen Specifications
1	Screen Brightness	≥1000cd/m2
2	Driving Method	1/30 scan
3	Mini Viewing Distance	2m
4	Max. Power Consumption	800W/m2
5	Average Power Consumption	400W/m2
6	Gray Level	8bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥2000Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Screen Plainness	<±1mm
17	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
18	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
19	Control Mode	Synchronous display with control PC by DVI
20	Control System	DVI video card + full color control card + fiber system( optional)
21	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22	Interface	Standard Ethernet
23	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
