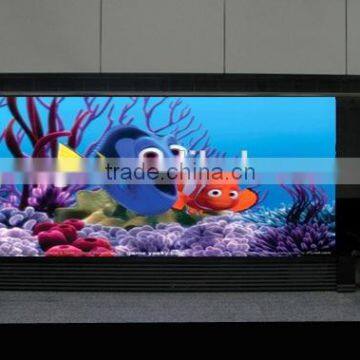

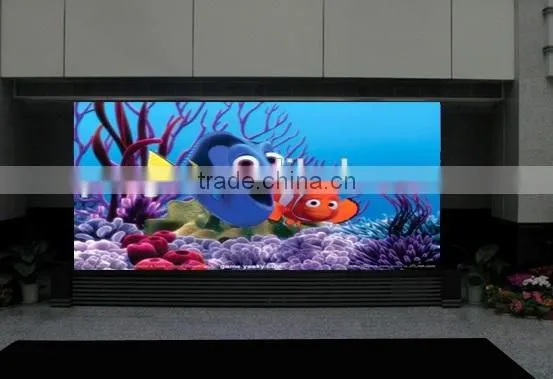

high definition p3 full color front maintenance indoor video wall
Features:
1. High contrast rate up to 9000:1 by using black LED.
2. High refresh rate with NOVA control system,no scaning line when photographed.
3. The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
4. Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost.

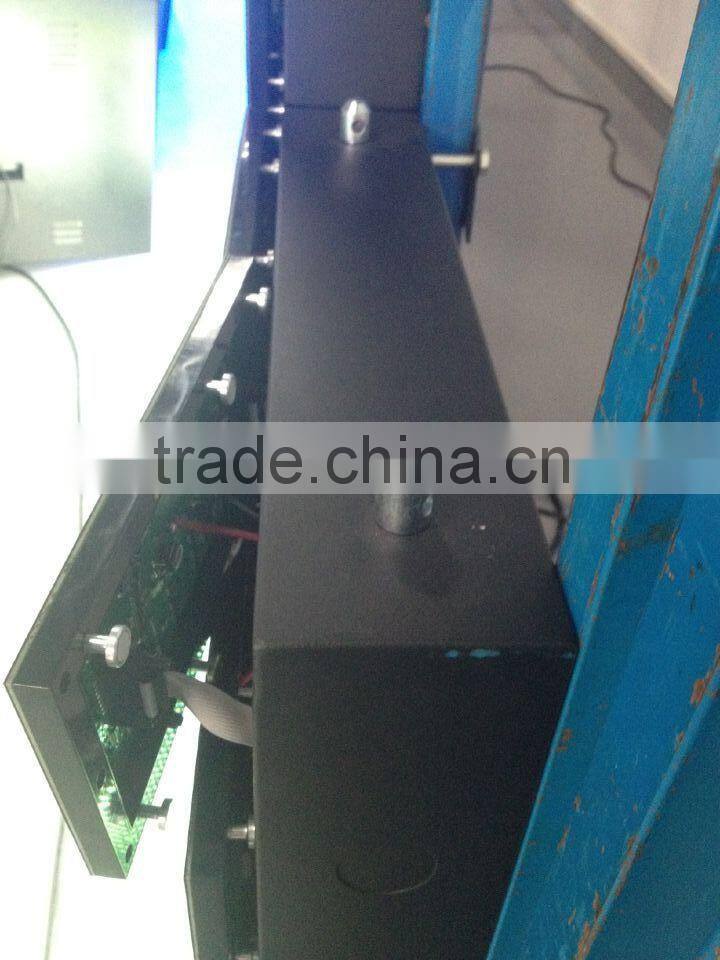

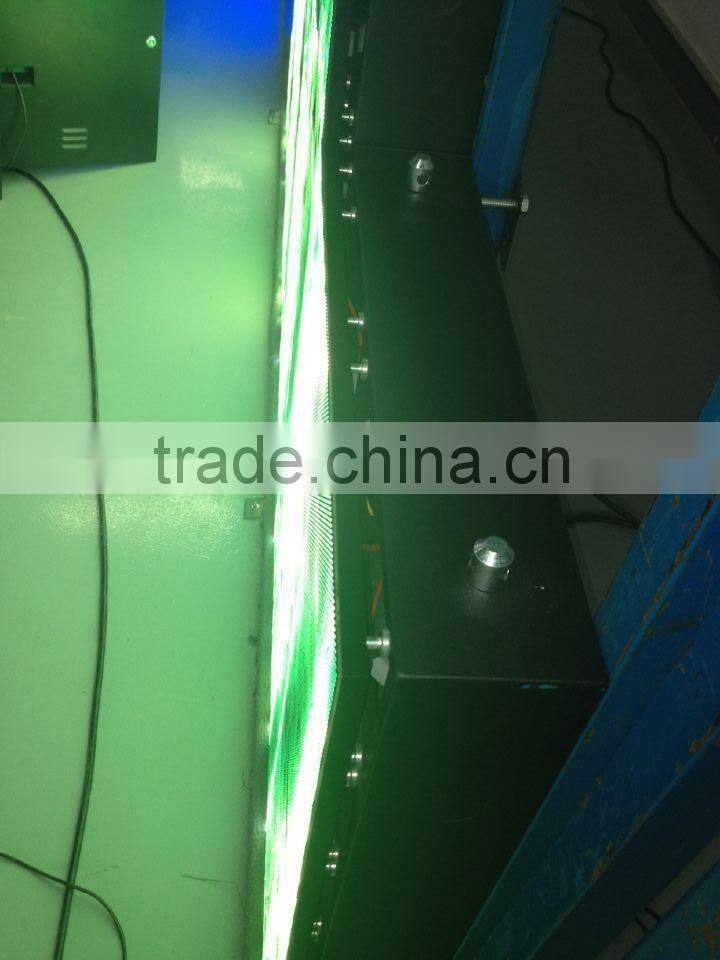

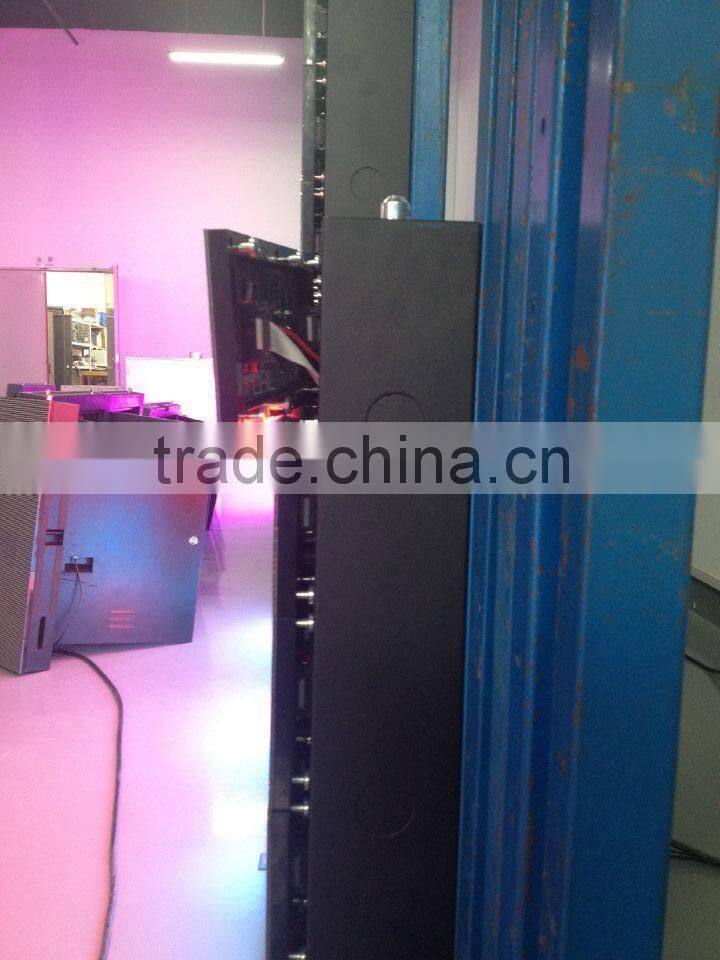

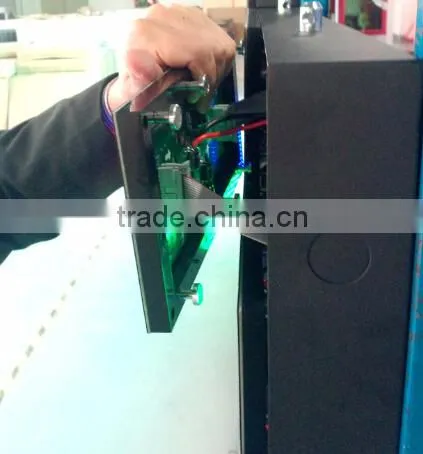

5. User-friendly design with fast locks, more convenient & fast to install and dismantle.
6. 14 bit color, 16384 gray scale, showing very clear and vivid video and images.
7. Good thermal design, excellent heat dissipation even no fan installation.
8. The same cabinet size can be compatible with different pixel pitches such as P4.8, P5.33, P6. If you want to update the product, you only need change the module.
9. It is low noise, can be installed in office and meeting room.
Specification:
| Item | Cabinet Specification |
| Material | Cast aluminum |
| Module size | 192*96mm |
| Cabinet Size | 576*576mm |
| Cabinet Resolution | 192*192 |
| Module quantity | 3*6 |
| Density | 111111dots/m2 |
| White balance luminance | ≥ 1600CD/m2 |
| Color temperature | 6500K__8000K |
| Horizontal view angel | 140 |
| Vertical view angel | 120 |
| Protection grade | IP31 |
| Non-Flatness | < 1mm |
| Module interval | < 1mm |
| Weight | 12kg/cabinet |
| Maximal power/m2 | 700W/m2 |
| Frame frequency | 60Hz |
| Refresh frequency | 800-2000Hz |
| Gray grade | 13bit |
| Luminance adjusted | 256 grade by auto-optic/color & 8 grade by hand |
| Input signal | RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc |
| Control system | PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmisson(Optional) |
| MTBF | > 5000h |
| Life-span | > 100000h |
| Speckles rate | < 0.0002 |
high definition p3 full color front maintenance indoor video wall
