Help CenterSteel Walkway Grating Spot Welding Machine
Related Products
-
Welded Steel Grating Stair Treads MachineUS$ 20,000 - 26,000MOQ: 1 Set -
Flow Forge Steel Grating Welding MachineUS$ 20,000 - 28,000MOQ: 1 Set
-
Automatic Steel Grating Bar Welding MachineUS$ 230,000 - 280,000MOQ: 1 Set
-
Steel Galvanized Grating Welding MachineUS$ 7,000 - 27,000MOQ: 1 Set
-
Welded Galvanized Steel Grating Machine FactoryUS$ 8,000 - 30,000MOQ: 1 Set
Specifications
Steel walkway grating spot welding machinegrating cross bar diameter:5-8mm
flat bar:2.5*25-5*65mm
grating size:1m*6m

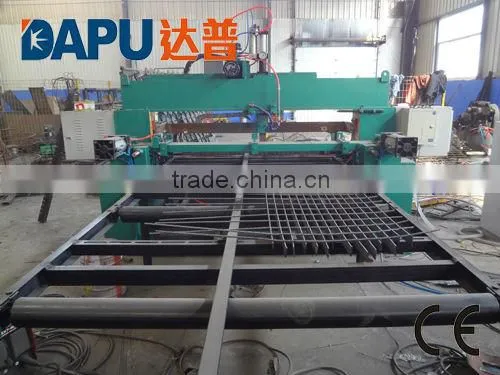

Steel walkway grating spot welding machine
Steel walkway grating spot welding machine characteristics:
Steel doses of board weld production line to finish flat-rolled steel and round steel (it is entangle square steel to sprain) horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications, apply to the platforms of such trades are petroleum, chemical industry, electricity, quay, municipal administration, environmental protection, national defence, etc., hang and carry, enclose the bar, walk etc. extensively.

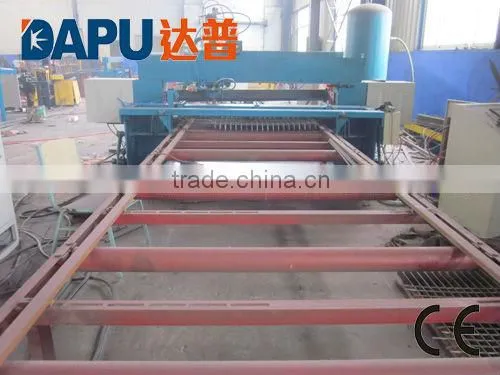

Steel walkway grating spot welding machine
|
Diameter: flat bar 2.5*25—5*65mm(thickness* width) Twisted bar 5-8mm |
Rate voltage:380v,50hz,3phase(according to the customers) |
Width of mesh(max):1m |
Power supply: 100kva,the distance between the machine and the power should no more than 50m |
Length of mesh(max):6m |
Welding transformer: 150kva*2 |
|
Welding aperture: longitudinal aperture 30.40.50 Weft aperture 30.50.100 |
Feeding way: the flat bar should be put by the worker; the twist bar should be straightened. |
Capacity:60-100Square meters/8h |
Cutting way: manual wheel cutting machine |
Weight:4t |
Post process: galvanize, cutting |
Steel walkway grating spot welding machine
