Specifications
Welded steel grating stair treads machine1.grating width:1000mm
2.grating length:6000mm
3.cross bar diameter: 5-8mm
4.CE

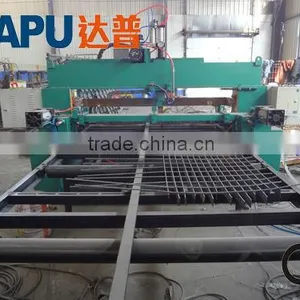

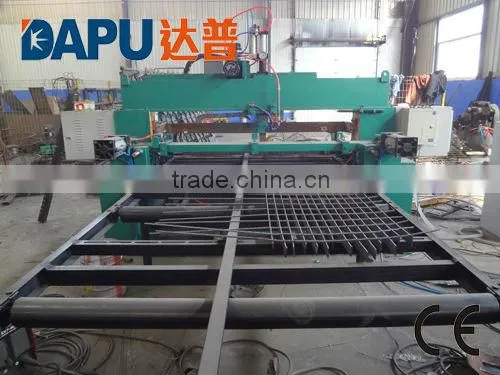

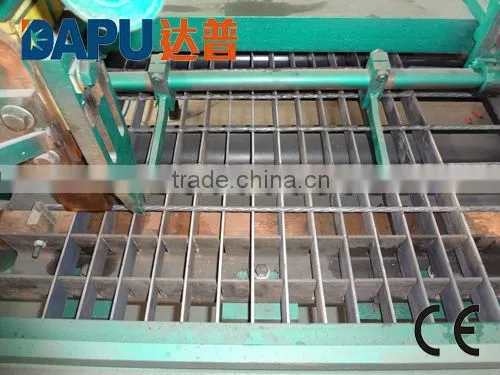

Welded steel grating stair treads machine
Welded steel grating stair treads machine
1.The machine adopts electric and electronic synchronous control technique, both welding time and separate-welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point, Transmission mechanism using import pneumatic components, with import welding stress even, low failure rate and long service life etc.

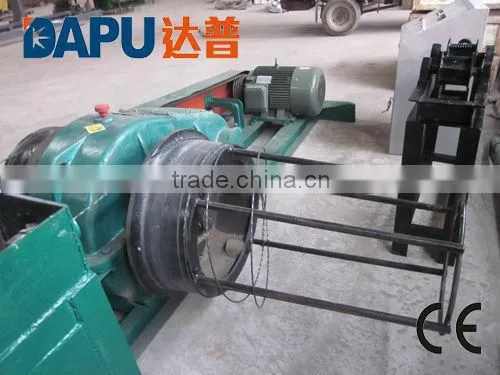

2. Accessorial parts: air compressor, twisted drawing machine, wire straightening& cutting machine, bracket, CO2welding machine, manual wheel cutting machine.
3. Use of the products:

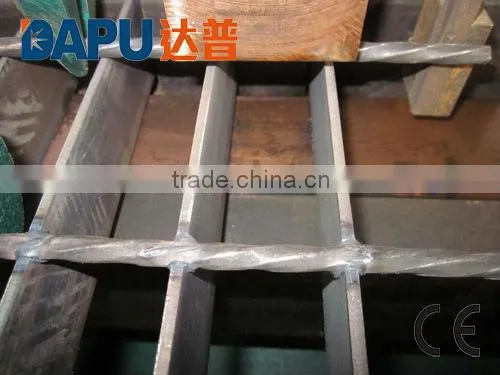

Steel grating is widely used in the plat form, corridor, bridge, stairs, fencing for power plant, civil engineering projects and environmental projects.
Welded steel grating stair treads machine
|
Diameter: flat bar 2.5*20—5*65mm(thickness* width) Cross bar diameter: 5-8mm |
Rate voltage:380v,50hz,3phase (according to the customers) |
|
Bearing flat bar space: 30. 40mm Cross bar space: 50. 100mm |
Rated capacity: 100kva,the distance between the machine and the power should no more than 50m |
Length of mesh(max):6m |
Welding transformer: 150kva*2 |
Width of mesh(max):1m |
Dimension: 16000*2500*1500mm |
Production capacity: 70-100Square meters/8h |
Cutting way: manual wheel cutting machine |
Weight:4t |
Post process: galvanize, cutting |
Welded steel grating stair treads machine
