Specifications

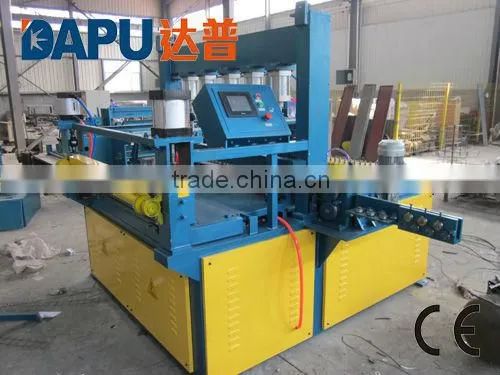

Steel wire mesh welding machine (factory)1.Many kinds of wire mesh machine
2.Cheap price
3.Factory in Anping,China
4.CE
Automatic wire mesh welding machine factory
Contact Person: Bruce Ma
Skype: dapumachine
QQ: 1228185359
Mobile: 0086-15930181601 (whatsapp)
|
Factory: Hebei Jiake Welding Equipment Co.,Ltd. Location: Industrial Zone, Anping County, Hebei Province, China. Main Products: wire mesh welding machine, welded wire mesh machine, wire mesh weaving machine and metal&wire processing machinery. Note: Our factory can design the wire mesh welding machine according to clients' wire diameter, mesh aperture and mesh width. |

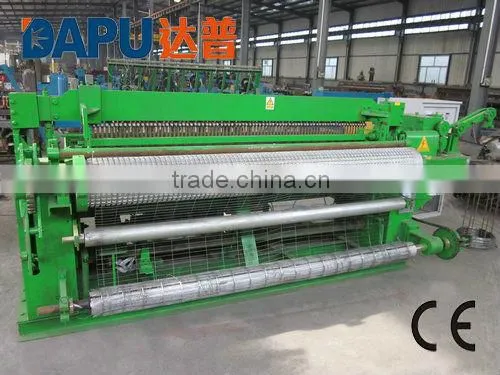

Full automatic wire mesh welding machine
Full automatic wire mesh welding machine
Type |
DP-DNW-1 |
DP-DNW-2 |
DP-DNW-3 |
DP-DNW-4 |
Wire diameter |
0.4-0.65mm |
0.65-1.8mm |
1.0-2.2mm |
1.4-3mm |
Aperture/pitch |
6.35-12.7mm |
12.7-101.6mm |
25.4-101.6mm |
Min50mm |
Mesh width |
1m |
1.2m;1.5m |
1.2m;1.5m,1.8m,2m |
Max2.5m |
Motor |
2.2kw |
2.2kw |
2.2kw;4.0kw |
4.0kw |
Welding speed |
Max75 rows/min |
Max120 rows/min |
Max 80 rows/min |
45 times/min |
Transformer |
50kva*3 |
60kva*4; 60kva*5 |
60kva*4,5,6,7 |
60kva*5pcs |

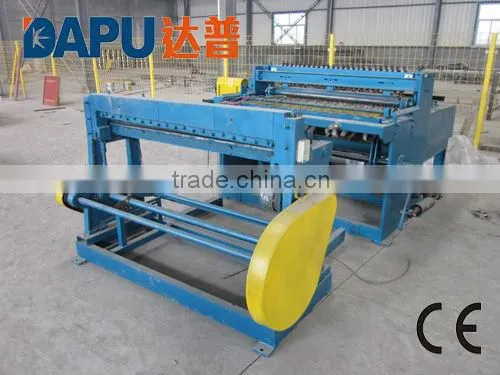

Mechanical wire mesh welding machine
Mechanical wire mesh welding machine
Type |
DP-MW-1200A |
DP-MW-1200B |
DP-MW-1200C |
Wire Diameter |
1.4-2.5mm |
2.5-3.5mm |
3-5mm |
Longitude Wire Space |
50-200mm |
50-200mm |
50-200mm |
Cross Wire Space |
25-200mm |
25-200mm |
50-200mm |
Width of Mesh |
1200mm |
1200mm |
Max 2500mm |
Welding Electrodes |
25pcs |
25pcs |
48pcs |
Welding Speed |
60 times/min |
45 times/min |
45 times/min |
Longitude Wire Feeding |
From Wire Coils |
From Wire Coils |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
Pre-cut&Straightened |
Pre-cut&Straightened |
Rated Electrical Power |
56kva*3pcs |
85kva*3pcs |
100kva*6pcs |

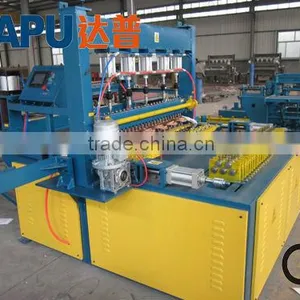

Pneumatic wire mesh welding machine
Pneumatic wire mesh welding machine
Type |
DP-PW-1200A |
DP-PW-1200B |
Wire Diameter |
2-3mm |
2.5-4mm |
Longitude Wire Space |
50mm |
50mm |
Cross Wire Space |
50mm |
50mm |
Width of Mesh |
1200mm |
1200mm |
Welding Electrodes |
25pcs |
25pcs |
Welding Speed |
26 times/min |
26 times/min |
Longitude Wire Feeding |
From Wire Coils |
From Wire Coils |
Cross Wire Feeding |
From Wire Coils |
Pre-cut&Straightened |
Rated Electrical Power |
60kva*3pcs |
85kva*3pcs |
Steel wire mesh welding machine
Steel wire mesh welding machine
Model |
DP-FP-2500B |
Longitude wire feeding |
From wire coils |
Wire diameter |
3-5mm |
Cross wire feeding |
Pre-straightened&pre-cut |
Longitude wire space |
50-200mm |
Welding electrodes |
41pcs |
Cross wire space |
50-200mm |
Rated electrical power |
125kva*5pcs |
Mesh width |
Max.2.5m |
Overall size |
2.9*2.2*1.7m |
Welding speed |
45 times/min |
Weight |
4500kg |
CNC wire mesh welding machine
CNC wire mesh welding machine
Model |
DP-FP-2500A |
Welding speed |
40 times/min |
Wire diameter |
2.5-6mm |
Welding electrodes |
48pcs |
Longitude wire space |
50-300mm |
Longitude wire feeding |
Pre-straightened&pre-cut |
Cross wire space |
25-300mm |
Cross wire feeding |
Pre-straightened&pre-cut |
Mesh width |
Max.2.5m |
Rated electrical power |
85kva*6 pcs |

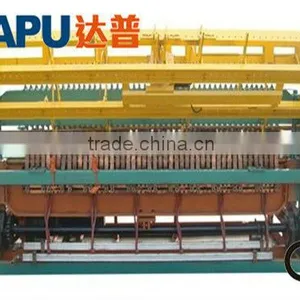

Construction wire mesh welding machine
Construction wire mesh welding machine
Model |
DP-GW-2500A |
DP-GW-2500B |
Wire Diameter |
5-12mm |
5-12mm |
Line Wire Space |
100-300mm |
100-300mm |
Cross Wire Space |
50-300mm |
50-300mm |
Width of Mesh |
Max.2500mm |
Max.2500mm |
Welding Speed |
30 times/min |
50 times/min |
Welding electrodes |
24pcs |
24pcs |
Wire feed way |
Pre-straightened&pre-cut |
Pre-straightened&pre-cut |
Rated Electrical Power |
100kva*12pcs |
125kva*12pcs |
