Help CenterGalvanized Steel Wire Mesh Welding Palnt
Related Products
-
Electric Welded Metal Mesh MachineUS$ 10,000 - 12,000MOQ: 1 Set -
2016 Advanced Industrial Mesh Welding Machine Quality ChoiceUS$ 10,000 - 30,000MOQ: 1 Set
-
Automatic Galvanized Steel Wire Mesh Welding Machine (Factory Price)US$ 10,000 - 30,000MOQ: 1 Set
-
Welded Roll Wire Mesh Making Machine Supplier's ChoiceUS$ 10,000 - 30,000MOQ: 1 Set
-
Full Automatic Electric Mesh Welding MachineUS$ 15,000 - 15,000MOQ: 1 Set
Specifications
Galvanized steel wire mesh welding palnt1.Wire diameter:0.4-3mm
2.Aperture:1"*1";2"*2"
3.Mesh width:1m-2.5m

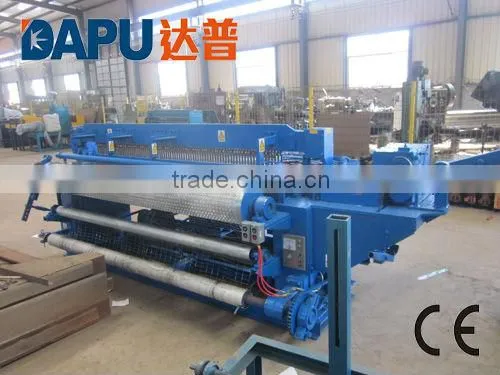

Galvanized steel wire mesh welding palnt

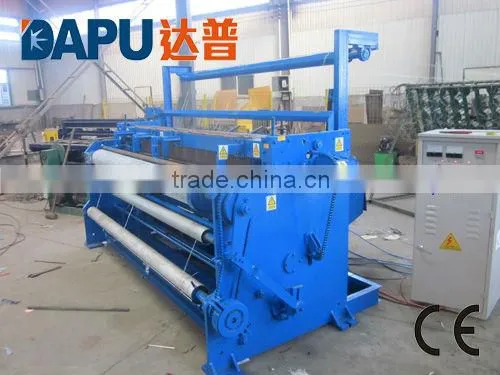

Galvanized steel wire mesh welding palnt
Galvanized steel wire mesh welding palnt
Type |
DP-DNW-1 |
DP-DNW-2 |
DP-DNW-3 |
Wire diameter |
0.4-0.65mm |
0.65-1.8mm |
1.0-2.2mm |
Aperture/pitch |
6.35-12.7mm(1/4”-1/2”) |
12.7-101.6mm(1/2”-4”) |
25.4-101.6mm(1”-4”)) |
Mesh width |
914.4mm;1000mm |
1219.2mm;1524mm (4 feet;5 feet) |
1219.2mm;1524mm;1828.8mm;2133.6mm(4 feet;5 feet;6 feet;7feet) |
Motor |
2.2kw |
2.2kw |
2.2kw;4.0kw |
Welding speed |
Max 75 rows/min |
Max 120 rows/min |
Max 80 rows/min |
Galvanized steel wire mesh welding palnt characteristics
1. The longtitude wires and cross wires are fed from wire coils.
2. It is full automatic machine-auto wire feed, mesh cut, mesh pull, edge cut, mesh roll.
3. The machine is suitable for low carbon steel wire and stainless steel wire.

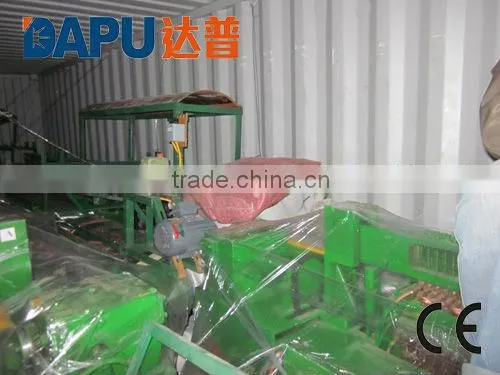

Galvanized steel wire mesh welding palnt in roll
