High Quality Automatic Stone Usage Shot Blasting Machine
Granite surface Wheel Blasting Machine is mainly used for surface roughening treatment of marbles, granites, concrete blocks.

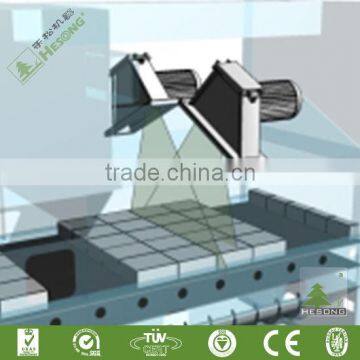

The working principle: different sized abrasive, thrown by the rapidly rotating blast wheel, is accelerated towards the surface being prepared. Huge impact force of the abrasive quickly etches a unique three-dimensional character of the surface. The products processed in this way have a high quality surface appearance without overlapped and dead zone, it also have high productivity efficiency and low cost. Comparison with the old power blader and singeing process method, it have higher efficiency and lower cost, and if connected to our dust collector, the dust and contaminants will be recycled automatically at a very low dust emission level, which comply with EU environmental standards. It has a strong market competition and prospective application in stone industry.
Model | QZ40 | QZ50 | QZ60 | QZ70 | |
Max. Cleaning dimension(W*H) | 600*400mm | 800*400mm | 1000*400mm | 1200*400mm | |
Passing speed | 0.5-7m/min | 0.5-7m/min | 0.5-7m/min | 0.5-7m/min | |
Blast Wheel assembly | Model | KT160 | |||
Power | 2*11kW | 4*11kw | |||
Dust collecting type | Bag filters | ||||
Dust collecting system | Total ventilation capacity | 7000m3/h | 10000m3/h | 10000m3/h | 20000m3/h |
Power | 7.5kw | 11kw | |||
Cleaning Efficiency
The key part of shot blasting machine is blast wheel / wheel turbine :
1.We have more than 50 years of professional experience in manufacturing Foundry Equipment and Surface Treatment Equipment in China.
2. Our design department is equipped with the latest computer aided technology to ensure the company remains at the forefront of equipment development.
3. In order to ensure the quality of products, we adopt advanced CNC machining centers.
4. We have first-class installation and commissioning team and experienced front-line workers.
5. There are many successful cases in designing and manufacturing non-standard large equipments for our customers.
We specialize in the design and manufacture of:
Shot Blasting Machine
Sand Blasting Machine and manual sandblasting pot
Foundry sand mixer
Core shooter
Jolt Squeeze Molding Machine
Sand preparation line for foundry (Clay and resin sand )
Automatic Moulding Machine(line)
Our Company have our own blasting wheel CNC Machining Center:
Our service:
1.Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Our machines were exported to France, Spain ,Russia, Mexico , Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries.
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.
