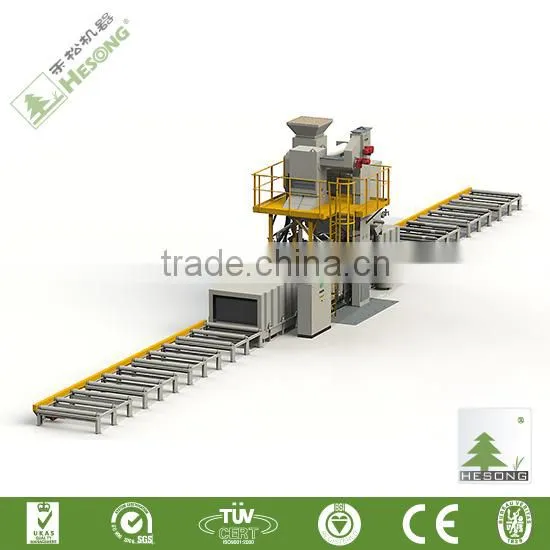

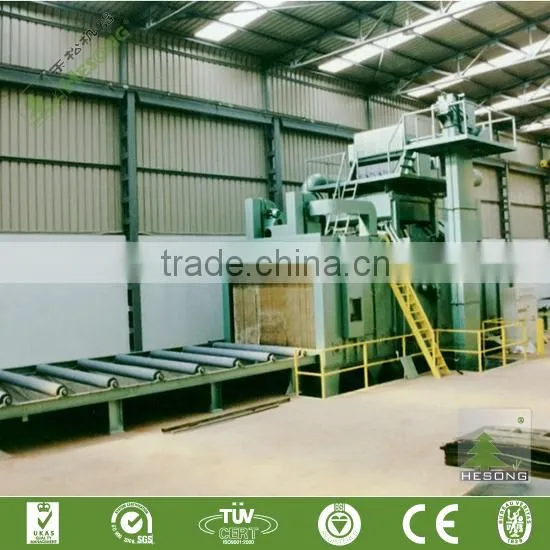

Roller Conveyor Type Shot Blasting Machine Abrator
Technology Description:
Profiles Roller Conveyor Shot Blasting Machines is designed and manufactured to clean the surface of the large section steel.It is most used for t removing the rust, scale and contamination from the steel surface of large scale H-Beam and I-Beam.This series shot blasting machine is most suitable for production floor in the construction industries, marine, off-shore oil & gas industries etc
It is mainly used in building industry, bridge industry etc.
It is used to eliminate the pressure and surface rust cleaning of large I-shaped steel.
It and other steel construction parts.
| Parameter | Unit | Q698 | Q6912 | Q6915 | Q6920 |
| Cleaning Height | MM | 800 | 1200 | 1500 | 2000 |
| The Size of Feed Inlet | MM | 1000*400 | 1400*400 | 1700*400 | 2200*400 |
| The Length of Cleaning Workpiece | MM | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 |
| Transportation Speed | MM | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Thickness of Cleaning Steel | MM | 3-60 | 3-60 | 1.5-60 | 3-60 |
| Specification of Processing Steel | MM | 800*300 | 1000*300 | 1500*300 | 2000*300 |
| Blasting Capacity | KG/MIN | 4*180 | 4*250 | 4*250 | 6*250 |
| Total Power | KW | 90 | 78.3 | 113.6 | 156.9 |
Blasting chamber

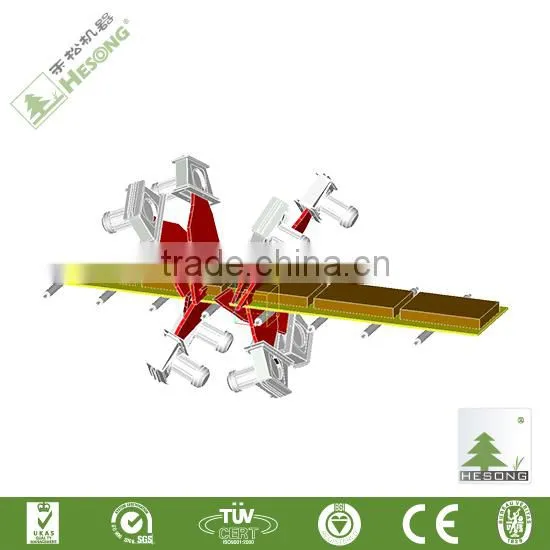

Blast wheel assembly
Blast wheel assembly is made up of blast wheel shell, motor, importing tube, blades, impeller, control cage, points wheel, block sand plate, guard board and other components, which leaves, guard board, etc all wear parts using 20% high-chromium cast iron.
Separator
This machine adopts advanced Model BE full shutter type separator. The separator is mainly composed of airwash area, barrel sift, conveying screw, abrasive hopper, manual abrasive controlling valve.
Dust removal system
This machine adopts Cartridge or Bag type dust collector, is exhausted air produced during working. The dedusting efficiency is up to 99.6%, powder density is less than 100mg/m`3,much stricter than the national standard.
Electric control system
Set shot ball circulatory failure alarm function, if any parts of the system fails, the above components automatically stop running, to prevent the shot ball stuck and burning power device.
Design capability
Other companiers in the same industry need at least three months to make non-standard products, our company only
need a month and half.
For large non-standard products, manufacturing time is within three months.
It is also noteworthy that we produces all other components including castings, sheet metal, weldments, machined
parts, in addition to the standard pieces for example the motors and gear motors, bearings, electric hoist, it is easy to
control manufacturing quality; At the same time , in the service , our company fully responsible for after-sales service,
there is no triangular relationship and a passing phenomenon, and be able to solve the problem quickly. In addition, it can
put an end to the outsourcing units profit,reduce machine cost, allowing users to directly benefit.
After-sales service and spare parts service
Our company has improved components finished products, such as blasting assembly and wear-resistant parts, providing year-round maintenance of equipment for domestic and international customers, spare parts and maintenance required, the user can directly call the communication link with the sale of the Company If users need, the company will be required to ensure that within three days of the factory parts to the user.
Qingdao Qingzhu Foundry Machine Co., Ltd is a professional manufacturer, which is located in Qingdao,China. It is the largest production and export base for foundry machinery in China. It have three production series: Shot blasting machine, sand blasting room / booth , Foundry molding machine and sand core shooter machines.
Our machines were exported to France, Spain ,Russia, Mexico, Japan,korean, Pakistan,Vietnam,Thailand,Southeast Asia and other countries , so hope you can trust our professional technology and strength !

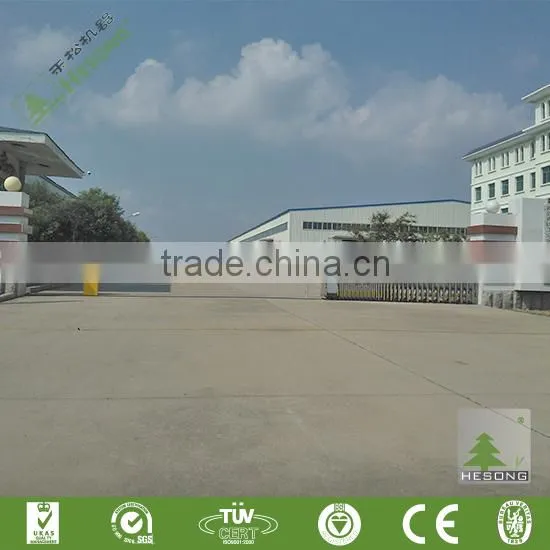

Factory

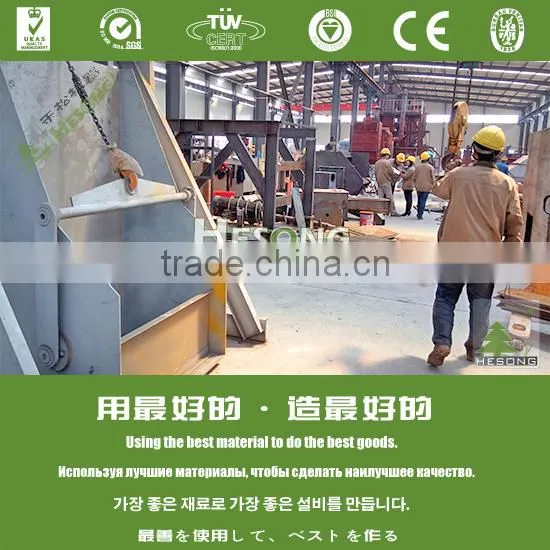

Workshop

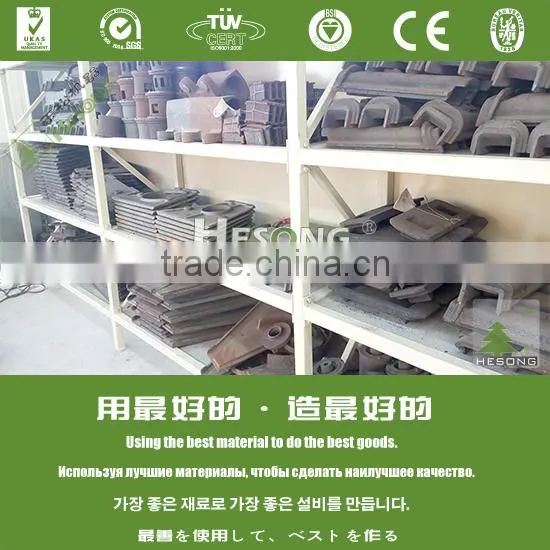

Spare Parts
