High Quality Casting Sand Moulding Machine
Qingdao Foundry Machine Co., Ltd. is a specialized company in design and production of: Main production various series of other machine, shotblast cleaning machine, dust collector, dust collector, single bag dust collector, filter bag and other various dedusting accessories products
Company technical cengcengbaguan, using computer testing equipment to ensure each product qualified, unqualified products put an end to enter the market of environmental protection, the company also recognized by the vast number of old and new customers, products sold at home and abroad!
The company products are widely used in coal-fired power plants, metallurgy, mining, building materials, casting, chemical machinery, food, tobacco, asphalt cement (including biological boiler), mechanical processing, boiler etc, and realizes the design - production - installation and debugging, technical training services.

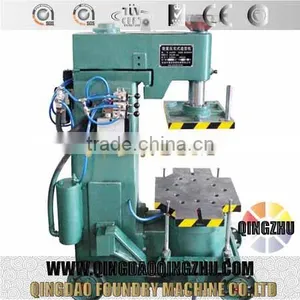

Z143W/Z143WB
The machine is suitable for mass production of small cast-sided plate sing-box shape,canbe made on case or lower case,the device uses a spring microseismic compacting mechanism,made,sand compaction and uniform,to improve the qulity of castings play a guarantee.Pneumatic lines concise,simple,flexible,and easy to use. Optimal design of the machine adopt the square chest and frame struture,so it can significantly increase the rigidity of the fuselage!
| Item | Unit | Z143W |
| Sand box mixum size | mm | 500*400 |
| Table size | mm | 600*520 |
| Shock load | kgf | 200 |
| Pressure strength | kgf | 4200 |
| From stroke | mm | 160 |
| Productivity | kgf | 4.0-60 |
Z145WA/WB microseism squeeze sand moulding machine
Optimal design of structure,the fluselage of the machine adopt the square chest and frame struture,so it can significantly increase the rigidity of the fuselage!The machine adopt the jolting technology,so it can significantly increase the compressive stress to make the hardness up to HB90and upgrade one level about the surface roughness,so it can guarantee the quality.The shock part of the machine is buffer spring,so it can effectively reduce the impact to foundation.The pattern drawing mechanismadopt the cylinder,crank,connecting rod,synchronizing shaft to achieve the synchronism.
| Item | Unit | Z145WA | Z145WB |
| Sand box maxium size | mm | 500*450*200 | 500*450*200 |
| Tabale size | mm | 600*550 | 600*550 |
| Shock load | kgf | 300 | 300 |
| Pressure strength | kgf | 5500 | 5500 |
| Compaction stroke | mm | 200 | 200 |
| Form stroke | mm | 180 | 180 |
| Productivity | box/h | 40-60 | 40-60 |
| Shock cylinder diameter | mm | 150 | 150 |
| Free air consumption | m^3/box | 0.4 | 0.3 |
| Dimensions LxWxH | mm | 1300*800*1700 | 1200*800*1680 |
| Item | Unit | Z148WK |
| Sand box mixium size | mm | 800*630*300 |
| Table size | mm | 900*730 |
| Narmal working pressure | mpa | 0.55 |
| Compressive strength | kgf | 16000 |
| Shock load | kgf | 750 |
| Compaction stroke | mm | 200 |
| Form stroke | mm | 300 |
| Head to the table maximum distance | mm | 620 |
| Pressure head adjustable range | mm | 150 |
| Productivity | box/h | 40-60 |
| Dimensions LxWxH | mm | 1615*1180*2175 |
| Total weight | kg | 5000 |
| Item | Unit | Z146W |
| Sand box size | mm | 600*500*250 |
| Table size | mm | 700*550 |
| Normal working pressure | mpa | 0.55 |
| Compressive strength | kgf | 750 |
| Shock load | kgf | 400 |
| Compaction stroke | mm | 160 |
| Form stroke | mm | 220 |
| Head to the table maximum distance | mm | 450 |
| Pressure head adjustable range | mm | 150 |
| Productivity | box/h | 40-60 |
| Dimensions LxWxh | mm | 1000*850*1760 |
| Total weight | kg | 1600 |
| Item | Unit | Z148WB |
| Sand box maxium size | mm | 800*630 |
| table size | mm | 900*730 |
| shock load | kgf | 600 |
| pressure strength | kgf | 10000 |
| compaction stroke | mm | 200 |
| form stroke | mm | 250 |
| productivity | m^3/box | 40-60 |
| compaction plate with max distance | mm | 620 |
| dimensions LxWxH | mm | 1760*1180*2280 |
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in time.
3. Customized design is available.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of Shot Blasting Machine & Molding Machine & Core Shooting Machine for more than 40 years, competitive with good quality.
7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
Welcome to contact us or visit our company.
