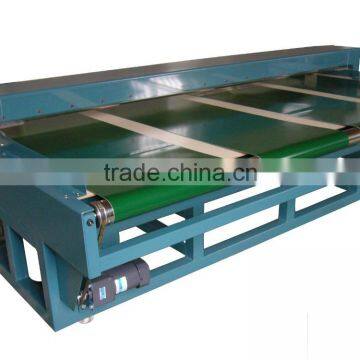

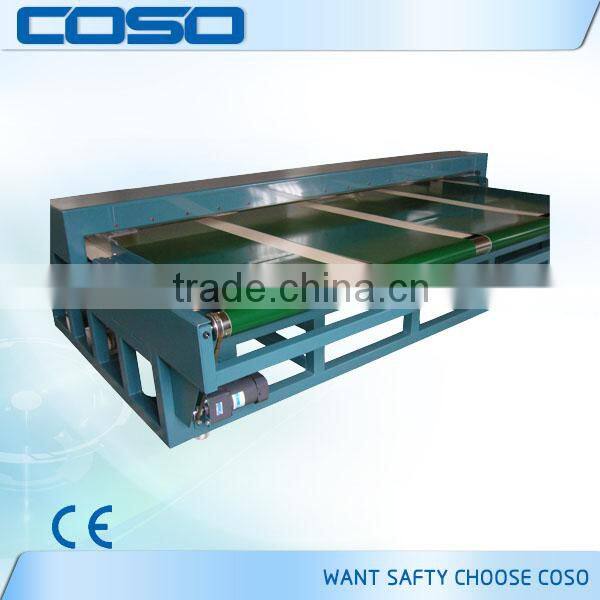

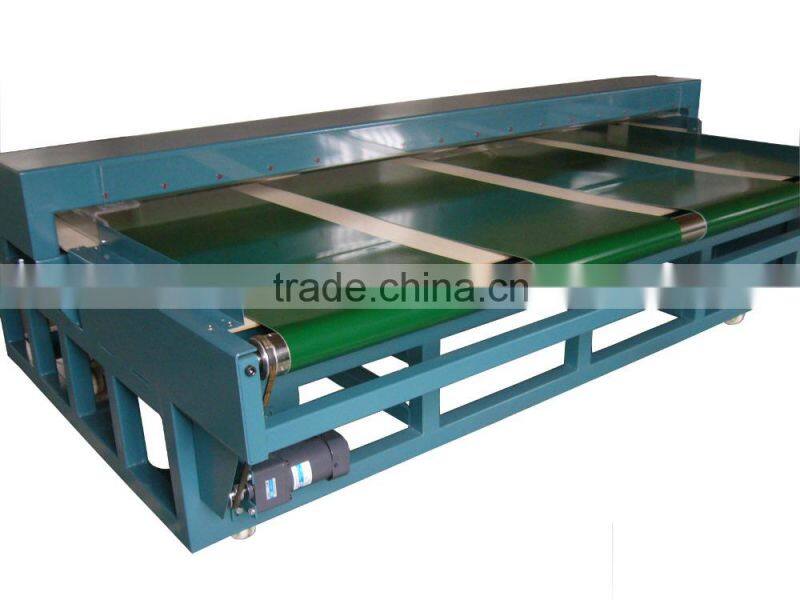

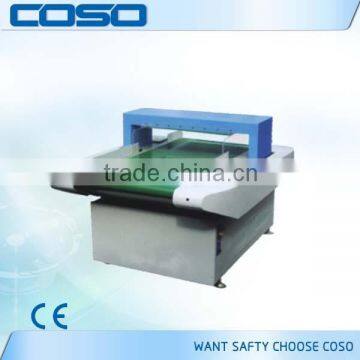

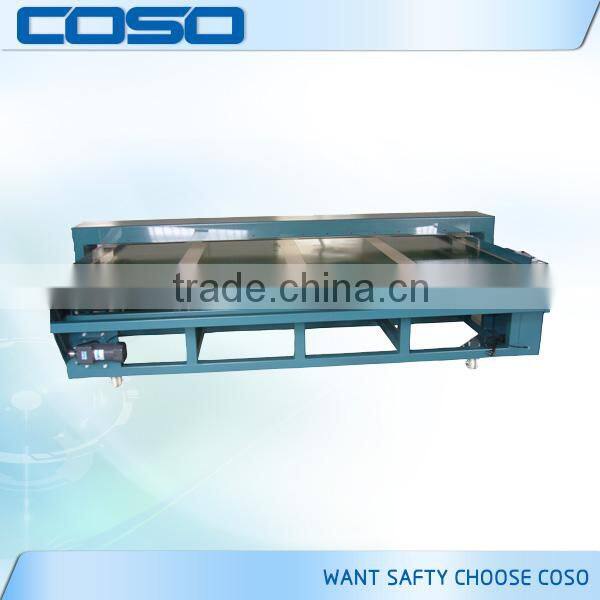

Metal Detector for Textile

Name: Metal Detector for Textile
Brand: COSO
SKU: 124826845
Availability: InStock

US$ 2,000 - 4,000 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

COSO

Model Number:

SMC6010A

Dongguan Coso Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name COSO

Model Number SMC6010A

Power Electronic

Usage Process Testing Machine

Industrial Auto-conveying needle Metal Detector

FEATURES:

1.Apply self-developed patent technology.

2.High sensitivity.

3.Easy operate, history data can be processed and saved automatically before the system switches off.

4.Self-designed high-frequency power switch.

5.Microcomputer controlled motor to extend working life.

6.Precise counter device.

7. LBD indicates the needle position.

8.Automatic alarm when needle is detected,automatic return and stop function.

SPECIFICATIONS:

Model	Detecting area		Detecting Sensitivity	Power Supply	Power Consu-mption	Dimension(mm) L×W×H
	Width	Height
SMC6010A	600mm	100mm	Fe. BallΦ≥0.8mm	AC220v±50HZ	60w	1820×1050×900
SMC6012A	600mm	120mm	Fe. BallΦ≥1.0mm			1820×1050×920
SMC6015A	600mm	150mm	Fe. BallΦ≥1.2mm			1820×1050×950
SMC6020A	600mm	200mm	Fe. BallΦ≥1.5mm			1820×1050×1000
SMC6025A	600mm	250mm	Fe. BallΦ≥1.0mm			1820×1050×1050
SMC6030A	600mm	300mm	Fe. BallΦ≥2.5mm			1820×1050×1100
Detecting Method			Magnetic induction
Sensitivity Adjustment			10steps
Alarm Method			Buzzer, 8 indicators for steel locating
Belt Speed			25m/min
Net Weight			180kg
