120kw Marine Diesel Engine

120kw Marine Diesel Engine photo-1
US$ 2,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
U-POWER
Output Type:
AC Three Phase
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name U-POWER
Output Type AC Three Phase
Speed 1500RPM
Frequency 50/60HZ
Rated Power 10-120kw
Rated Voltage 400/230V,Changable

Marine Generator/ Marine Diesel generator/ Marine Diesel generator set/ Marine Diesel generating set/ Marine Diesel engine genset/ Marine Diesel Genset/ Marine Genset

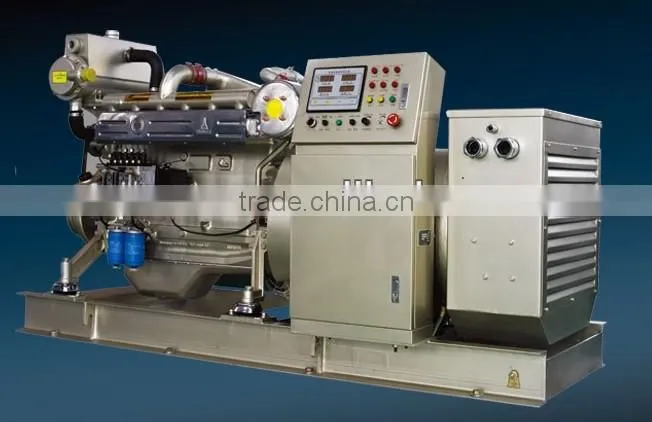

   120kw marine diesel engine

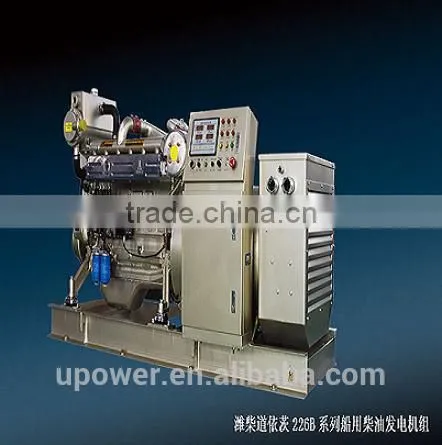

Weichai Deutz 226B marine diesel generating sets



Weichai Deutz 226B marine diesel generating sets



Introduction for 226B diesel engine

This kind of diesel engine is modular designed. It has the advantages of compact structure, small volume, light weight, strong power, low fuel consumption, little vibration, high reliability, easy start, and universally used spare parts. The emission can meet the Euro Ⅱ standard.



Introduction for generating set

226B series marine generating sets  have a power range of 24kW--120kW. CCS inspection certification, ZY certification and BV certification are available. The manufacturing and inspecting standard for diesel generating sets for vessels in Weichai is GB/T13032-1991<General technology conditions for marine diesel generating sets.



Model List of 226B Series Marine Generating Set

Genet Model Continuous output(kW) Rated Voltagey(V) Rated currency(A) Rated loading fuel consump(kg/h) 226B Series Diesel Engine Exciting method Alternator Manufacturer
Engine model Max output(kW) Rated speed(r/min) Governing method Starting method Cooling method
CCFJ24J-WJ 24 400 43.5 4.8 D226B—3CD 33 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ30J-WJ 30 400 54 5.9 TD226B—3CD 44 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ40J-WJ 40 400 72 7.9 TD226B—4CD 66 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ50J-WJ 50 400 90 9.9 TD226B—4CD 66 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ64J-WJ 64 400 115 12.8 TD226B—6CD 99 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ75J-WJ 75 400 135 16 TD226B—6CD 99 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ90J-WJ 90 400 163 18 TBD226B—6CD 132 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ100J-WJ 100 400 181 20 TBD226B—6CD 132 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon
CCFJ120J-WJ 120 400 217 24 TBD226B—6CD5 159.5 1500 Mechanical Electrical Dual-circulate water-cool Brushless Marathon

-- Our Factory

             large scale, strength in productivity. You can trust us if you choose us!

    120kw marine diesel engine





-- Our Enterprise qualification


          We are proved to be a good enterprise to produce this engine for you!

   120kw marine diesel engine





Welcome to receive your any enquiry!

We will do our best to supply the best solution for your application!
