Home > Industrial Equipment & Components > Engine & Part > Engine > 2014hot Sale! Marine Diesel Engines With Gearbox Prices

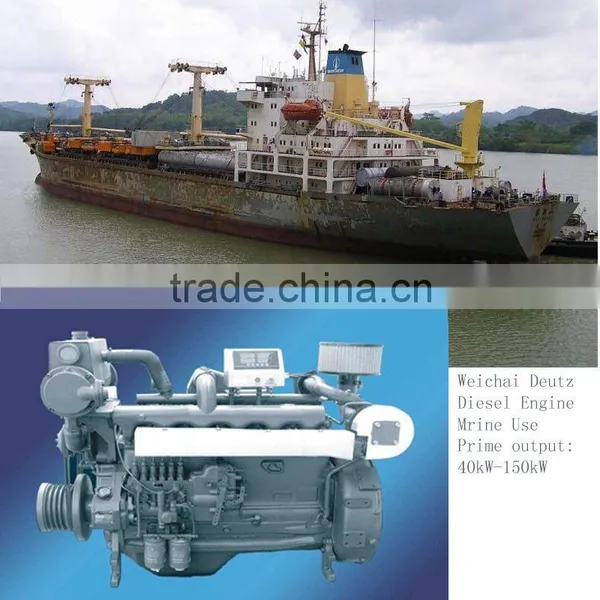

2014hot Sale! Marine Diesel Engines With Gearbox Prices

Name: 2014hot Sale! Marine Diesel Engines With Gearbox Prices
Brand: Weichai
SKU: 124784757
Availability: InStock

2014hot Sale! Marine Diesel Engines With Gearbox Prices thumbnail-1

2014hot Sale! Marine Diesel Engines With Gearbox Prices photo-1

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Usage:

Boat

Fuel:

Diesel

Contact Supplier Request Quote Chat Now

Weifang U-Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Usage Boat

Fuel Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Water-cooled

Start Electric Start

Place of Origin Shandong, China

Brand Name Weichai

Model Number CW200

Certification ISO/CE/CCS/ZY/BV

Warranty 1 year, 1year/1500 hours

After-sales Service Provided Overseas service center available

Weichai CW200 series marine diesel engine

Specifications for CW200 series marine diesel engine

Model	CW6200ZC/XCW6200ZC						CW8200ZC/XCW8200ZC				CW12V200ZC
Type	Inline, four-stroke, direct injection, turbocharged inter-cooled, without reversion										V type, four-stroke, direct injection, turbocharged inter-cooled, without reversion
Number of cylinder	6						8				12
Bore/Stroke (mm)	200/270						200/270				200/270
Rated speed (r/min)	750	900	1000	1000		1000	750	900	1000	1000	750	900	1000
Rated output (kW/PS)	450/612	540/734	600/816	698/950		828/1126	600/816	720/979	800/1088	926/1260	900/1224	1080/1469	1200/1632
Maximum speed (r/min)	774	929	1032	1032		1032	774	929	1032	1032	774	929	1032
Maximum output (kW/PS)	495/673	594/808	600/898	759/1030		911/1239	660/898	792/1077	880/1167	1014/1380	900/1224	1180/1605	1320/1795
Mean effective pressure (MPa)	1.415	1.415	1.415	1.642		1.95	1.415	1.415	1.415	1.641	1.415	1.415	1.415
Mean piston speed (m/s)	6.75	8.1	9	9		9	6.75	8.1	9	9	6.75	8.1	9
Minimum steady speed under load (r/min)	400
Fuel oil consumption (g/kW.h)	≤200
Oil cunsumption (g/kW.h)	≤1
Rotation direction of crankshaft	Seen from the flywheel end to free end clockwise
Starting method	Air motor
Cooling method	Closed fresh water cooling, Opened seawater cooling
Libricating method	Pressure lubricating
Overall dimension(mm)	290014802100				287112582085		322615272100				393317002600
Net weight(kg)	6500						7800				11800
Note: Rated working condition: Ambient temperature25°C; Atmospheric pressure0.1MPa; Inlet water temperature of intercooler25°C. Marine working condition: Ambient temperature 45°C; Atmospheric pressure 0.1MPa; Inlet water temperature of intercooler32°C.Special engines can supply according to customer’s request.
