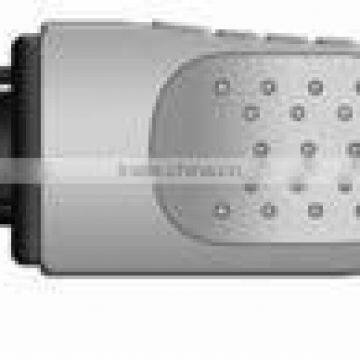

Artema Diascope G2 Pediatric General/Rectal Temperature Probe/ Sensor 3m Round 10Pin

FOB Price

USD $8 - $15 / Piece

1 Piece(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shenzhen/Hongkong/Guangzhou
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Properties:	Other, Medical Materials & Accessories	Type:	Other, Surgical Supplies	Brand Name:	Artema, Artema
Model Number:	BTD-05B	Place of Origin:	Guangdong, China

Product Description

Artema 2.25K Pediatric General Temperature Probe/ Sensor for 3m, Round 10Pin

Product Number	BTD-05B
Cable	PVC 3M
Color	Dark Grey
accuracy	0.5%
Resistor	2.25KΩ
Connector	Round 10Pin>>diameter 3.0 tip
Connector Material	Nylon and Medical PVC with Gold-plated Pins
Specification	For Adult or Pediatric ; For Skin or Rectal

25℃ Resistor Acceptable Accuracy：±0.5%
Temperature	MAX（Ω）	Stardard （Ω）	Min（Ω）
0	7477.62	7352.89	7230.07
1	7102.68	6987.77	6874.54
2	6748.74	6642.91	6538.58
3	6414.51	6317.10	6221.02
4	6098.80	6009.19	5920.74
5	5800.48	5718.09	5636.73
6	5518.37	5442.68	5367.88
7	5251.62	5182.12	5113.42
8	4999.30	4935.55	4872.49
9	4760.56	4702.13	4644.30
10	4534.60	4481.10	4428.12
11	4320.65	4271.72	4223.24
12	4118.03	4073.33	4029.01
13	3926.06	3885.28	3844.83
14	3744.14	3706.99	3670.12
15	3571.68	3537.89	3504.34
16	3408.14	3377.47	3346.99
17	3253.01	3225.22	3197.59
18	3105.82	3080.70	3055.70
19	2966.11	2943.46	2920.91
20	2833.47	2813.11	2792.82
21	2707.48	2689.23	2671.04
22	2587.80	2571.52	2555.27
23	2474.09	2459.62	2445.16
24	2366.02	2353.21	2340.42
25	2263.26	2252.00	2240.74
26	2167.42	2155.70	2143.98
27	2076.17	2064.04	2051.93
28	1989.25	1976.78	1964.33
29	1906.44	1893.67	1880.94
30	1827.52	1814.51	1801.54
31	1752.29	1739.07	1725.91
32	1680.54	1667.16	1653.85
33	1612.11	1598.61	1585.17
34	1546.82	1533.22	1519.70
35	1484.52	1470.85	1457.28
36	1425.19	1411.49	1397.89
37	1368.54	1354.82	1341.22
38	1314.42	1300.72	1287.14
39	1262.73	1249.06	1235.51

Compatible machines

It can be used for monitors with high accuracy and fast data.

Artema: Diascope G2.

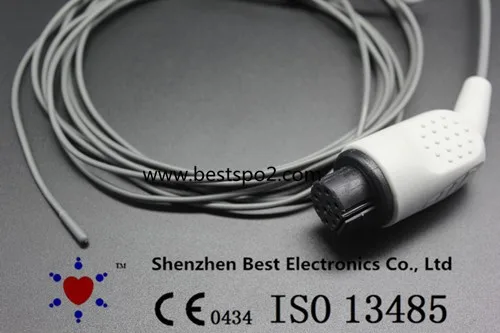

Detailed Pictures

Certificates

ISO 13485 DNV CE DNV

ROHS Certificate ROHS Report

Biocompatiblity Report Biocompatiblity Report

Vitro Cytotoxicity Test Skin Sensitization Test

Biocompatiblity Report Import and Export License

Skin Irritation Test

Record of Foreign Trade Operators Entry and exit quarantine enterprises

for the record

Warranty

We guarantee that all our products will work at the best of their ability,free of non-artificial damage within the following warranty period:

Reusable SpO2 Sensor	12 Months
SpO2 Adapter Cable	6 Months
ECG Cable and Leadwires	6 Months
EKG Cable and Leadwires	6 Months
IBP Cable	12 Months
Temperature Probe	6 Months
Reusable NIBP Cuff and Hose Tube	6 Months
Disposable NIBP Cuff and SpO2 Sensor	If no faults are found while using at the first time, there is no warranty.

Problematic Products could be reparied or exchagned when they are returned to Best fatory,provided that failures are found within warranty period.If no faults are found by Best or items are out of warranty,the customers should pay for the shipping cost.
