Specifications
Zebra P430i1.Innovative angled card feeder design reduces card jams
2.Dual-sided full color or monochrome

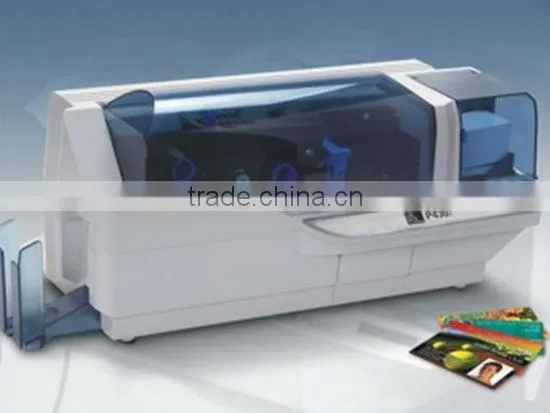

Zebra P430i
Standard Features
- 16 character LCD operator display
- Windows drivers: Windows 7 and Vista (32/64 bit); 2000, XP and Server 2003 (32/bit)
- Innovative angled card feeder design reduces card jams
- Dual-sided full color or monochrome
More Standard Features
- 300 dpi (11.8 dots/mm) print resolution
- Two year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
- One year warranty applies to printers shipped prior to January 1, 2007
Printer Specifications
Single or Dual-sided Printing
Color Capability: Full Color, Monochrome
Print Method: Direct-to-Card Dye Sublimation
Lamination: None
Card Feeder: Integrated Card Feeder
Card Feeder/Hopper Capacity
- Card feeder capacity: 100 cards (30 mil)
- Card output hopper capacity: 100 cards (30 mil)
- High capacity card feeder: 220 card (30 mil)
Memory: 20 MB memory (standard)
Print speed: 102 cards/hr (full color, dual-sided), 130 cards/hr (full color, single-sided)
Media Characteristics
Ribbons
- Zebra True Colours iSeries intelligent technology media
- YMCKOK: 170 images/roll
- YMCKO: 200 and 330 images/roll
- 1/2 Panel YMC Full KO: 450 images/roll
- KdO: 500 images/roll
- KrO: 500 images/roll
- Overlay varnishes: clear and hologram: 350 images/roll
- Monochrome ribbon: 1500 and 1000 images/roll
Operating Characteristics
Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 23°F to 158°F (5°C to 70°C)
Electrical: 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
Ventilation: Free air
Agency approvals: FCC Class A, CE, UL, CUL, CCC approved
Physical Characteristics
Width: 26" (660 mm)
Height: 10.1" (256 mm)
Depth: 9.4" (239 mm)
Weight: 20 lbs (9.1 kg)
Related Products
Card Encoding Options
- UHF Gen 2 RFID encoder
- Smart card contact ISO 7816 encoder (30 mil cards only)
- MIFARE/DESFire smart card contactless encoder (30 mil cards only)
- Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)
Options
- Built-in 10/100 Ethernet
- High capacity card feeder: 220 cards (30 mil cards)
- Extended warranty programs
- Hot swap warranty programs (USA only)
Communication and Interface Capabilities
- USB 1.1 (USB 2.0 compatible) cable included (standard)
- Built-in 10/100 Ethernet (optional)
Bar Codes/Symbologies
Linear Code 39
Other Symbologies via Windows Driver
2-D PDF 417
Code 128 B & C
EAN-8 and EAN-13
Interleaved 2-of-5
UPC-A
Fonts and Graphics True Type fonts via Windows drivers
Card Detail
Card Types
- PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
- Magnetic stripe ISO 7811
- Smart card contact and contactless
Card Size: CR80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
Card Thickness: 10 - 60 mil
