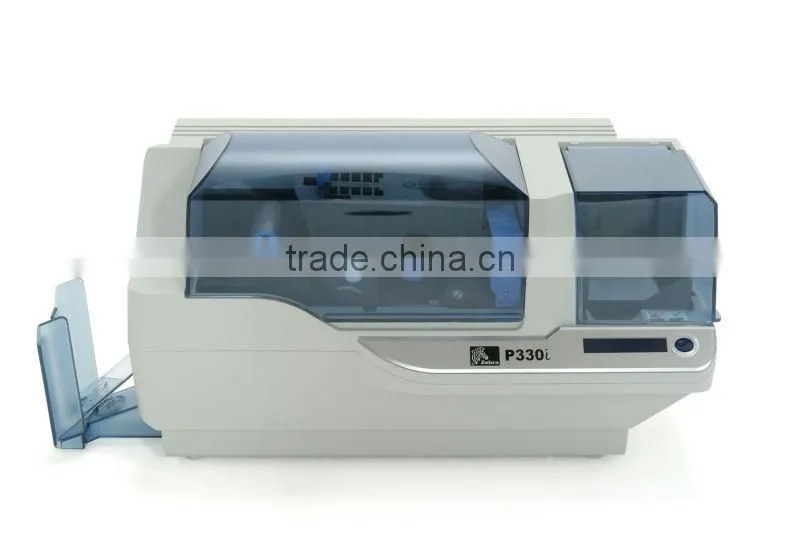

Zebra P330i card printers/Performance class card printers

More Standard Features

• 300 dpi (11.8 dots/mm) print resolution
• Zebra True Colours iSeries intelligent technology media
• Two year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
• One year warranty applies to printers shipped prior to January 1, 2007

Printer Specifications

Single or Dual-sided Printing: Single-Sided
Color Capability: Full Color, Monochrome
Print Method: Direct-to-Card Dye Sublimation
Lamination: None
Card Feeder: Integrated Card Feeder

Card Feeder/Hopper Capacity

• Card feeder capacity: 100 cards (30 mil)
• Card output hopper capacity: 100 cards (30 mil)
• High capacity card feeder: 220 cards (30 mil) (optional)



Memory: 20 MB memory (standard)
Print speed: 144 cards/hr (full color, single-sided)
692 cards/hr (monochrome black)

Media Characteristics

Ribbons

• Zebra True Colours iSeries intelligent technology media
• Monochrome: 1500 and 1000 cards/roll
• KdO and KrO: 500 cards/roll
• YMCK: 400 cards/roll
• YMCKO: 200 & 330 cards/roll
• 1/2 panel YMCKO: 450 cards/roll
• Overlay varnishes (clear and hologram): 350 cards/roll

Operating Characteristics

Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non condensing
Storage humidity: 20% to 70% non-condensing
Electrical: 100-240 Volts AC, 50-60 Hz (auto switching)
Ventilation: Free air
Agency approvals: FCC Class A, CE, UL, CUL, CCC approved

Physical Characteristics

Width: 18.2" (462 mm)
Height: 10.1" (256 mm)
Depth: 9.4" (239 mm)
Weight: 15.5 lbs (7.0 kg)

Related Products

Card Encoding Options

• UHF Gen 2 RFID encoder
• Smart card contact station (30 mil cards only)
• Smart card contact encoder ISO 7816
• MIFARE/DESFire contactless smart card encoder (30 mil cards only)
• Magnetic encoder, 3 track HiCo/LoCo (30 mil cards only)



Options

• Built-in 10/100 Ethernet
• High capacity card feeder - 220 cards (30 mil)
• Extended warranty program
• Hot swap warranty program (USA only)



Communication and Interface Capabilities

• USB 1.1 (USB 2.0 compatible) cable included (standard)
• Built-in 10/100 Ethernet (optional)

Bar Codes/Symbologies

Linear Code 39
Interleaved 2-of-5
Code 128 B & C
UPC-A
EAN-8 and EAN-13
2-D PDF 417
Other Symbologies via Windows Driver

Fonts and Graphics: True Type fonts via Windows drivers

Card Detail

Card Types

• PVC, PVC Composite, UHF Gen 2 RFID, Adhesive backed
• Magnetic stripe - ISO 7811
• Smart card contact and contactless

Card Size: CR-80 - ISO 7810, 2.12" (54 mm) X 3.385" (86 mm)
Card Thickness: 10 - 60 mil
