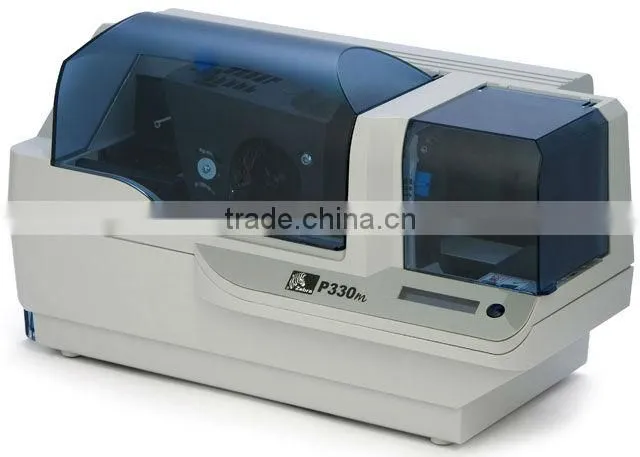

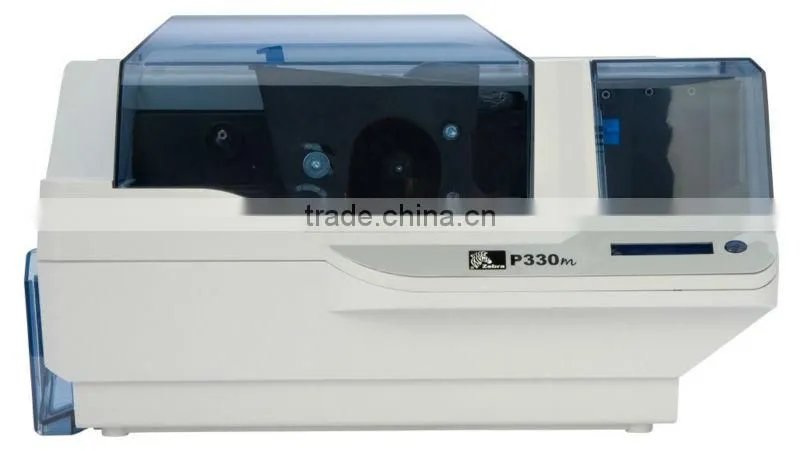

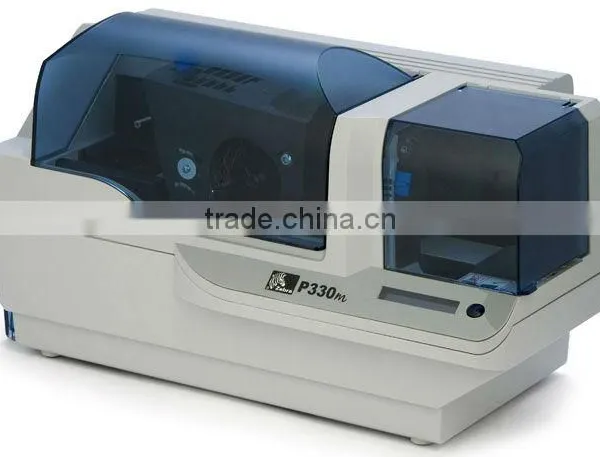

Help CenterZebra P330m Card Printers/Performance Class Card Printers
Related Products
-
Zebra P330i Card Printers/Performance Class Card PrintersNegotiableMOQ: 1 Set -
Zebra P330i Card Printers/Performance Class Card PrintersNegotiableMOQ: 1 Set
-
Zebra P110i Card PrintersNegotiableMOQ: 1 Set
-
Zebra P110i Card PrintersNegotiableMOQ: 1 Set
-
Zebra P120i Card PrintersNegotiableMOQ: 1 Set
Specifications
card printers1.16 character LCD operator display
2.Innovative angled card feeder design
card printers
Standard Features
- Monochrome thermal transfer printing
- Windows drivers: Windows 7 and Vista (32/64 bit); 2000, XP, Server 2003 (32 bit)
- 16 character LCD operator display
More Standard Features
- Innovative angled card feeder design minimizes card jams
- 300 dpi (11.8 dots/mm) print resolution
- Two year warranty on card printer and original printhead (unlimited passes) - if shipped on or after January 1, 2007
- One year warranty applies to printers shipped prior to January 1, 2007
Printer Specifications
Single or Dual-sided Printing: Single-sided
Color Capability: Monochrome
Print Method: Direct-to-Card Dye Sublimation
Lamination: None
Card Feeder: Integrated Card Feeder
Card Feeder/Hopper Capacity
- Card feeder capacity: 100 cards (30 mil)
- Card output hopper capacity: 100 cards (30 mil)
- High capacity card feeder: 220 cards (30 mil) (optional)
Memory: 20 MB memory (standard)
Print speed: 692 cards/hour (monochrome black)
Media Characteristics
Ribbons
- Zebra True Colours monochrome ribbon
- Monochrome ribbon: 1500 and 1000 images/roll
- Overlay varnishes (clear and hologram): 350 images/roll
Operating Characteristics
Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 158° F (70° C)
Operating humidity: 20% to 65% non condensing
Storage humidity: 20% to 70% non-condensing
Electrical: 100 - 240 Volts AC, 50 - 60 Hz (auto switching)
Ventilation: Free air
Agency approvals: FCC Class B, CE, UL, CUL approved
Physical Characteristics
Width: 18.2" (462 mm)
Height: 10.1" (256 mm)
Depth: 9.4" (239 mm)
Weight: 15.5 lbs (7 kg)
Related Products
Card Encoding Options
- Smart card contact station (30 mil cards only)
- Contactless encoding
- Magnetic encoder (20-40 mil cards only)
Options
- Built-in 10/100 Ethernet
- High capacity card feeder: 220 cards (30 mil)
- Extended warranty program
- Hot swap warranty program (USA only)
Communication and Interface Capabilities
- USB (USB 2.0 compatiible) cable included (standard)
- Built-in 10/100 Ethernet (optional)
Bar Codes/Symbologies
Linear Other Symbologies via Windows Driver
2-D PDF 417
Code 128 B & C
EAN-8 and EAN-13
Code 39
Interleaved 2-of-5
UPC-A
Fonts and Graphics: True Type fonts via Windows™ drivers.
Card Detail
Card Types
- PVC, PVC Composite, Adhesive backed
- Magnetic stripe - ISO 7811
- Smart card contact and contactless
Card Size: CR-80 - ISO 7810, 2.12" (54 mm) X 3.385" (86 mm)
Card Thickness: 10 - 60 mil
