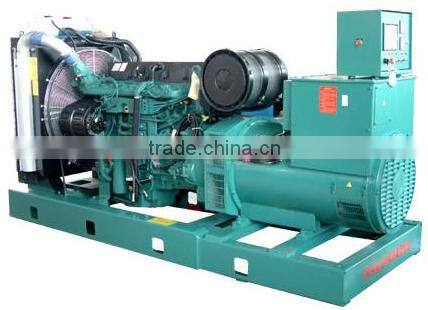

300kw 60hz volvo diesel power generator set with tad530ge diesel set with tad530ge diesel engine
| Prime power | It is the continuous operation power .Under the power changing work environment it allows 10% 1hour overload every12 hours . |
| Standby Power | The biggest power the generator can load in an emergency situation. |
Standard :
SmartGen 6110 UC Controller with 78 programmes
Aluminum Hand Pumps
8 Hours base fuel tank 75% Load
Emergency Stop buttom
SWG Maintenance - free sealed battery ( Nanometer High-energy)
Optional :
silent type : 77DB in one meter
Other famous chinese brand brushless alternator such as shanghai stamford,Godlike etc
ATS with SmartGen HGM3120UC (AMF) controller
Three wheel trailer diesel generator set ( <30km/h)
Overall description of 300kw 60hz volvo diesel power generator set with tad530ge diesel set with tad530ge diesel engine
1,Diesel generator set | ||
Genset model | HF-300GF | |
Rated power | 300kw 375kva | |
Rated voltage | 230v/400v (adjustable) | |
Rated frequency | 50 HZ/60 HZ 1500rpm/1800rpm | |
Power factor | 0.8 (lagging) | |
The regulating rate of steady voltage | ±0.5 | |
Overwall dimensions mm | 2600*1100*1530 | |
| Net weight kg | 1900 | |
Diesel engine | Brand | powered by volvo engine |
Model | TAD1343GE | |
Cylinder No. | 6 | |
Bore *stroke (mm) | 131*150 | |
Displacement (L) | 12.13 | |
Fuel consumption g/kw.h | 206 | |
Rotating speed rpm | 1500/1800 | |
Cycle | 4 stroke | |
Speed governor | Electrical | |
Cooling system | Closed circle water-cooled | |
Starting method | DC 24V Electrical starting | |
Alternator | Brand | Qianghui ,Lingyu Godlike ,Stamford |
Number of phase | 3 | |
Connecting type | Three phase and four lines | |
Number of bearing | 1 | |
Grading protection | IP22 | |
Exciter type | Brushless AVR automatic voltage regulating | |
Insulation Class | H degree | |
Speed governor | Electrical | |
Altitude | 1000 m | |
| The main components of the diesel genset | ||
| 1,powered by VOLVO diesel engine | 1, alternator ( selectable ) | 3,Control panel (selectable) |
The other type of the volvo diesel generator
| Mode | power kw | power kva | current A | Diesel mode | cylinder no. | bore*stroke mm | ltrs | overall dimension mm | net weight kg |
| HF68 | 68 | 85 | 122.4 | TD530GE | 4 | 108*130 | 4.76 | 2100*720*1380 | 1030 |
| HF80 | 80 | 100 | 144 | TAD531GE | 4 | 108*130 | 4.76 | 2100*960*1450 | 1150 |
| HF100 | 100 | 125 | 180 | TAD532GE | 4 | 108*130 | 4.78 | 2200*1000*1450 | 1200 |
| HF128 | 128 | 160 | 216 | TAD731GE | 6 | 108*130 | 7.15 | 2500*1020*1450 | 1500 |
| HF150 | 150 | 187.5 | 270 | TAD732GE | 6 | 108*130 | 7.15 | 2520*1060*1530 | 1700 |
| HF160 | 160 | 200 | 320 | TAD733GE | 6 | 108*130 | 7.15 | 2520*1060*1530 | 1700 |
| HF200 | 200 | 250 | 360 | TAD734GE | 6 | 108*130 | 7.15 | 2600*1100*1530 | 1950 |
| HF260 | 260 | 325 | 504 | TAD1341GE | 6 | 131*158 | 12.13 | 3100*1150*1600 | 2550 |
| HF300 | 300 | 375 | 540 | TAD1343GE | 6 | 131*150 | 12.13 | 3100*1150*1600 | 2550 |
| HF320 | 320 | 400 | 580 | TAD1344GE | 6 | 131*150 | 12.13 | 3100*1150*1600 | 2550 |
| HF360 | 360 | 450 | 630 | TAD1345GE | 6 | 131*150 | 12.13 | 3100*1150*1600 | 2550 |
| HF400 | 400 | 500 | 720 | TAD1641GE | 6 | 144*165 | 16.12 | 3200*1150*1800 | 3400 |
| HF450 | 450 | 562.5 | 792 | TAD1642GE | 6 | 144*165 | 16.12 | 3300*1150*1800 | 3500 |
| HF500 | 500 | 625 | 900 | TAD1643GE | 6 | 144*165 | 16.12 | 3350*1350*1950 | 3600 |
The optional type of this volvo generator you can choose
The silent type :
The trailer type :
The details of the silent type :
Package
1, With packaging Film
2, With wooden box
3,We also respect our customers ' recommendance .
Beside Powered by VOLVO engine type ,there are many other types with different or same power .And all the generator have open type silent type and mobile type .
Before shipping ,we adjust the machine to make sure it works well .
During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .
The warranty time is one year almost 1000 using hours .
If the products have some problems we will send the parts free and instruct you how to repair
it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
1 ,Q : What kind of generator set do you supply ?
A : The generator set we supply used diesel and we only supply diesel generator set. diesel engine ,generator alternator .
2, Q : What kind of the engine brands and alternator brands can your provide ?
A : Many engine brands : such as the generator engine powered by Perkins ,by Cummins Volvo,,Deutz,Doosan,Yuchai,Shangchai,Weichai etc . Many alternator brands : wuxi Standford,shanghai standford ,Goldlike,Leroysomer etc.
3,Q : What Kind of alternator do you usually match the generator? what if i have special requirement about the alternator match with the generator ?
A : We usually match the generator with Standford or Goldlike . If you have special request we would like to take your advice .
4,Q : Can you accept OEM ?
A : Yes, we can accept OEM.
5, Q : what's your delivery time ?
A : It depends,usually ten days after receiving the deposit
6, Q : Beside open diesel generator ,can you provide silent type and trailer type ?
A : Yes, open ,silent ,trailer type we all can provide . and our silent type is with high quality ,it can be very quiet . 77DB with in one meter.
7,Q : what kind of payment can you accept ?
A : Usually we accept T/T 30% in advance,the balance 70% before shippment . but if you want T/T 100% we won't refuse . You can also choose L/C ,west Union.
8,Q : I want to buy a diesel generator set ,but i am still confused about the power and type ,can i contact you ?
A : Yes ,of course,you can contact me on line or by email at any time . i would be appreciate to help .
