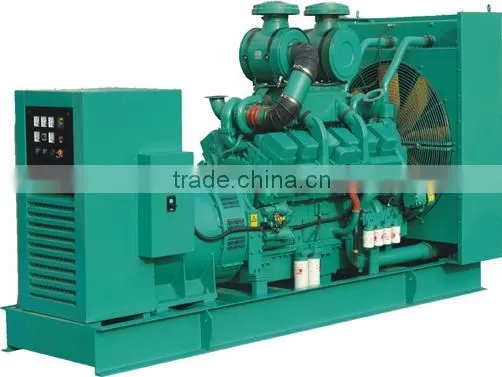

68 kw volvo diesel generator set
Volvo corporation is the Swedish biggest industrial enterprise and one of the global 500 strongest corporation . Quality ,safety and environmental friendly are the three core concept of Volvo products . And it shows obviously in the Volvo engine which runs from 68kw to 500kw . And with the help of generator set parallel system cabinet ,the bigger capacity is possible .
1,Diesel generator set | |||
Genset model |
HF-68GF |
||
Rated power |
68KW/85KVA |
||
Rated voltage |
230v/400v (adjustable) |
||
Rated frequency |
50 HZ/60 HZ |
||
Power factor |
0.8 (lagging) |
||
The regulating rate of steady voltage |
±0.5 |
||
Open sets dimension (l w h) mm |
2100*720*1380 |
||
Weight kg |
1030 |
||
Disel engine |
Brand |
Volvo |
|
Model |
TD520GE |
||
Cylinder No. |
4 |
||
Bore *stroke (mm) |
108*130 |
||
Displacement (L) |
4.76 |
||
Fuel consumption g/kw.h |
213 |
||
Rotating speed rpm |
1500/1800 |
||
Cycle |
4 stroke |
||
Speed governor |
Electrical |
||
Cooling system |
Closed circle water-cooled |
||
Starting method |
DC 24V Electrical starting |
||
Alternator |
Brand |
Qianghui ,Lingyu Godlike ,Stanford |
|
Number of phase |
3 |
||
Connecting type |
Three phase and four lines |
||
Number of bearing |
1 |
||
Grading protection |
IP22 |
||
Exciter type |
Brushless AVR automatic voltage regulating |
||
Insulation Class |
H degree |
||
Speed governor |
Electrical |
||
Altitude |
1000 m |
||

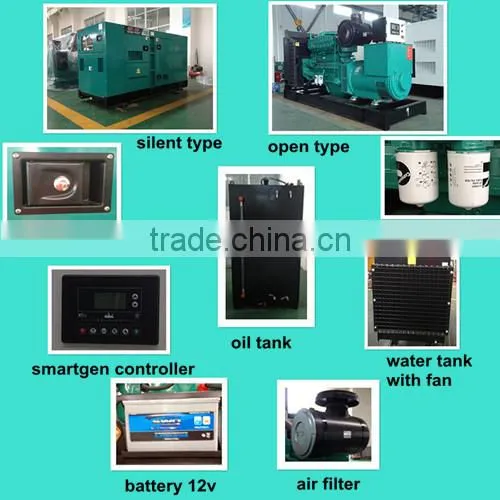

The main components of the diesel genset | |||
1,volvo diesel engine |
1, alternator ( selectable ) |
3,Control panel (selectable) |
|
Usually it only need 10days after receiving the deposit ,but it always depends on the quantity and type you order .

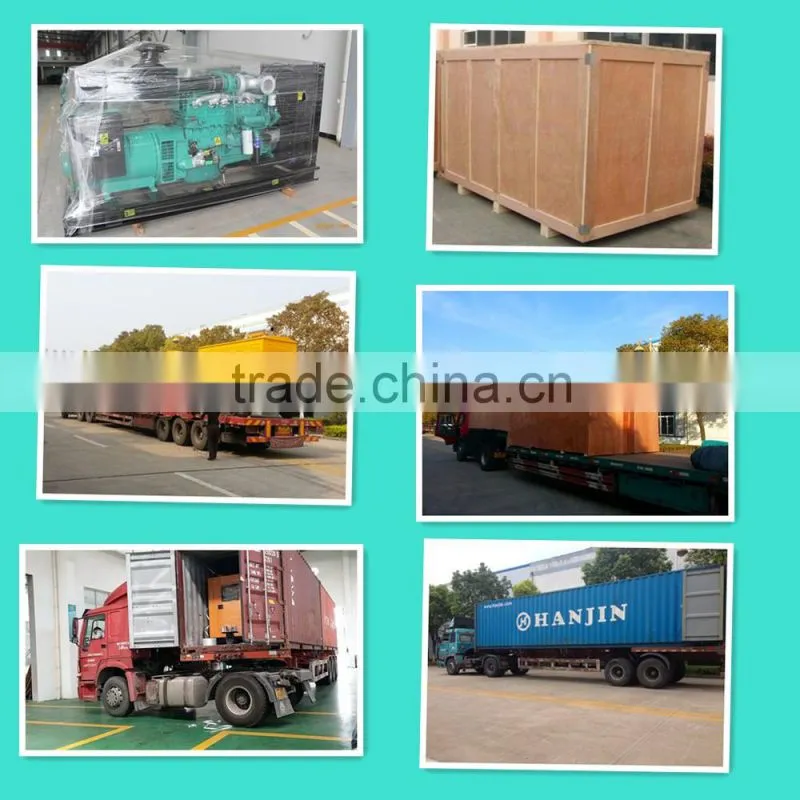

All the open type and silent type can be packaged by wooden cases and PE film . We also package the products as you request .
Beside Volvo type ,there are many other types with different or same power . And all the generator have open type ,silent type and mobile type .
Before shipping ,we adjust the machine to make sure it works well .
During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .
The warranty time is one year almost 1000 using hours .
If the products have some problems we will send the parts free and instruct you how to repair it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
