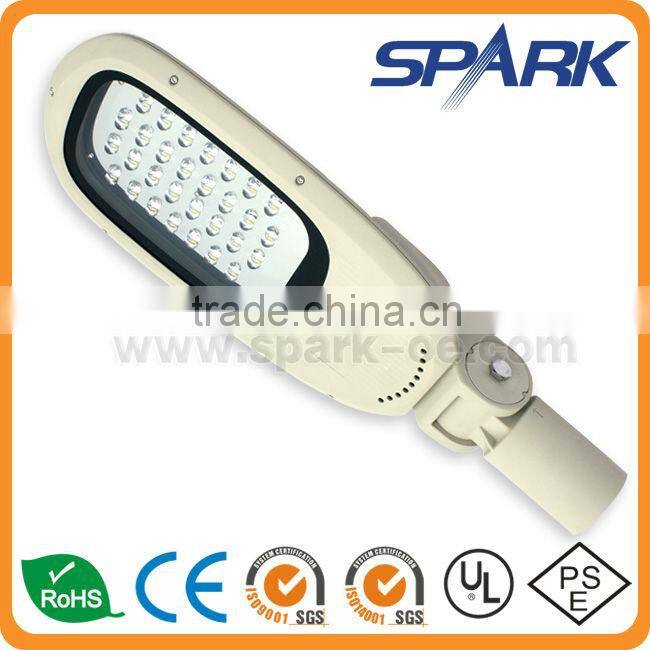

High Quality Mini LED Street Light 5 Years Warranty
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
Cree & Philips Lumileds
Input Voltage(V):
85~305 VAC
Lamp Power(W):
48
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
90W High Pressure Sodium Lamp,Single Lens LED Street LightsNegotiableMOQ: 2 Pieces -
70W Solar Wind Hybrid LED Street LightNegotiableMOQ: 2 Pieces
-
Spark High Power Signle Lens LED Street Light With CE ROHS PSENegotiableMOQ: 2 Pieces
-
35W Mini LED Street LightNegotiableMOQ: 2 Pieces
-
High Effciency LED Street Light 60WNegotiableMOQ: 2 Pieces
LED Light Source
Cree & Philips Lumileds
Input Voltage(V)
85~305 VAC
Lamp Power(W)
48
Lamp Luminous Flux(lm)
2250
Lamp Luminous Efficiency(lm/w)
75
Color Temperature(CCT)
Pure White
Working Temperature(℃)
-40, +50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP66
Certification
CCC, CE, CQC, EMC, FCC, LVD, PSE, UL, VDE
Warranty(Year)
5
Place of Origin
Guangdong, China
Brand Name
SPARK
Model Number
SPL-M30W
- Light source: Philips Lumileds LED or Cree LED
- Energy saving over 70%
- Low power consumption, long life of 50000+ hrs
- Rectangular beam angle, suitable for roadway illumination
- Isolated power supply with NS semiconductor and Japan Rubycon capacitor
- Light control, temperature control, time-phased dimming available
- CE & RoHs for all models, UL for some models(applied by customers)
- 5 years warranty, longer warranty available with price adjust
- Lumen depreciation less than 6.8% after 6000 hours aging test
| Model No. | SPL-M30W | |
| Equivalent | 70W-100W High Pressure Sodium Lamp | |
| LED Light Source | 14 × 1W (Philips Lumileds/CREE) LED | |
| Lamp Rated Total Power | 35W | |
| Power Efficiency | 85% | |
| LED Luminous Efficiency | 107-122 lm/w | |
| Lamp Rated Luminous Flux | 2,250lm | |
| Lamp Rated Luminous Efficiency | 75lm/W | |
Central Illumination & Effective Area | 4M Height | 13m×5m ≥42LUX |
| 6M Height | 20m×8m ≥18LUX | |
| 8M Height | 26m×10m ≥10LUX | |
| Color Rendering Index(CRI) | Ra>70 | |
| Color Temperature(CCT) | Cool white: 5000-6300K Pure white: 3700-5000K Warm white: 2700-3300K | |
| Beam Angle | 130° x 65° | |
| Light Distribution Curve(Beam Pattern) | Asymmetric (Bat Wing) / Rectangular Beam | |
| Input Voltage | 90-305VAC | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | 0.95 | |
| Total Harmonic Distortion(THD) | < 20% | |
| Storage Temperature | -40°C--+80°C | |
| Working Temperature | -40°C--+50°C ; 10%-90%RH | |
| Junction Temperature(Tj) | 60°C ± 10%(ta+25°C) | |
| Light Body and Lampshade Material | Aluminum Alloy and PC | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP66 | |
| Net Weight | 6.3kg | |
| Gross Weight | 7.3kg | |
| Package Size (mm) | 698(L)×294(W)×145(H) (1 PC) | |
