Specifications
LDPE Pipe Extrusion Line/Pipe Production LineLarge output
High precision
competive price
High quality

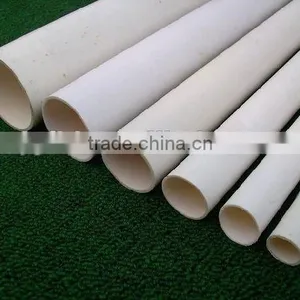

Plastic Hdpe water pipe extrusion machine
Machine Description
This extruder equipped with barrier unit and mixing structure, the barrel is new style grooves.
All of these offer good plastification and mixing effect.

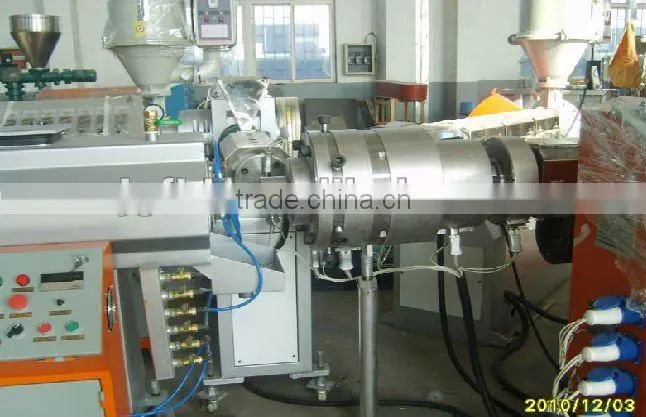

1.Special design of basket die head of for HDPE large diameter pipe with thick wall offer lower
temperature, good mixing, lower pressure of cavity, and stable production.
2.Special design for sizing and cooling system by using film and water to cool HDPE material,
which can fit for the requirement of HDPE(PP, ABS). And the design can ensure the stability of diameter and roundness when producing
the pipe with thick wall.

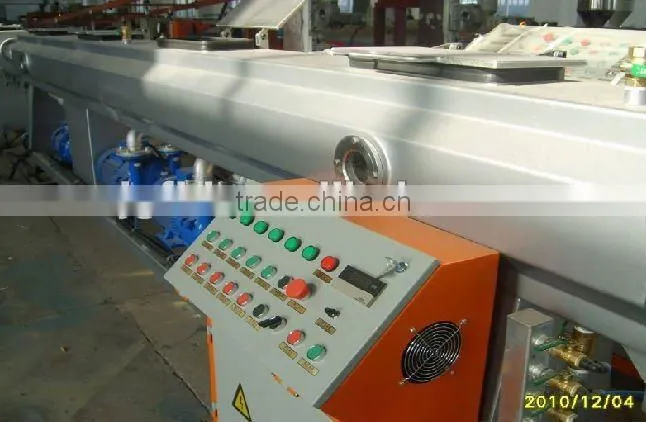

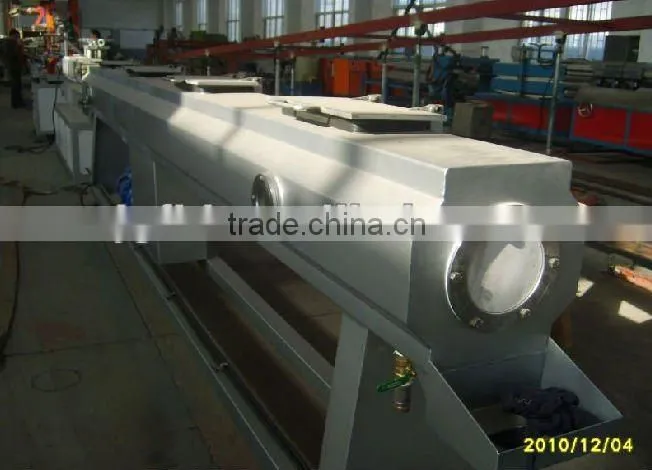

3.Special design vacuum sizing tank can ensure the stability of size and roundness, Speed
controllers are used in extruder, haul-off to offer stability and precision.
Main Advantage

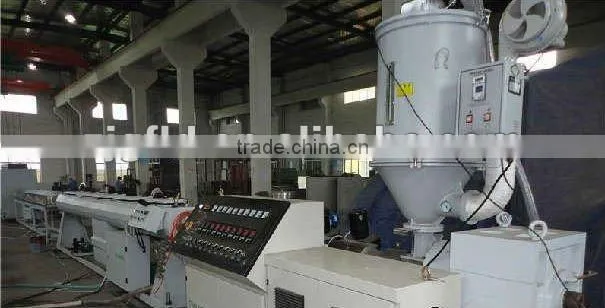

1. Single screw extruder, very suitable to process PE resin with high capacity.
2. The production line adopts reasonable design, absorbing safe producing technology,
Obtaining CE certificate.
3. Diameter range is 63mm-800mm, which can be changed into inch standard to meet clients special requirement.
Technical Parameters Tell your pipe diameter??
Model |
Screw Dia |
L/D |
Pipe Range |
Motor Power |
Total Power(kw) |
Line length(m) |
PE-63 |
65mm |
33:1 |
16-63mm |
37kw |
80 |
24 |
PE-110 |
65mm |
33:1 |
75-110mm |
55kw |
110 |
30 |
PE-160 |
75mm |
33:1 |
90-160mm |
90kw |
150 |
32 |
PE-250 |
75mm |
33:1 |
110-250mm |
110kw |
200 |
42 |
PE-315 |
90mm |
33:1 |
160-315mm |
160kw |
240 |
44 |
PE-400 |
90mm |
33:1 |
200-400mm |
185kw |
300 |
50 |
PE-500 |
120mm |
33:1 |
250-500mm |
280kw |
350 |
56 |
PE-630 |
120mm |
33:1 |
315-630mm |
280kw |
480 |
56 |
PE-800 |
150mm |
33:1 |
400-800mm |
315kw |
550 |
72 |
List of the line :
NO. |
Equipment |
Qty. |
1 |

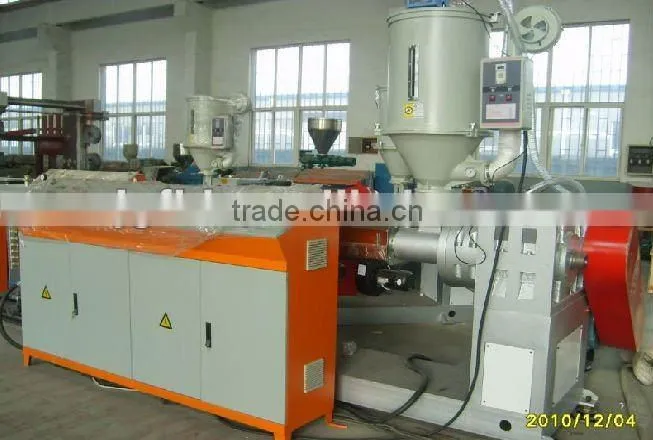

single screw extruder |
1set |
2 |
sign extruder |
1set |
3 |
mould |
1unit |
4 |
vacuum sizing water tank |
1set |
5 |
spraying cooling water tank |
1set |
6 |

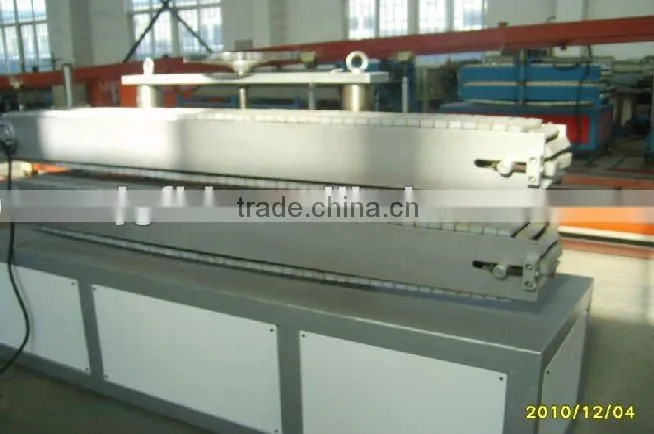

haul-off unit |
1set |
7 |

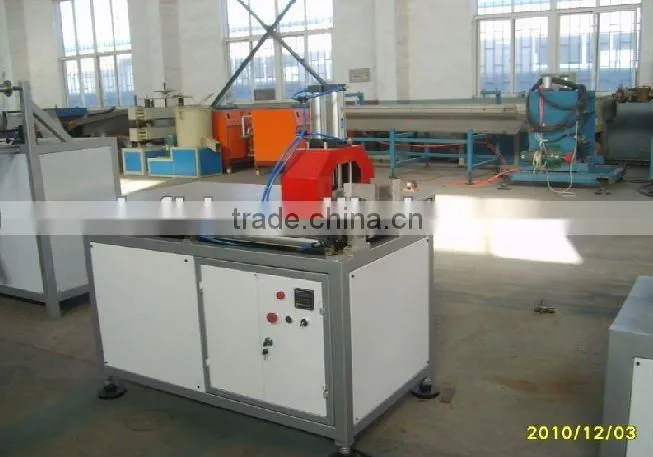

cutter |
1set |
8 |
double-position coiler |
1unit |
9 |
electric control device |
1set |
10 |
spare part |
1set |
If you want to get more information about our product,please contact us in anytime.we will provide a competive price for you.
