Specifications
PVC double pipe extrusion machine1.High output,low consumption.
2.Advanced design, reliable performance.
petitive price

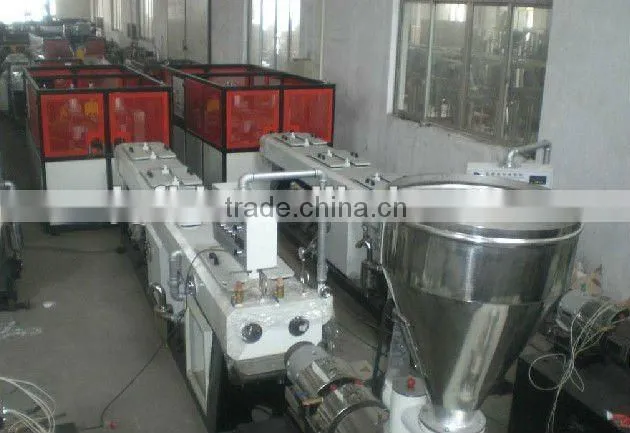

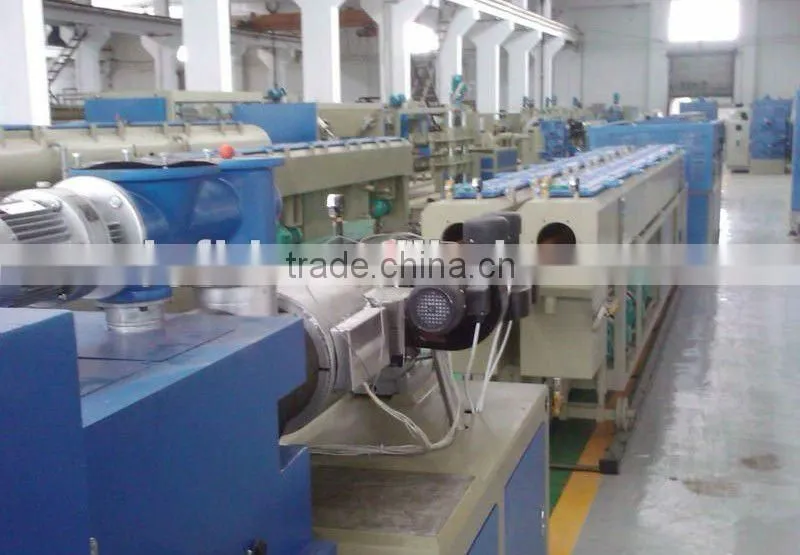

SJSZ Series PVC double pipe production line
1.PVC double pipe production line is mainly used for producing PVC conduit pipe,diameter from 16mm to 40mm,16mm to 63 mm.
2.It consists of SJSZ series extruder,double pipe mold,double pipe vacuum tank,double pipe drawing and cutting machine,stacker.
3.It can produce two pipes at one time to achieve high production effiency.
4.The screw of the host extruder adopt the oil cooling system,barrel temperature control though the air cooling and ring heater.
5.The host extruder using the electrical control system,ABB speed governor,Japanese RKC temperature controller,SIMENS contactor and so on.
6.Our company may allocate the special installation for the manufacture of the inner wall spiral coil and coreply blister tube set according to the clients requirements.
7. The machine units can produce the pipe scope:16-63mm
The Technical Parameter
Pipe range |
16-40mm |
16-63mm |
Extruder |
SJZ51/105 |
SJZ65/132 |
Extruder power |
18.5kw |
37kw |
Extrusion capacity |
120kg/h |
250kg/h |
Max. Production speed |
2 x 8m/min |
2 x 10m/min |
Main machine
Item |
Machine |
Quantity |
1 |
Spring loader |
1 set |
2 |
Conical Twin-Screw Extruder |
1 set |
3 |
Double-extrusion die and head and calibrators |
complete set |
4 |
Double Vacuum Calibration tank |
1 set |
5 |
Printer |
2 sets |
6 |
Double Hauling & Cutting Machine |
1 set |
7 |
Double Pipe stacker |
1 set |
