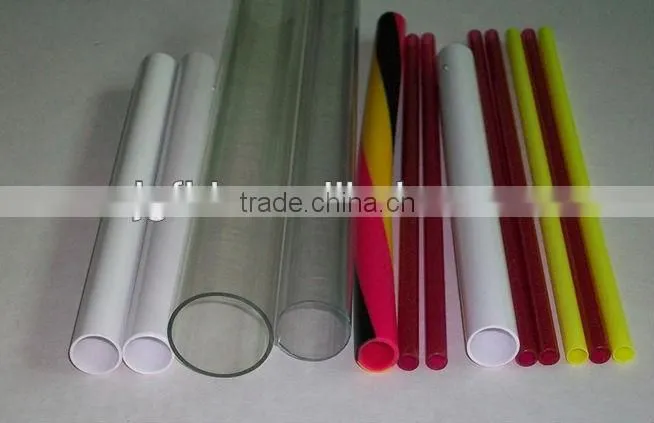

Help CenterPVC, CPVC Plastic Pipe Extrusion Line
Related Products
-
PVC Double Pipe Extruder Machine/pipe Extrusion LineUS$ 20,000 - 80,000MOQ: 1 Set -
PVC Pipe Production LineUS$ 20,000 - 60,000MOQ: 1 Set
-
Plastic Pipe Extruder Machine/Production LineUS$ 10,000 - 60,000MOQ: 1 Set
-
PE PP PPR Pipe Extruder Machine/Plastic Pipe Production LineUS$ 20,000 - 100,000MOQ: 1 Set
-
Steel Reinforced Polyethylene Pipe Extrusion LineUS$ 50,000 - 100,000MOQ: 1 Set
Specifications
UPVC pipe machine1.High output,low consumption.
2.Diamter range 16-800mm
3. working stable, long service life time
Specifications
UPVC pipe production line
Diameter: 16-800mm
Output: 120-1400kg/h
Production rate: 0.05-15m/min
Installed power: 45-305kw
UPVC pipe production line
Process flow

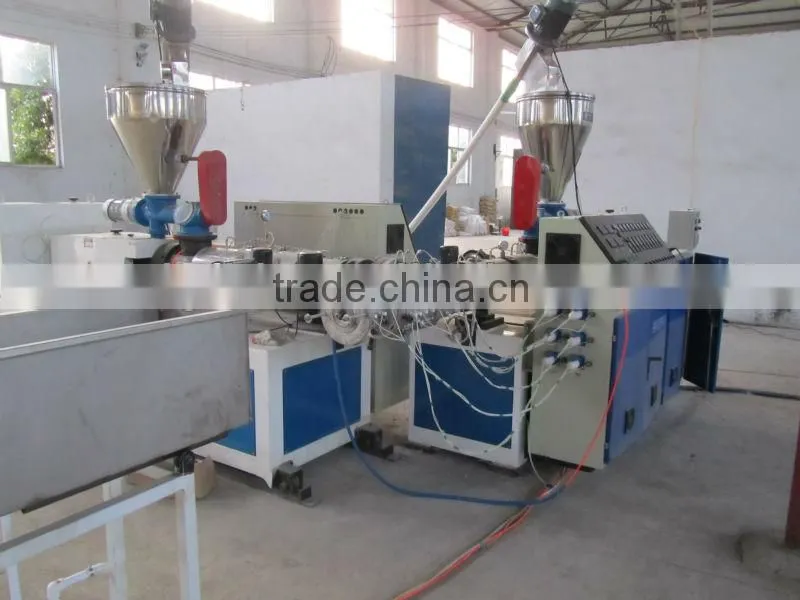

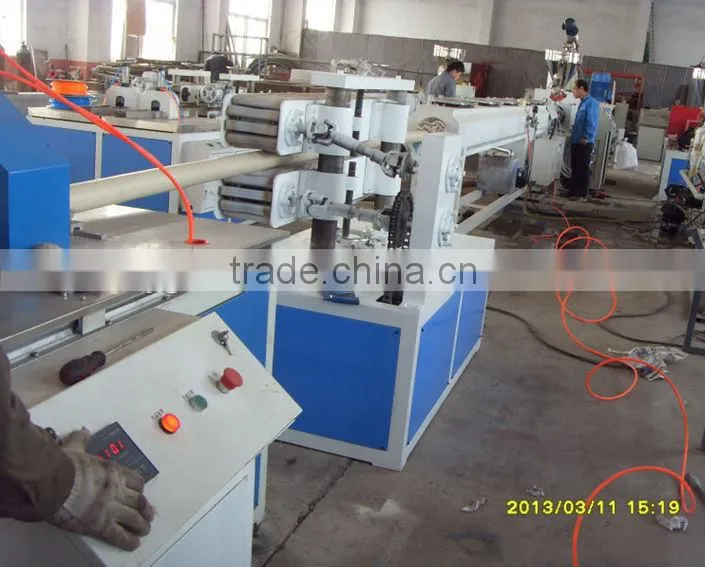

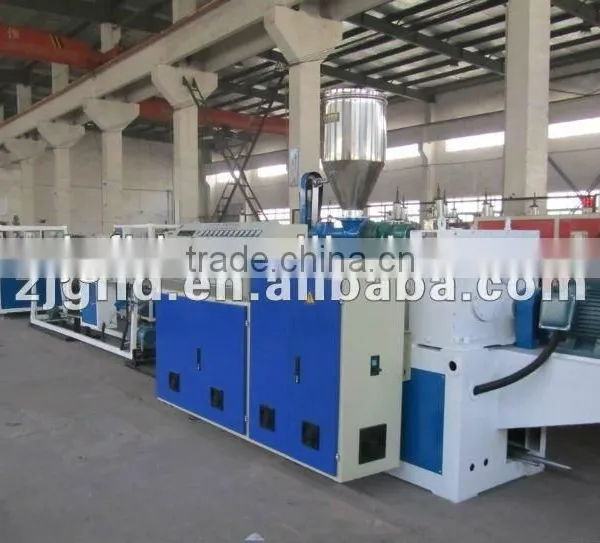

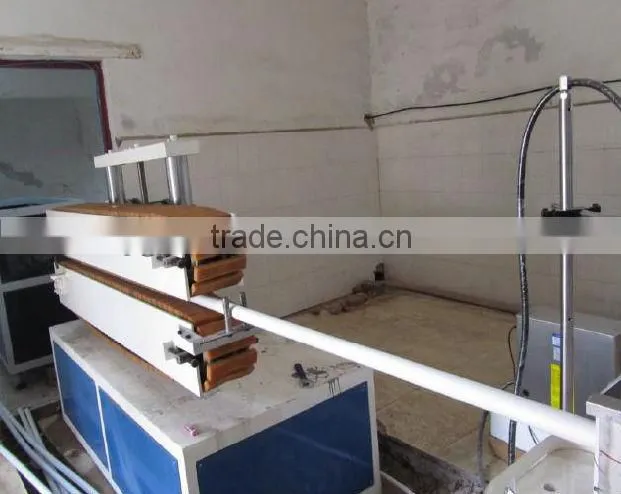

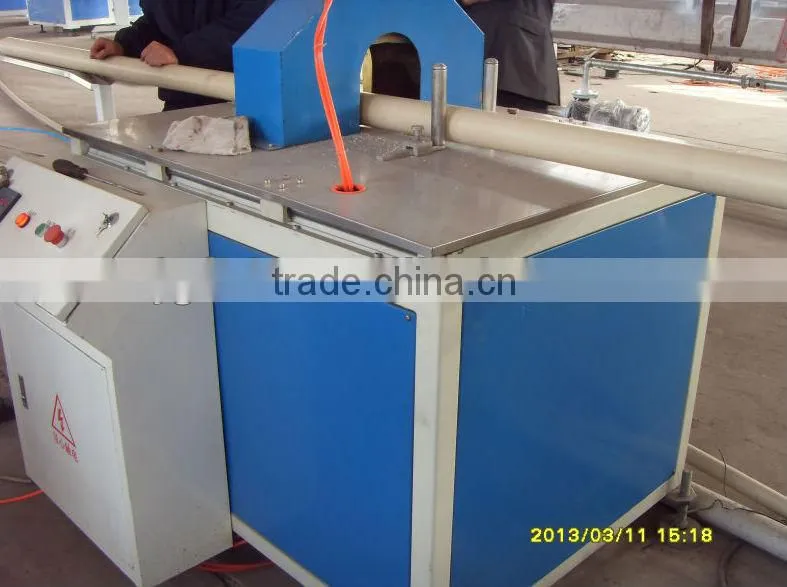

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack
Technical parameter
Model number |
UPVC-16/63 |
UPVC-20/110 |
UPVC-50/160 |
UPVC-75/250 |
UPVC-110/315 |
UPVC-200/450 |
UPVC-315/630 |
UPVC-500/800 |
Pipe diameter |
16-63mm |
20-110mm |
50-160mm |
75-250mm |
110-315mm |
200-450mm |
315-630mm |
500-800mm |
Max output |
120kg/h |
120kg/h |
180kg/h |
300kg/h |
450kg/h |
650kg/h |
800kg/h |
1400kg/h |
Production rate |
1.5-15m/min |
0.8-8m/min |
0.5-5m/min |
0.4-4m/min |
0.3-2m/min |
0.1-1m/min |
0.07-0.7m/min |
0.05-1 m/min |
Extruder model |
SJZ-50/105 |
SJZ-50/105 |
SJZ-55/110 |
SJZ-65/132 |
SJZ-80/156 |
SJZ-92/188 |
SJZ-92/188 |
SJZ-105/220 |
Installed power |
45kw |
45kw |
55kw |
75kw |
105kw |
160kw |
205kw |
305kw |
Center height |
1000mm |
1000mm |
1000mm |
1000mm |
1100mm |
1100mm |
1200mm |
1350mm |
Installation area |
22*2.5*2.0m |
24*2.8*2.0m |
24*2.8*2.0m |
30*2.8*2.2m |
35*3.0*2.4 m |
36*3.0*2.4 m |
38*3.2*2.8 m |
42*3.5*3.2 m |
Noting:
Please feel free to contact us for more information. Additionally, it is worth noting that, it will be more advantageous if you told the diameter and more details of the pipes you are going to produce when sending your messages.

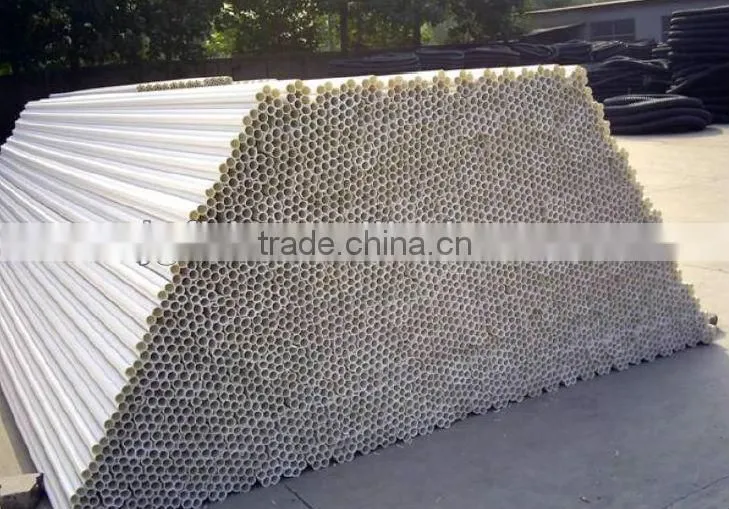

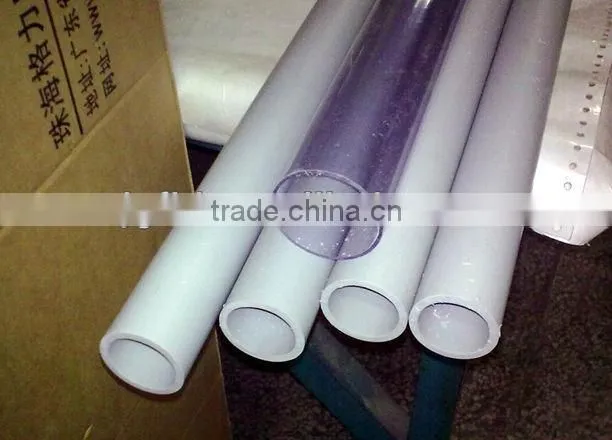

Advantages of UPVC pipes:
1. Excellent in chemical corrosion, no rust;
2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;
4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;
5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;
6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;
7. The toughness of UPVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
Tell us about your material and the capacity thus we can newly designed the most suitable machine for you.
