Recycling Agglomeration Plastic Film Agglomerate

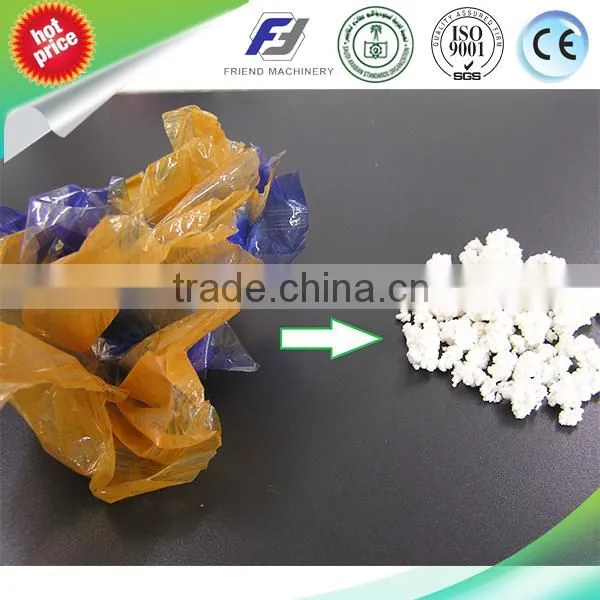

Recycling Agglomeration Plastic Film Agglomerate application is mainly suitable for processing complete film,plastic bags and fibber into small granules,the final granules can be used for send into extruder to pelletizing again.:
Features of Recycling Agglomeration Plastic Film Agglomerate:
Recycling Agglomeration Plastic Film Agglomerate adopts friction heating principle , it can crush and granulate various kinds of plastic film all in once. It's an ideal device to turn waste film into profitable granules easily and quickly .
Power by three-phase motor, driving by triangle belt, this device make the fixed blades and moving blades moving across and cut film material into pieces, in the meantime ,moving blades turning with high speed so the material forms a whirlpool because of centrifugal power. the friction between material and machine inner wall produces light heat which makes the material slightly plasticized. Then water will be added to make a sudden cold so the materials becomes granules.
Technical parameters of Recycling Agglomeration Plastic Film Agglomerate :
( TLJ series is mainly used to produce PE, PP and other plastic film etc.)
Model |
TLJ-100 |
TLJ-200 |
TLJ-300 |
TLJ-500 |
TLJ-600 |
TLJ-800 |
|
Volume (L) |
100 |
200 |
300 |
500 |
600 |
800 |
|
Effective Volume (L) |
75 |
150 |
225 |
375 |
450 |
600 |
|
Main Motor (kw) |
37 |
55 |
75 |
90 |
90-110 |
110 |
Rotation Blade |
2 |
2 |
4 |
4 |
4 |
4 |
Fixed Blade |
6 |
6 |
8 |
8 |
8 |
8 |
|
Capacity (kg/h) |
100 |
150 |
200 |
300 |
400 |
550 |
|
Weight (kg) |
1000 |
1200 |
1800 |
2500 |
2700 |
3000 |
|
Dimension (m) |
1.7*0.75*1.5 |
1.7*0.85*1.5 |
2*0.85*1.6 |
2.3*0.95*1.7 |
2.3*1.1*1.75 |
2.5*1.25*1.8 |
Pot Material |
Stainless steel |
|||||
Blade material |
SKD-11 |
|||||
Model No. |
TLJ-200 |
Volume |
200L |
Effective capacity |
150L |
Motor Power |
55 KW |
Rotor Blade Quantity |
2 pieces |
Fixed Blade Quantity |
6 pieces |
Blade Material |
D2 |
Rotating speed |
950rpm |
Output |
150-250kg/h |
Weight |
1500 kg |
Power Voltage |
AC380 V 50HZ |
