Plastic Film Compactor Agglomerator
Plastic Film Compactor Agglomerator is mainly suitable for processing complete film,plastic bags and fibber into small granules,the final granules can be used for send into extruder to pelletizing again.:
Features of Plastic Film Compactor Agglomerator:
This Plastic Film Compactor Agglomerator is mainly suitable for processing complete film,plastic bags and fibber into small granules,the final granules can be used for send into extruder to pelletizing again.
1.strong design of double bearing for holding the main shaft
2. High performance blades
3.Water flushing automatically
4.Motor power:37KW-132KW
5.Capacity:100-800kg/h
Applicable material of Plastic Film Compactor Agglomerator: Soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics,etc.
Working Principle of Plastic Film Compactor Agglomerator

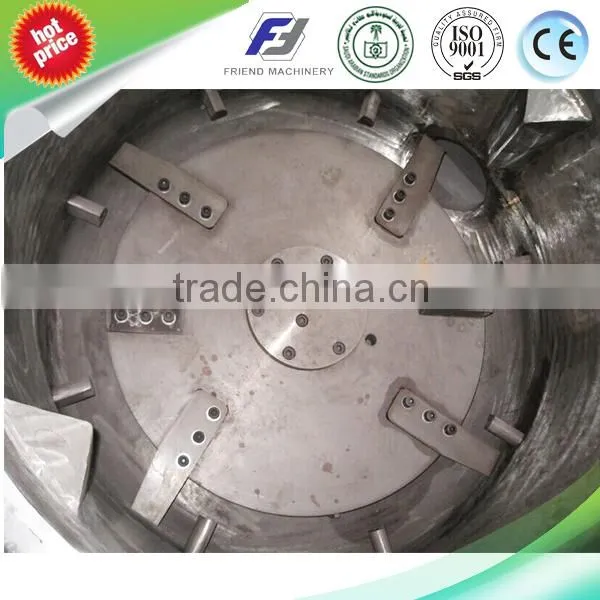

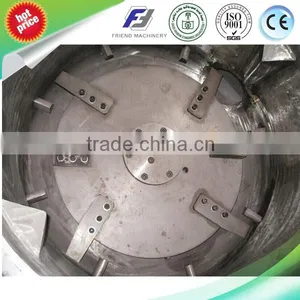

Putting the waste into agglomerator pot body make the plastic material be quickly cut by the high speed rotating turn the blade and the fixed blade shear ,then the material along the agglomerator pot body wall by the knife dish centrifugal force function ,at the same time, the film material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of film material itself and friction of agglomerator pot wall and blades produce much friction heat under the high speed, making the plastic materials temperature rises to the half-plastic condition and connects to small lump. Before the plastic film materials will block, advanced preparation quantitative water will all spray to the material. The cold water touch the hot materials will gasify and take out the surface heat soon , making the surface of the plastic film materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs.
Technical parameters of Plastic Film Compactor Agglomerator :
( TLJ series is mainly used to produce PE, PP and other plastic film etc.)
Model |
TLJ-100 |
TLJ-200 |
TLJ-300 |
TLJ-500 |
TLJ-600 |
TLJ-800 |
|
Volume (L) |
100 |
200 |
300 |
500 |
600 |
800 |
|
Effective Volume (L) |
75 |
150 |
225 |
375 |
450 |
600 |
|
Main Motor (kw) |
37 |
55 |
75 |
90 |
90-110 |
110 |
Rotation Blade |
2 |
2 |
4 |
4 |
4 |
4 |
Fixed Blade |
6 |
6 |
8 |
8 |
8 |
8 |
|
Capacity (kg/h) |
100 |
150 |
200 |
300 |
400 |
550 |
|
Weight (kg) |
1000 |
1200 |
1800 |
2500 |
2700 |
3000 |
|
Dimension (m) |
1.7*0.75*1.5 |
1.7*0.85*1.5 |
2*0.85*1.6 |
2.3*0.95*1.7 |
2.3*1.1*1.75 |
2.5*1.25*1.8 |
Pot Material |
Stainless steel |
|||||
Blade material |
SKD-11 |
|||||
Model No of Plastic Film Compactor Agglomerator |
TLJ-100L |
Volume |
100L |
Motor Power |
37KW |
Rotor Blade Quantity |
2 pieces |
Fixed Blade Quantity |
6 pieces |
Blade Material |
Special Tool Steel |
Rotating speed |
950rpm |
Output |
70-150kg/h |
Electrical part |
DELIXI |
Bearing |
LYC |
Weight |
1.5T |
Power Voltage |
AC380 V 50HZ |
Dimension |
1600×900×1500mm |
