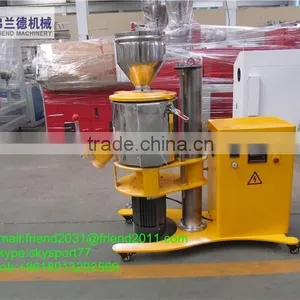

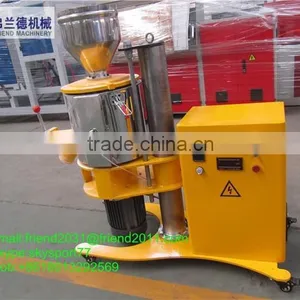

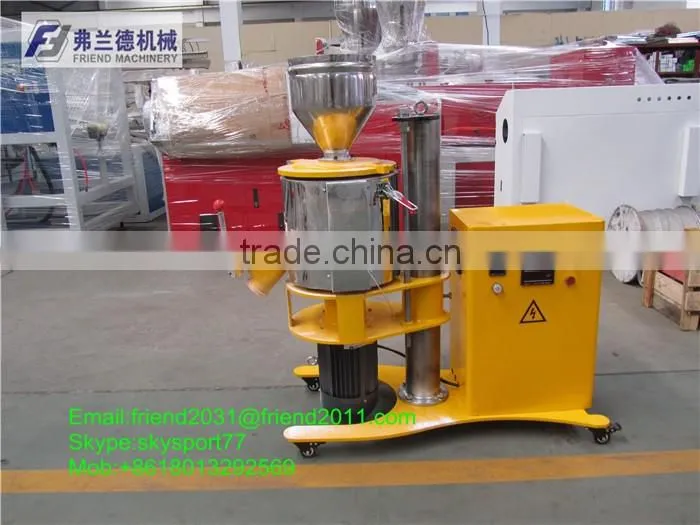

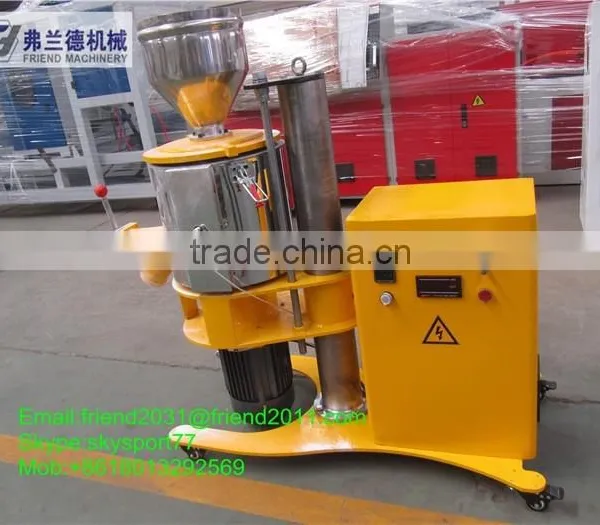

Plastic Mixer Machine/Plastic Powder Mixer
- 35 Set / Sets per Month
- shanghai
- T/T Credit Card
- Good price industrial small vertical plastic granules color mixer supplier
- Good price 304 stainless steel horizontal food powder mixer supplier
- Good Price Vertical Screw Type Plastic Drying Mixing Machine Mixer with Dryer
- Good Price Plastic Material batch Mixer Gravimetric Blender Machine Supplier
- Industrial Double Screw Metering Mixer Volumetric Doser
- 500 kg capacity mixer/ vertical plastic granules mixer
Product Details
Condition: | New | Application: | Mixing, Plastic mixer | Automatic Grade: | Automatic |
Production Capacity: | 100kg/h | Place of Origin: | Jiangsu, China | Brand Name: | Plastic Mixer Machine/Plastic Powder Mixer |
Model Number: | WST-L5000, SRL-Z | Voltage: | 380V | Power(W): | 11KW |
Dimension(L*W*H): | 185*185*465cm | Weight: | 2300kgs, 2200-9800kg | Certification: | CE ISO |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Mixer unit
Characteristics:
It is used in mixing, stirring, drying, coloring and other technique of plastics, rubber, chemicals for daily use. It’s an ideal advanced equipment of producing plastic plate, pipe, special-shaped material and degradation plastics.
SRL-Z:
1.It’s mainly used for assorting, mixing, coloring, drying of PE, PP, PVC, etc. Also for the techiques, including drying, dehydration, etc. of engineering plastics such as ABS, polycarbonate, etc. before forming and processing, as well as in the mixing of phenolic.

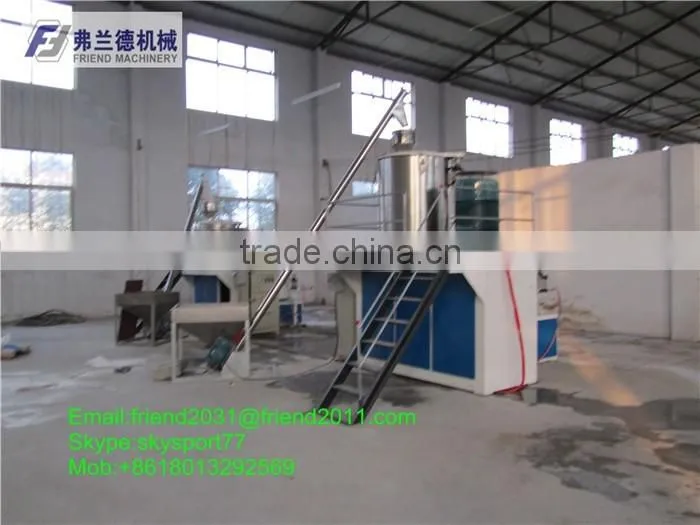

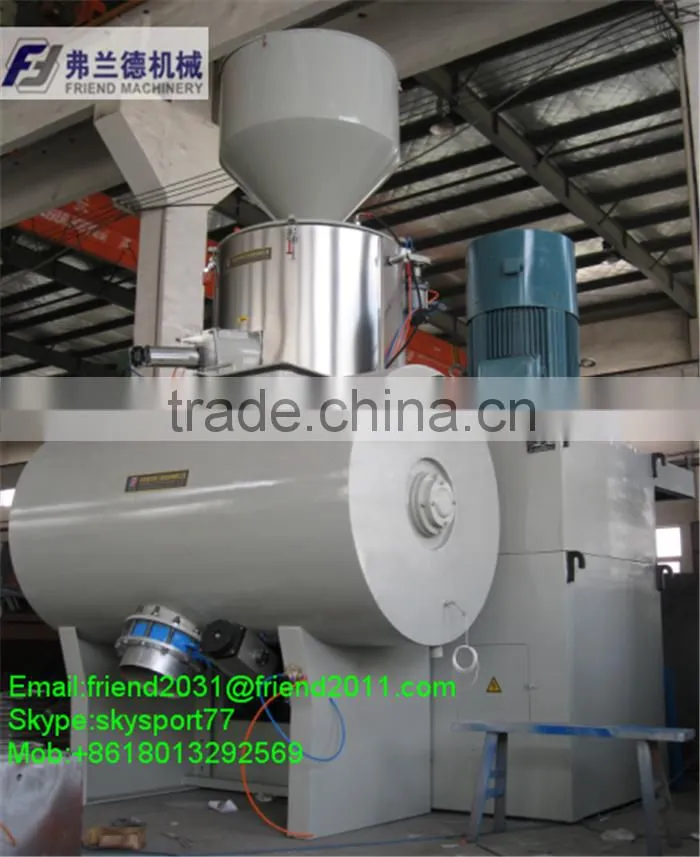

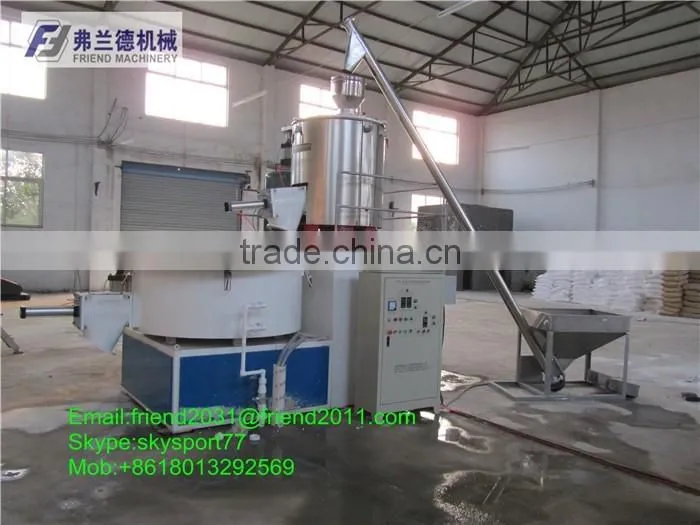

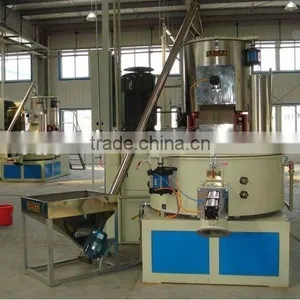

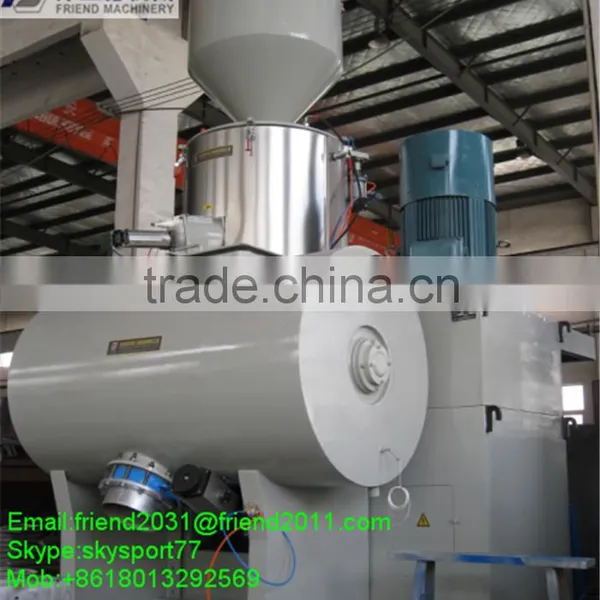

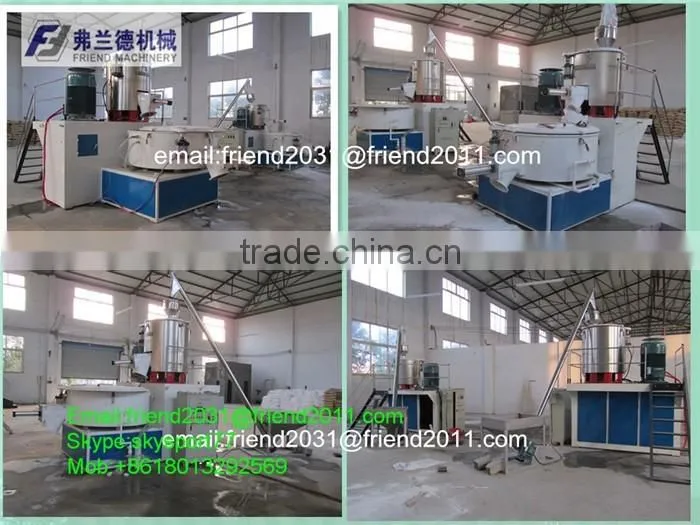

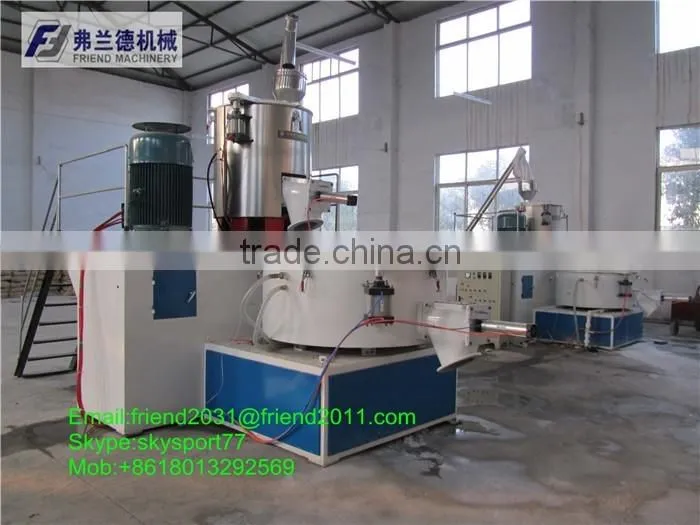

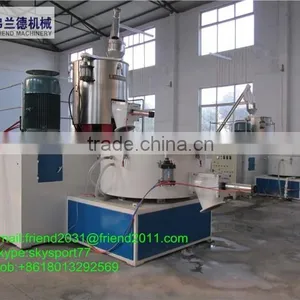

2.This unit can combine hot mixing with cold mixing. The materials after hot mixing can enter into cold mixer automatically to mix and cool, exhaust remnant gas to prevent materials from blocking effectively.
Technical parameters:
SRL-Z | Heat/cool | Heat/cool | Heat/cool | Heat/cool | Heat/cool |
Total capacity(L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective capacity(L) | 65/130 | 150/320 | 225/380 | 330/750 | 600/1050 |
Stirring speed(r/min) | 650/130/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
Heating/cool method | Electric, self-friction/water | ||||
Mixing time(min) | 8-12 | 8-12 | 8-12 | 8-15 | 8-15 |
Power(kw) | 14/22/7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
Overall dimension(mm) | 1950*1600*1800 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 5170*3200*4480 |
Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
- Main Specification & Technological Parameters
Parameter | Hot Machine | Parameter | Cold Machine |
Total Volume | 500L | Total Volume | 1000L |
Effective Volume | 375L | Effective Volume | 640L |
Once Feeding Volume | ≤180kg | Once Feeding Volume | ≤200kg |
Production Capacity | ≥1000kg/h (Take hard PVC raw material as standard |
|
|
Stirring Blade | 3 | Stirring Blade | 1 |
Rotary Speed of Stirring Blade | 430/860r/min | Rotary Speed of Stirring Blade | 110r/min |
Lifting Control | Air-operated | Lifting Control | Air-operated |
|
| Cooling Method | Water-cooling |
Cooling Water Temperature | 9-15°C≤0.1Mpa | ||
Cooled Material Temperature | 40-60°C | ||
Mixing Time | ≤ 10 min/pot | Cooling Time | ≤ 10 min/pot |
Power | 47/67kw | Power | 15kw |
Appearance Size of Main Machine | (L× W× H ) 3780 00×1870×2250 | ||
Weight of Equipment | 4000kg | ||
Electric Control Cabinet | Vertical Type 1 set | ||
Control Cabinet Size | (L× W× H ) 840× 550 × 1700 mm | ||
Used Power Source | AC 380V 50 Hz | ||
Used Gas Source | Compressed air 0.4—0.5 Mpa |
Our company is well known both home and abroad for high quality products and complete service systems.our products sell well all over the world .
If you are interested in any of our products ,please fell free to contact us for more information.
