Plastic Mixer Unit/ High Speed Mixer
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Mixing, powder | |
| Automatic Grade | Automatic | Production Capacity | 5T/hour | |
| Place of Origin | Jiangsu, China | Brand Name | friend | |
| Model Number | srl-w | Voltage | 380V/50Hz/3Phase | |
| Power(W) | 11KW | Dimension(L*W*H) | Max.220*220*950cm | |
| Weight | 180kg | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Overseas service center available |
Product Description

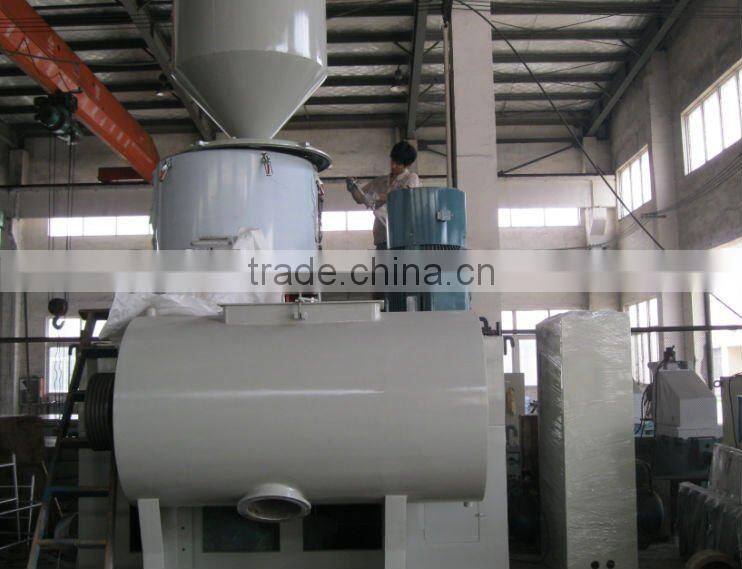

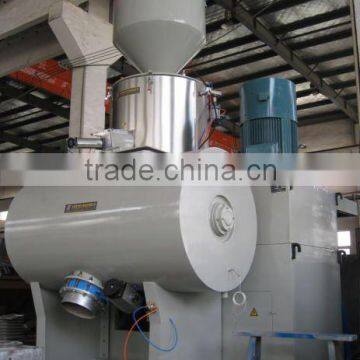

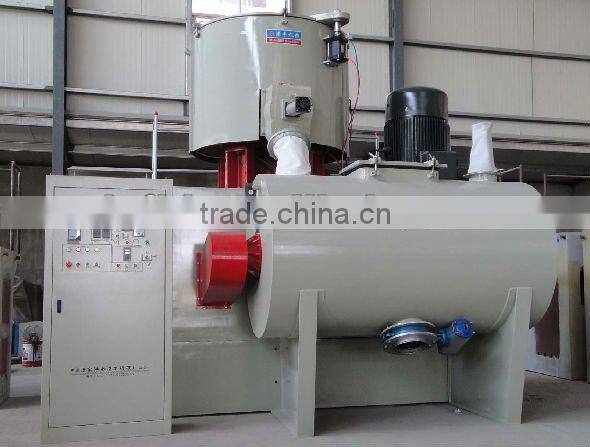

Plastic mixer unit
The unit combines hot mixer machine and cooling mixer together .The materials after hot mixer machine can be getting into cool mixer for cooling automatically ,exhausts remaining gases and avoids agglomerates.Through set the time or the temperature ,the machine can be operated by automatic .
2,mixing with cooling mixer
3,Get good plastic function .
4,Different capacity
mixer:
1. Used for the processes of compounding, mixing, drying and dying as one of the most ideal equipment for the manufactures of profiles and tubes.
2. The cold mixer adopts horizontal structure with the characteristics of large cooling area, fast speed, more homogenized.
3. The mixer lid is double sealed and opened in the pneumatic way.
4 The electric control system adopts RKC, Siemens, ABB, Omron and other famous instruments and control components to realize automatic control.
5. Equipped with pulse dust catching device. (on customer's option)
6. Both the blades and the belt wheel have been specially treated through the balancing machine of static and dynamic.
ModelData | Total volume(L) | Effective volume(L) | Motor Power(kw) | Heating method | Cooling way | Discharge method |
SRL-W300/1000 | 300/1000 | 210/700 | 40/55/11 | Self-friction or Electric Heating | Water cooling | Pneumatic |
SRL-W500/1600 | 500/1600 | 350/1100 | 47/67/15 | |||
SRL-W500/2000 | 500/2000 | 350/1400 | 55/75/18 | |||
SRL-W800/2000 | 800/2000 | 560/1400 | 83/110/18.5 | |||
SRL-W800/2500 | 800/2500 | 560/1750 | 83/110/22 | |||
SRL-W1000/3000 | 1000/3000 | 700/2450 | 160(inverter)/37 | |||
SWL-W1300/3500 | 1300/3500 | 950/2600 | 220(inverter)/37 |
Our company is well known both home and abroad for high quality products and complete service systems.our products sell well all over the world .
If you are interested in any of our products ,please fell free to contact us for more information.
