Pneumatic Air Hoist, 1/4Ton,1/2Ton,1Ton Air Hoist, Air Lifting Hoist

Name: Pneumatic Air Hoist, 1/4Ton,1/2Ton,1Ton Air Hoist, Air Lifting Hoist
Brand: Dayton
SKU: 124706183
Availability: InStock

Pneumatic Air Hoist, 1/4Ton,1/2Ton,1Ton Air Hoist, Air Lifting Hoist thumbnail-1

Pneumatic Air Hoist, 1/4Ton,1/2Ton,1Ton Air Hoist, Air Lifting Hoist photo-1

US$ 1,500 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Dayton

Contact Supplier Request Quote Chat Now

Rudong Hongxin Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Dayton

Model Number 29HX

Usage Other, Lifting

Power Source Pneumatic

Sling Type Chain

Maximum Lifting Weight 1 Ton

Maximum Lifting Height 7 Meter

Lift Speed 65 FPM

Certification SGS

Warranty 1 Year

After-sales Service Provided Overseas service center available

Description

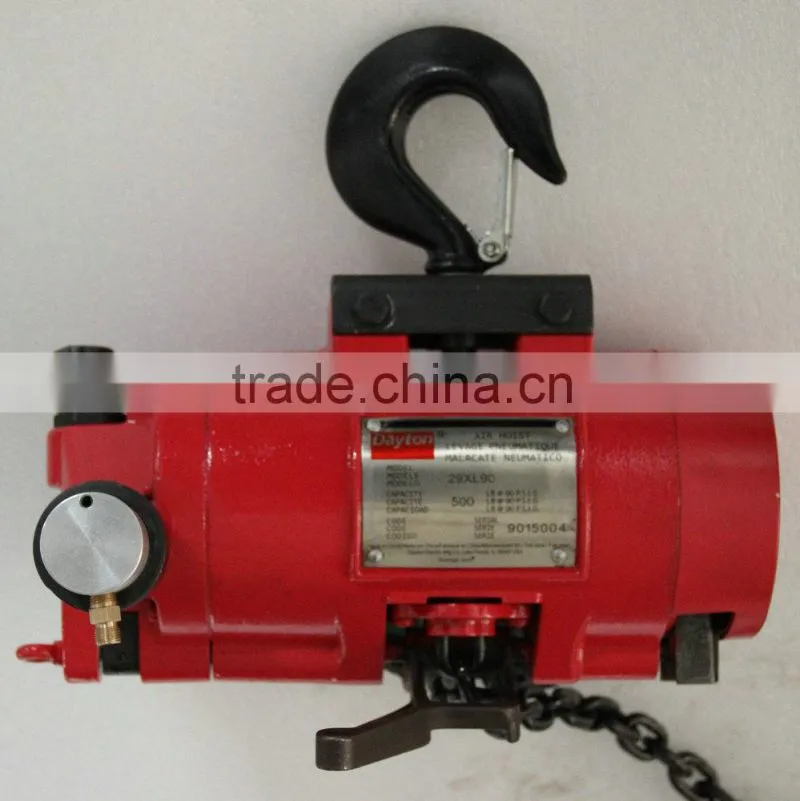

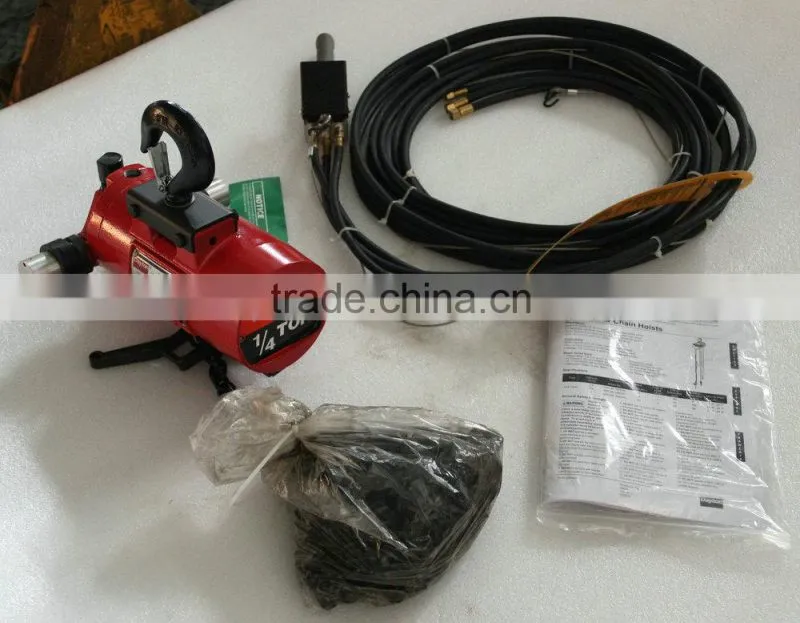

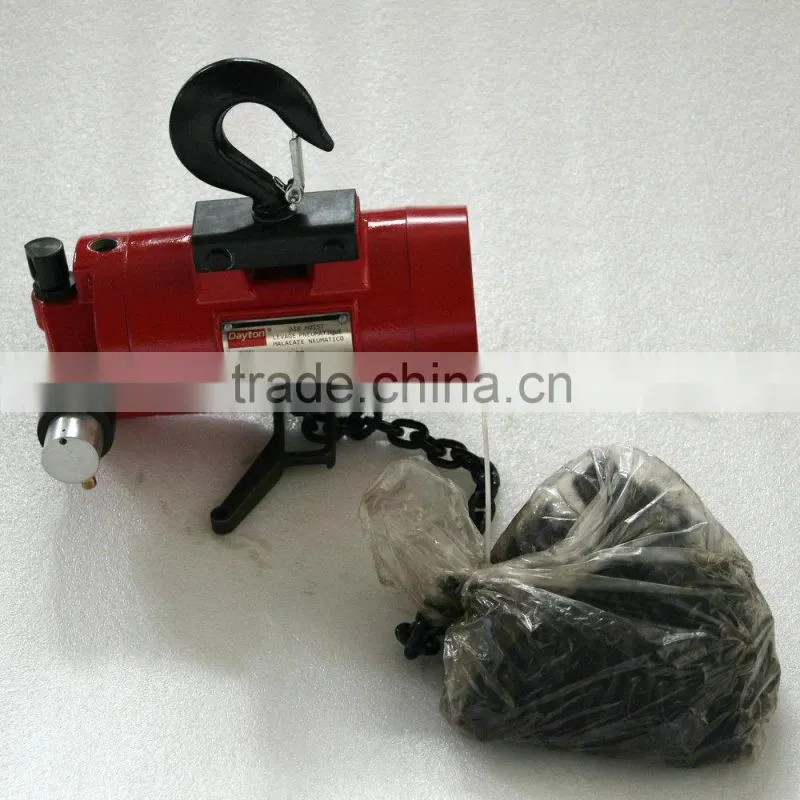

1/4Ton,1/2Ton,1Ton Air Hoist Lift 20FT With Chain,Air Lifting Hoist

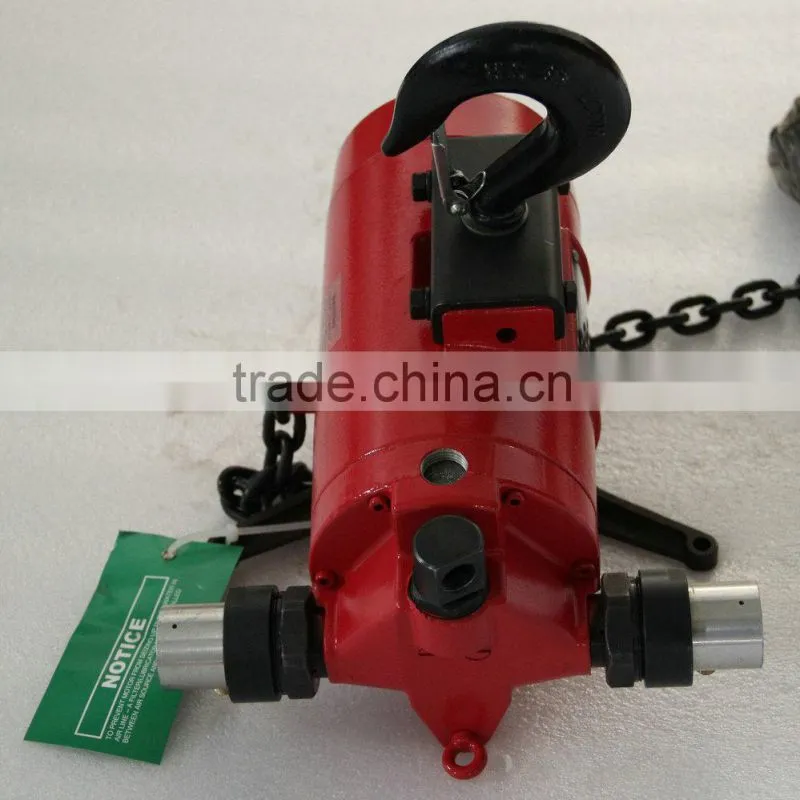

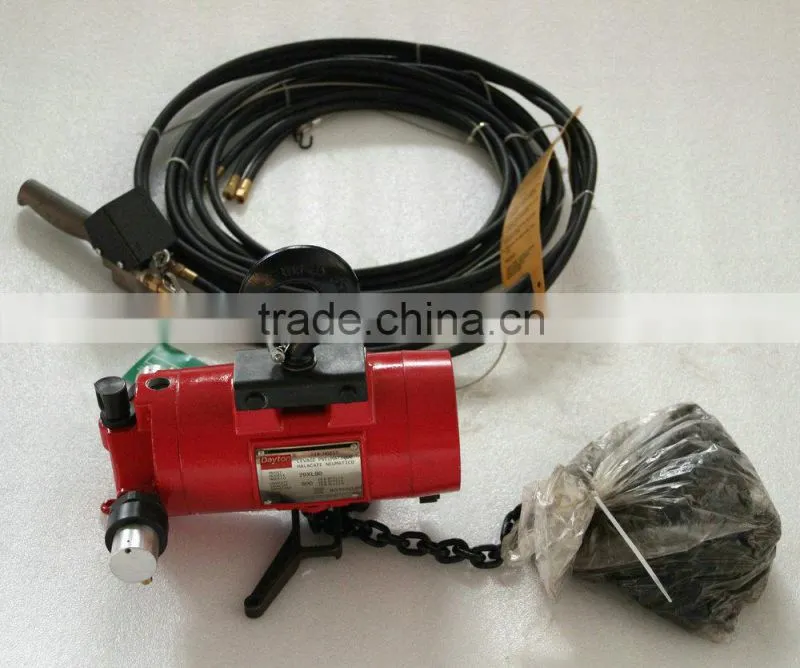

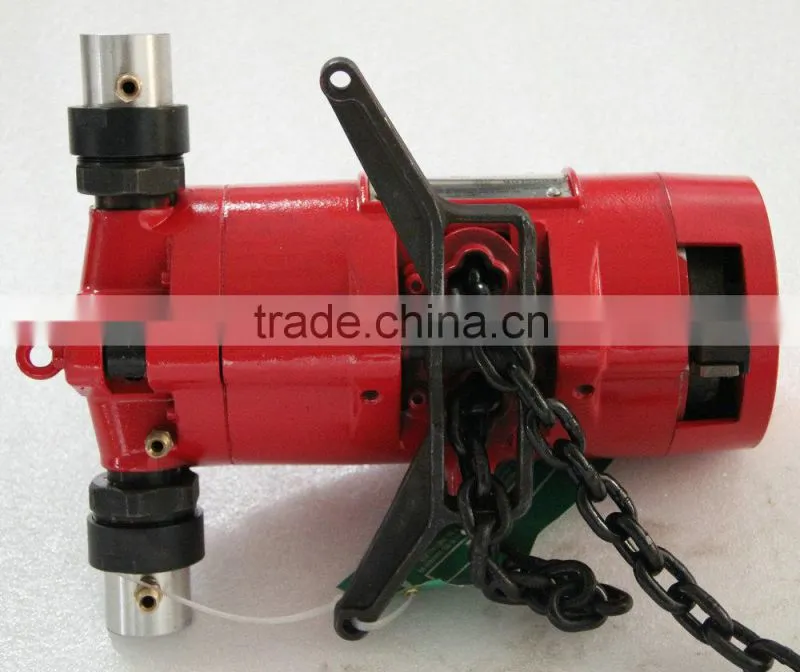

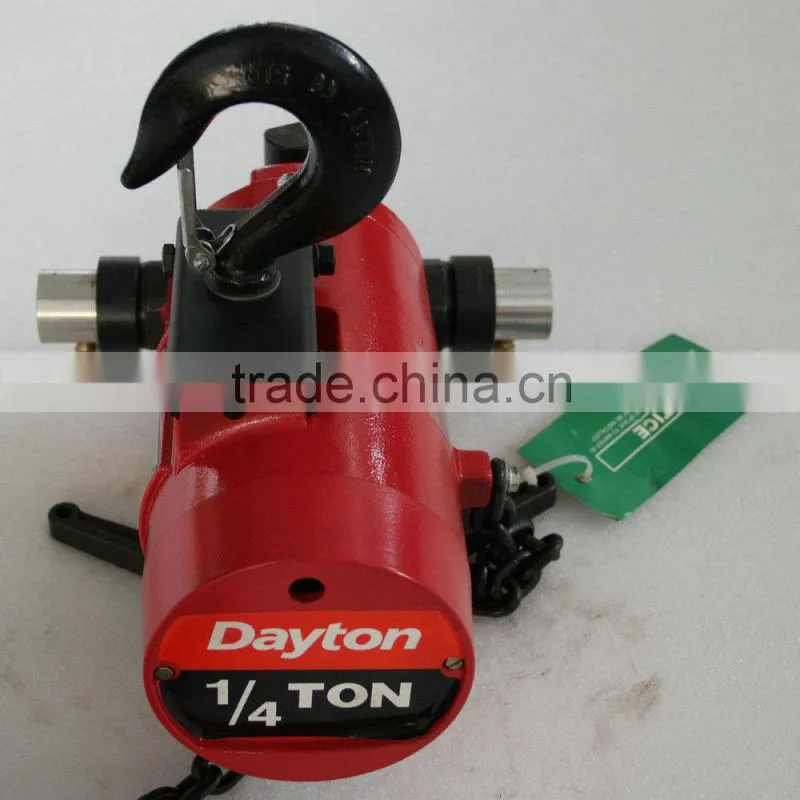

HONGXIN air hoists are all precision built chain type hoists which

are designed with three rated loads, 1/4, 1/2 and 1 ton. Each

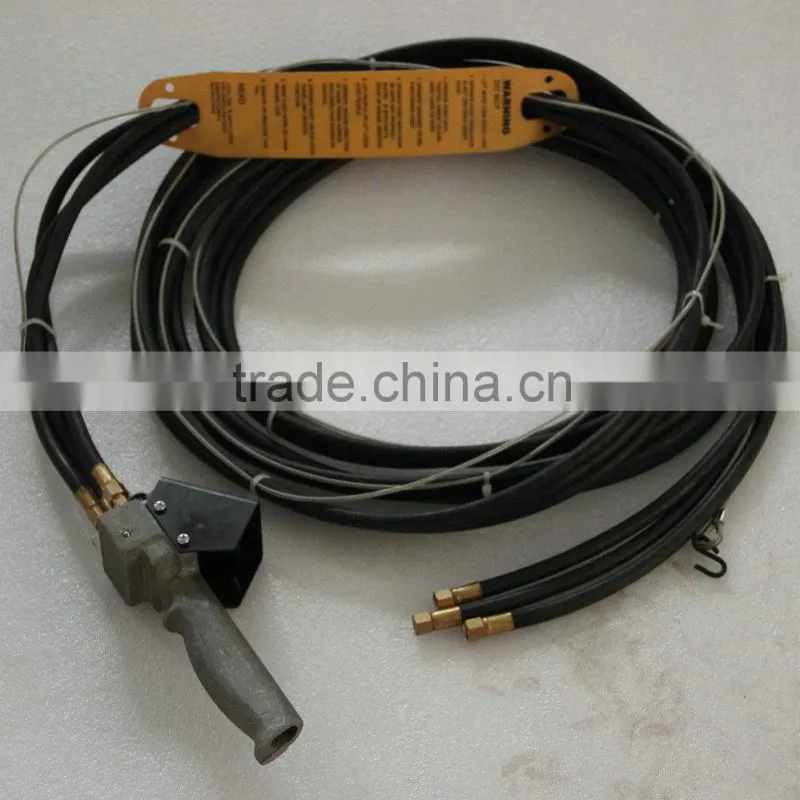

model features a pendant throttle control, a swivel top mount

hook and a swivel load chain hook with safety latch.

Basic Hoist Data

·Suspension: Hook

·Rated Loads: 1/4, 1/2, and 1-Ton

·Control: Pendant Throttle

·Air Pressure Recommended: 90 psi

·Air Inlet Size: 3/8 NPTF

·Air Consumption: 48 SCFM at 90 psi

·Air Supply Hose: 1/2 I.D. min.

·Net Weight (Basic Hoist): 36lbs

·Air Exhaust: 1/2 NPTF

Specifications

Type	Capacity (tons)	Pendant Throttle Control		Parts of Load Chain	Lifting Speed Max (fpm)	Lowering Speed Max (fpm)	Chain Length (In)
Type	Capacity (tons)	Model No.	Net Wt.(lbs.)	Parts of Load Chain	Lifting Speed Max (fpm)	Lowering Speed Max (fpm)	Chain Length (In)
Link Chain	1/4	29HX85,29HX90	46	1	65	95	11’-5’’, 22’-7’’
	1/2	29HX86, 29HX87	46	1	45	120	11’-5’’, 22’-7’’
	1	29HX88, 29HX89	59	2	23	60	22’-7’’, 44’-8’’

Dimension

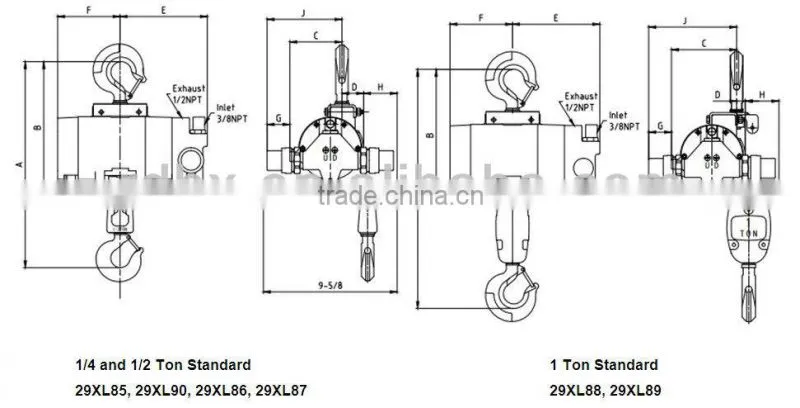

OUTLINE DIMENSIONS
Model Number	A	B	C	D	E	F	G	H	J
29XL85,29XL90 29XL86,29XL87	15-1/4	10-1/4	4-3/4	1-3/4	7-1/16	5-1/16	15/16	2-3/16	5-11/16
29XL88, 29XL89	18	10-1/4	5-3/4	3/4	7-1/16	5-1/16	15/16	2-3/16	5-11/16

All dimensions are shown in inches

Air Hoist Performance Charts

1/4 TON RATED LOAD HOIST

LOAD	125 LBS.				250 LBS.				500 LBS.
Air Pressure	UP		DOWN		UP		DOWN		UP		DOWN
psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	5	8	0	0	15	40	0	0	25	65
60	35	70	30	75	30	65	35	85	20	50	40	95
70	40	75	30	80	35	70	35	85	25	60	40	95
80	40	80	35	80	35	75	35	85	30	60	40	95
90	40	80	35	80	35	80	35	85	30	65	40	95
100	40	80	35	80	40	80	35	85	30	65	40	95

1/2 TON RATED LOAD HOIST

LOAD	250 LBS.				500 LBS.				1000 LBS.
Air Pressure	UP		DOWN		UP		DOWN		UP		DOWN
psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	15	40	0	0	25	65	0	0	45	125
60	30	65	35	85	20	50	40	95	0	20	45	125
70	35	70	35	85	25	60	40	95	0	30	50	120
80	35	75	35	85	30	60	40	95	10	40	55	120
90	25	80	35	85	30	65	40	95	15	45	55	120
100	40	80	35	85	30	65	40	95	20	50	55	120

1 TON RATED LOAD HOIST

LOAD	500 LBS.				1000 LBS.				2000 LBS.
Air Pressure	UP		DOWN		UP		DOWN		UP		DOWN
psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	8	20	0	0	13	33	0	0	25	65
60	15	32	16	42	10	25	20	50	0	10	25	65
70	16	35	17	42	12	30	20	50	0	15	25	60
80	17	37	18	42	14	31	20	48	5	20	30	60
90	18	40	18	42	15	32	20	47	7	23	30	60
100	20	40	18	42	15	34	20	45	10	25	30	60
