Description

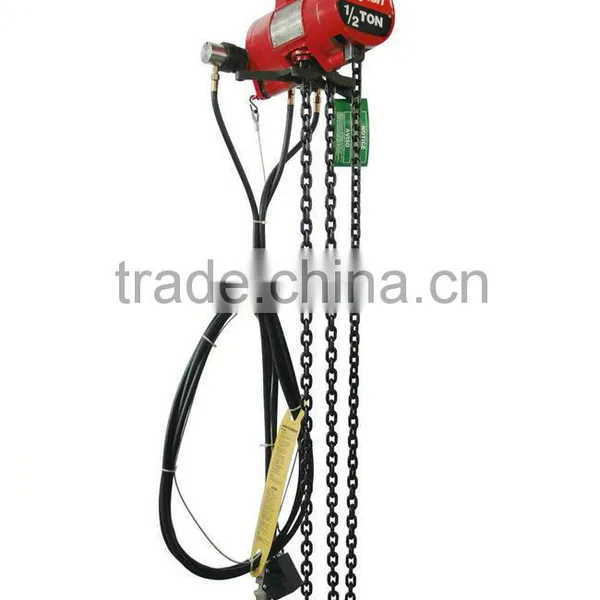

HONGXIN air hoists are all precision built chain type hoists which
are designed with three rated loads, 1/4, 1/2 and 1 ton. Each

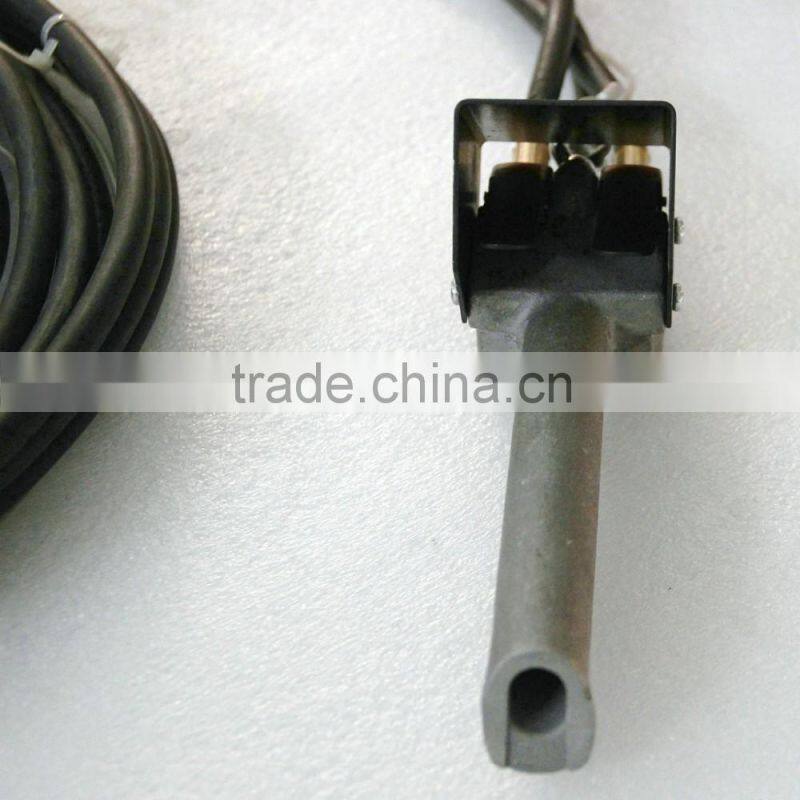

model features a pendant throttle control, a swivel top mount
hook and a swivel load chain hook with safety latch.
Basic Hoist Data
·Suspension: Hook
· Rated Loads: 1/4, 1/2, and 1-Ton ·Control: Pendant Throttle
·Air Pressure Recommended: 90 psi ·Air Inlet Size: 3/8 NPTF
·Air Consumption: 48 SCFM at 90 psi ·Air Supply Hose: 1/2 I.D. min.
·Net Weight (Basic Hoist): 36lbs ·Air Exhaust: 1/2 NPTF
Specifications
Type |
Capacity (tons) |
Pendant Throttle Control |
Parts of Load Chain |
Lifting Speed Max (fpm) |
Lowering Speed Max (fpm) |
Chain Length (In) |
|
Model No. |
Net Wt.(lbs.) |
||||||
Link Chain |
1/4 |
29HX85, 29HX90 |
46 |
1 |
65 |
95 |
11’-5’’, 22’-7’’ |
1/2 |
29HX86, 29HX87 |
46 |
1 |
45 |
120 |
11’-5’’, 22’-7’’ |
|
1 |
29HX88, 29HX89 |
59 |
2 |
23 |
60 |
22’-7’’, 44’-8’’ |
|

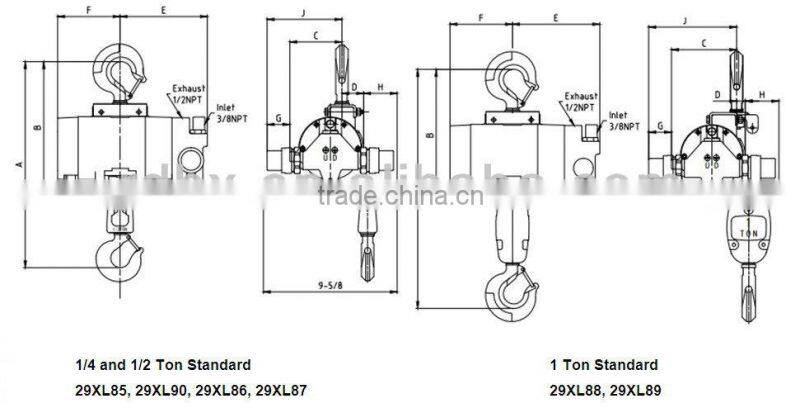

Dimension
OUTLINE DIMENSIONS | |||||||||
Model Number |
A |
B |
C |
D |
E |
F |
G |
H |
J |
|
29HX85,29HX90 29HX86,29HX87 |
15-1/4 |
10-1/4 |
4-3/4 |
1-3/4 |
7-1/16 |
5-1/16 |
15/16 |
2-3/16 |
5-11/16 |
29HX88, 29HX89 |
18 |
10-1/4 |
5-3/4 |
3/4 |
7-1/16 |
5-1/16 |
15/16 |
2-3/16 |
5-11/16 |
All dimensions are shown in inches

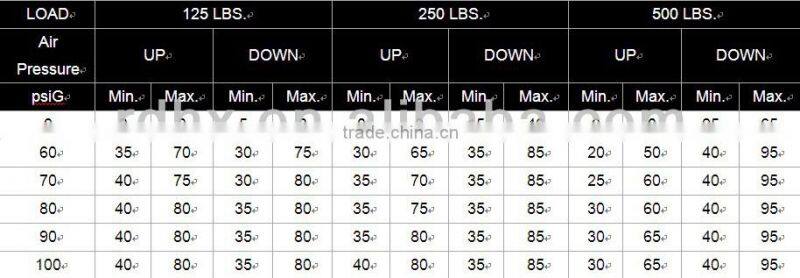

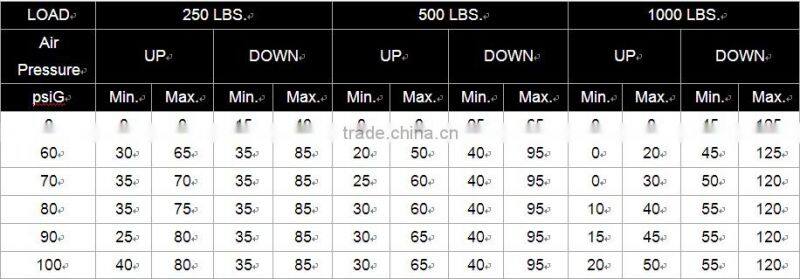

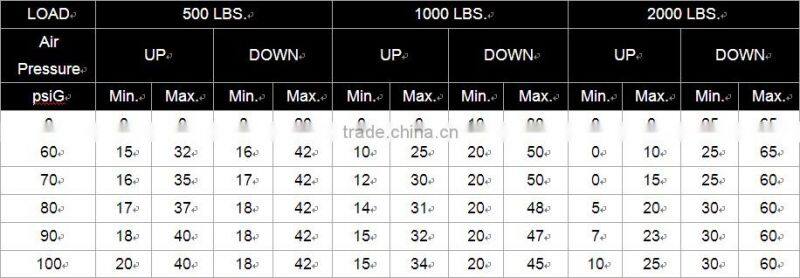

Hoist Performance Charts

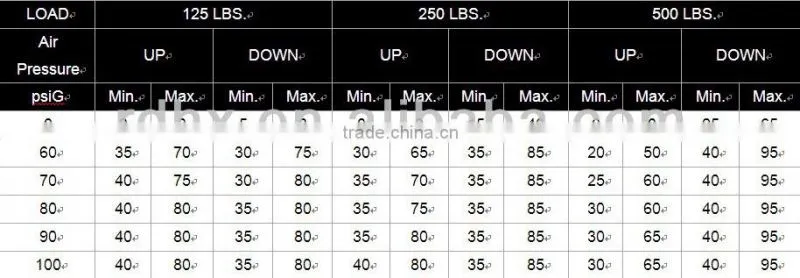

1/4 TON RATED LOAD HOIST

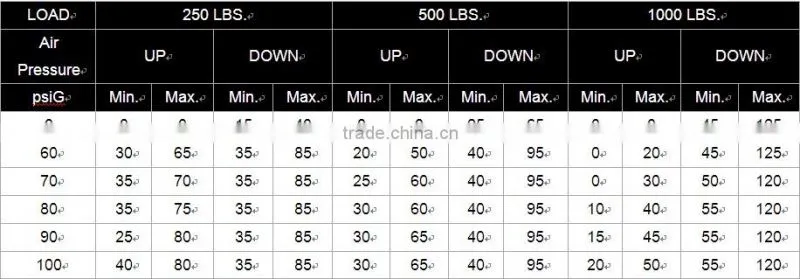

1/2 TON RATED LOAD HOIST
1 TON RATED LOAD HOIST
NOTE: Hoist Speeds are shown in feet per minute (f.p.m.).

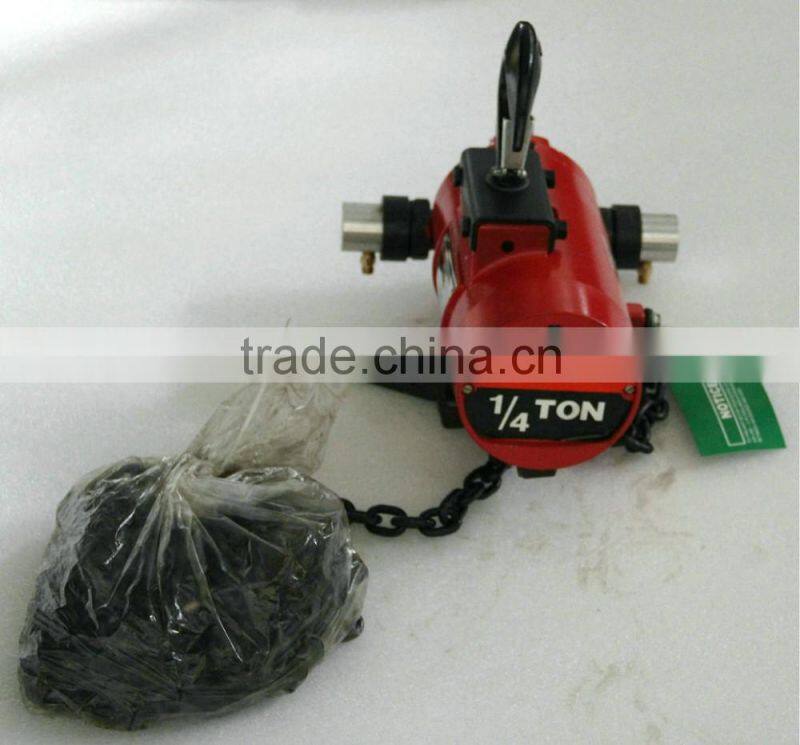

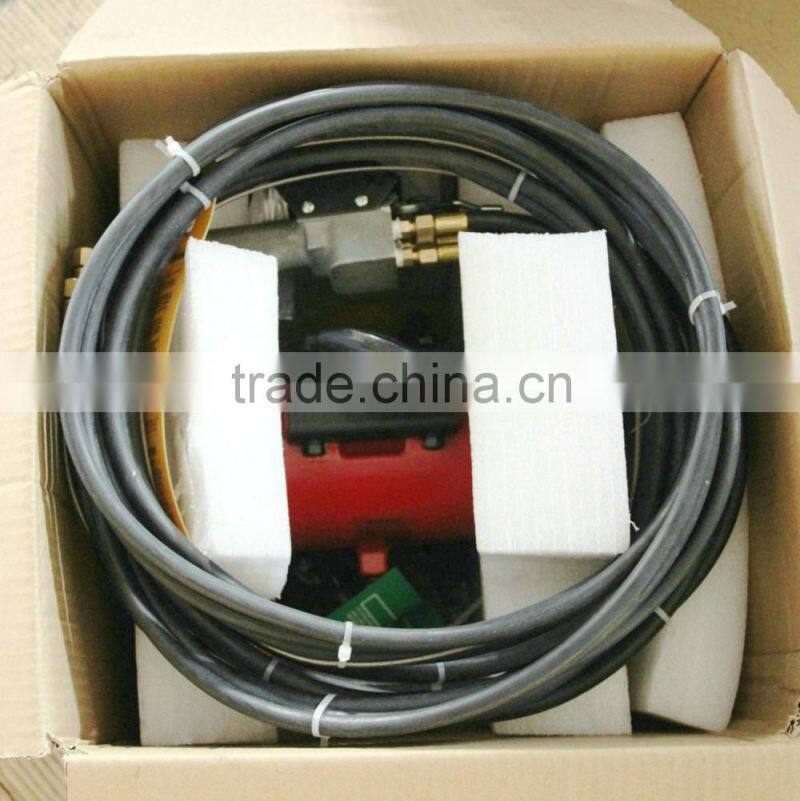

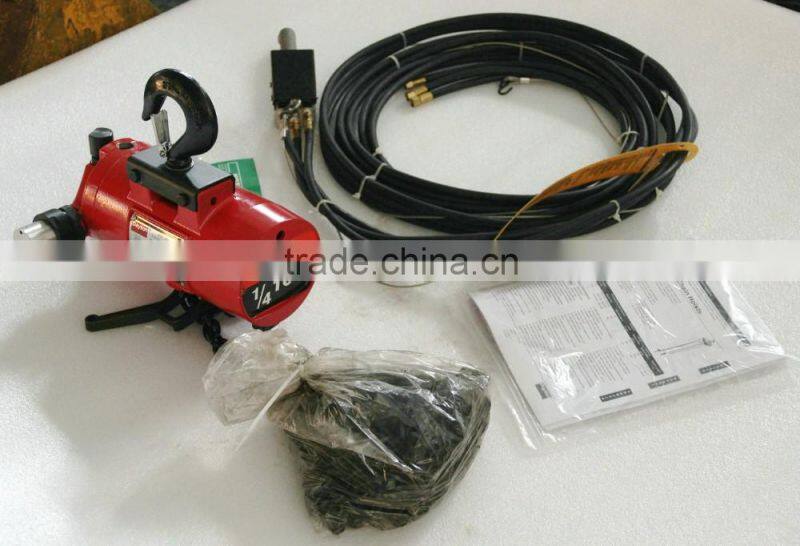

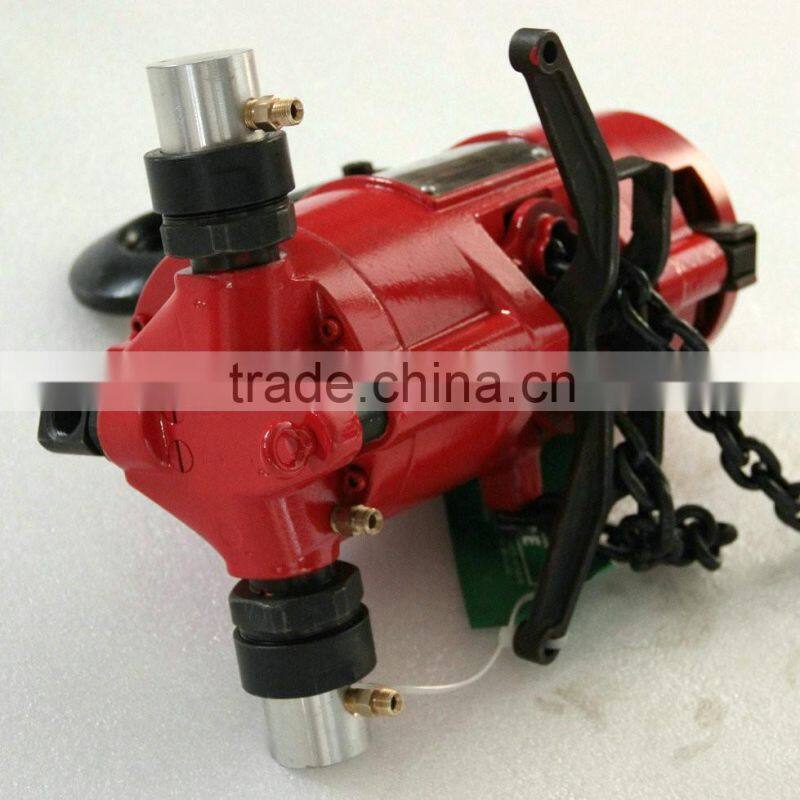

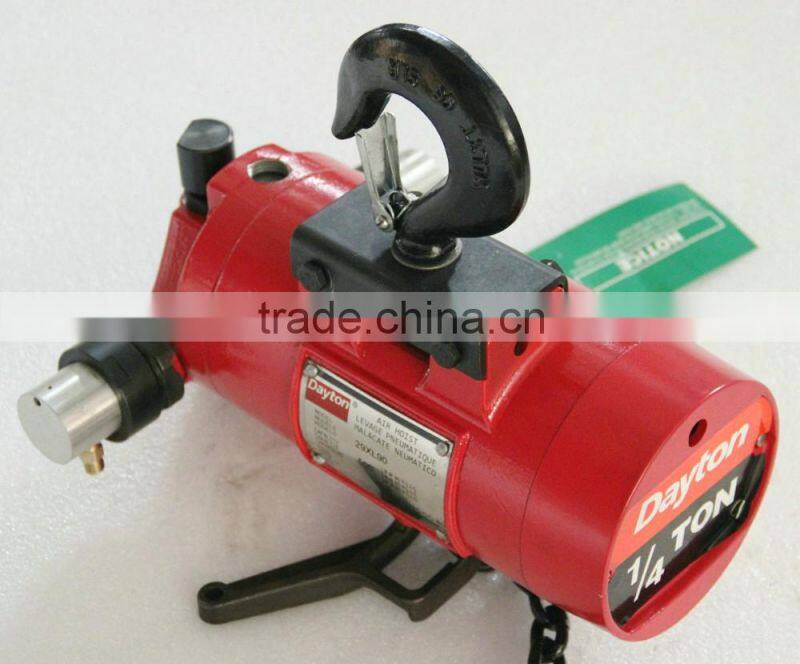

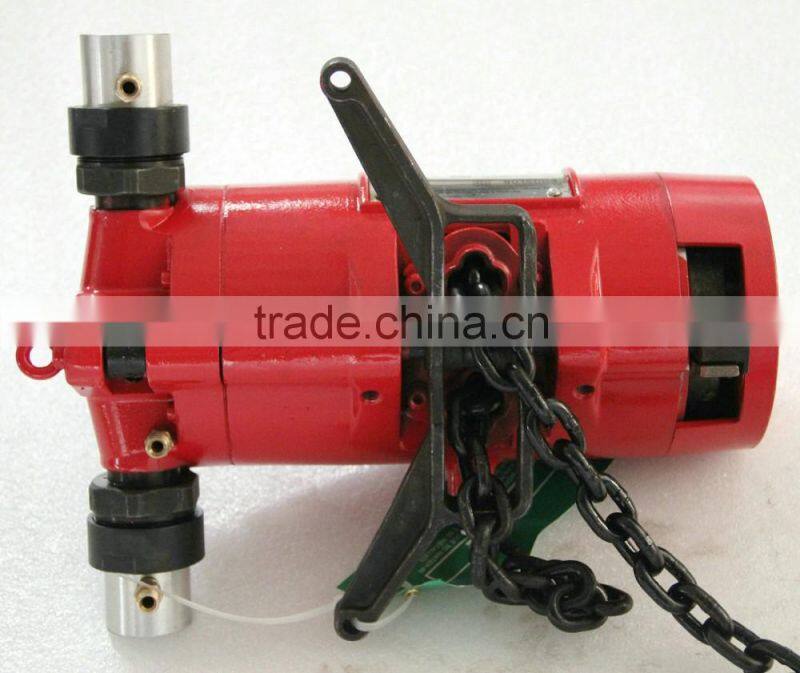

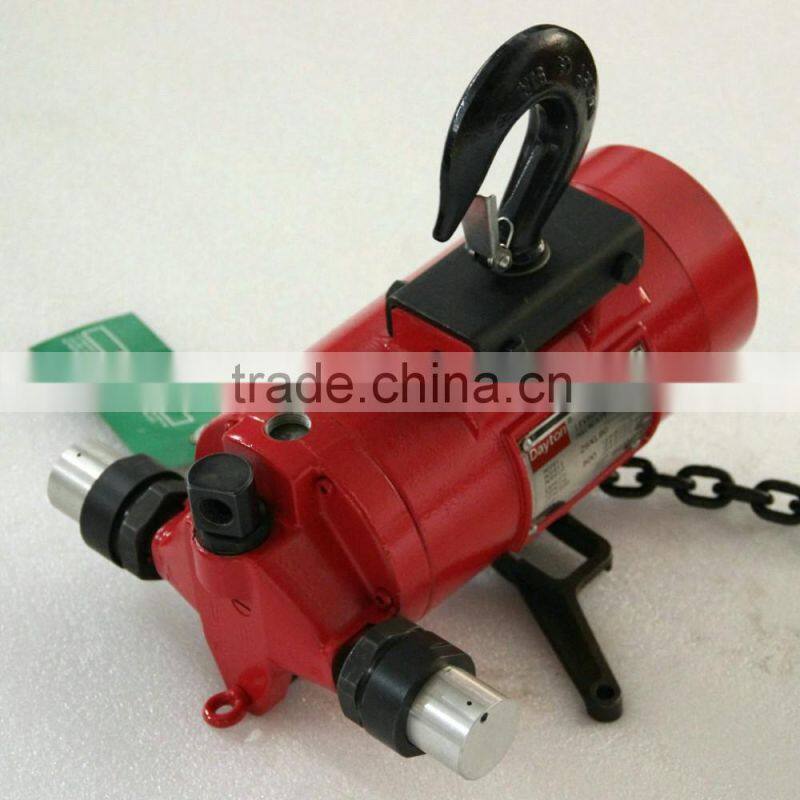

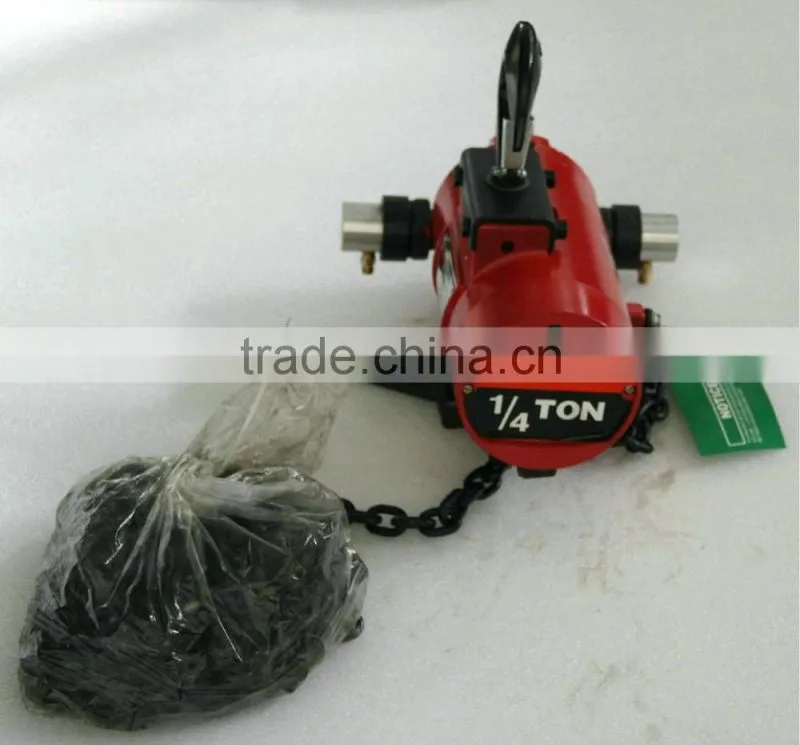

PICTURES SHOW:
