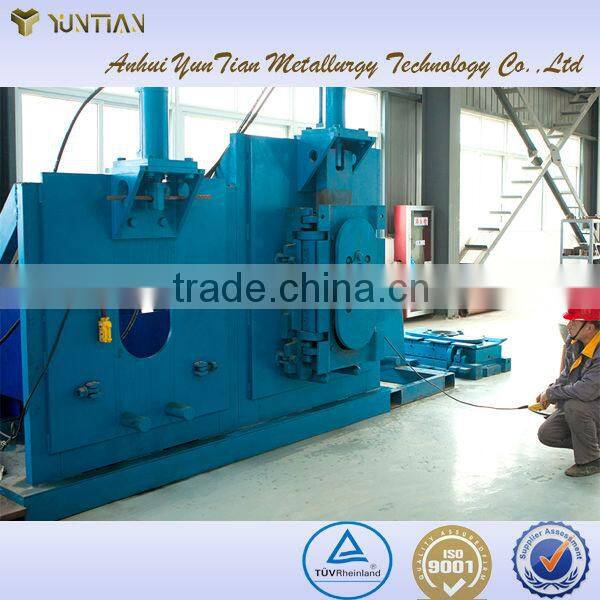

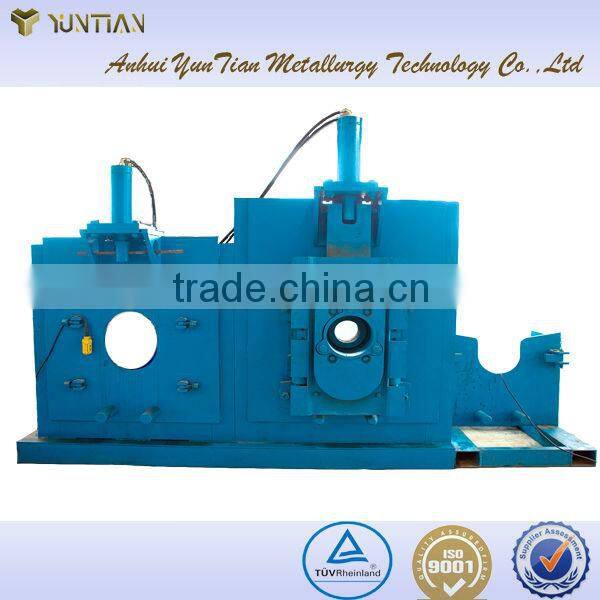

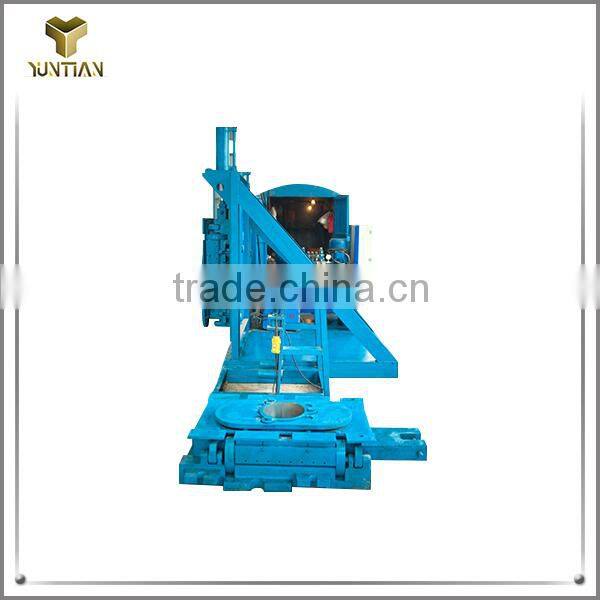

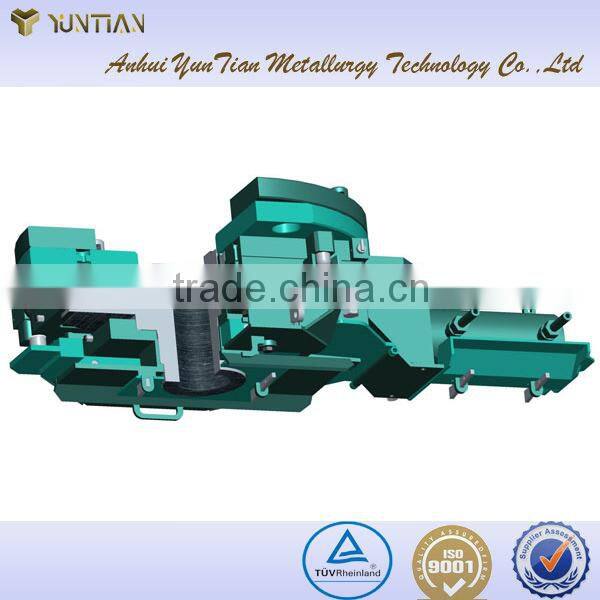

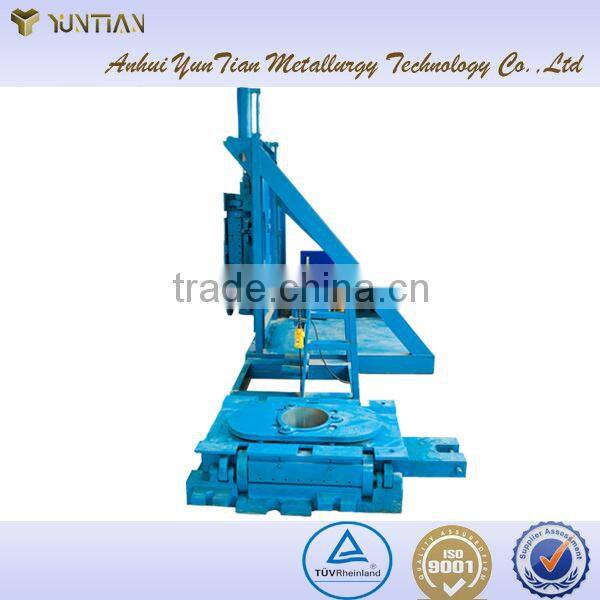

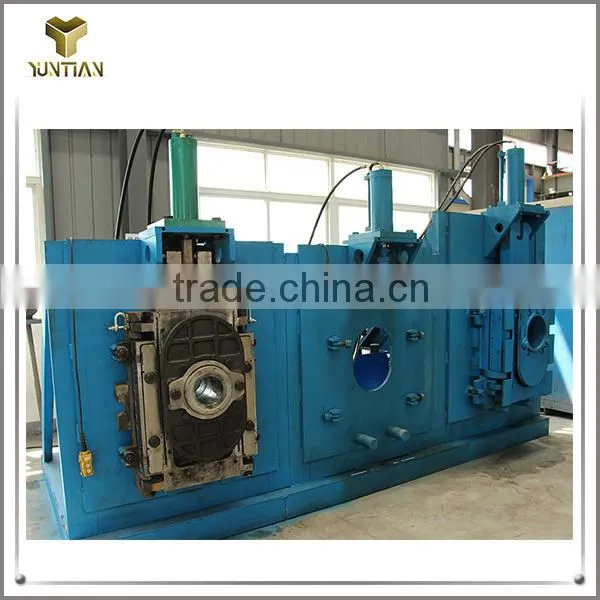

High efficient Converter Slide Gate Slag Control System
1.Higher than 98% slag stopping rate, effectively reducing the average slag thickness of ladle, slag thickness≤40mm(no synthetic slag)
2. Simple and rational structure, safe and reliable use, simple operation and convenient repair and replacement
3.Device closing speed≤1 second;
4.The skateboard replace time≤15 mins/time(no inner nozzle brick,No manipulator);
5.The skateboard and outside nozzle average service life ≥12 times(no flow control)
6.Inner nozzle average service life ≥40 times (synchronize replaced with tapping hole);average service life ≥24 times(replace alone);
Model |
Unit |
ZHDZ-150B-00 |
ZHDZ-300B-00 |
External dimensions(A×B×H) |
mm |
1470×1200×410 |
1780×1500×430 |

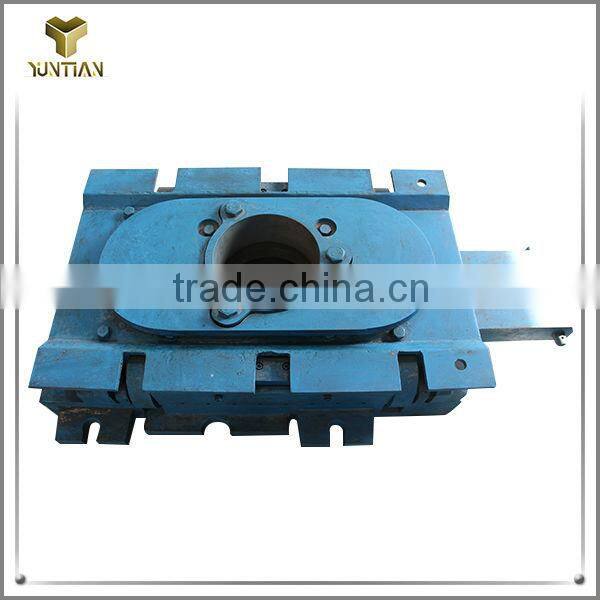

Skateboard dimensions |
mm |
600×310×50/75 |
700×350×50/80 |
Tapping hole dimension(D) |
mm |
120/150 |
140/180 |
|
Oil cylinder Stroke (L) |
mm |
230 |
280 |
Spring quantity |
piece |
14 |
16 |
Spring Specification |
mm |
61×81×13 |
61×81×13 |
Skateboard replace form |
|
off-kine replace |
off-kine replace |
Converter Size |
t |
60~150 |
150~300 |
