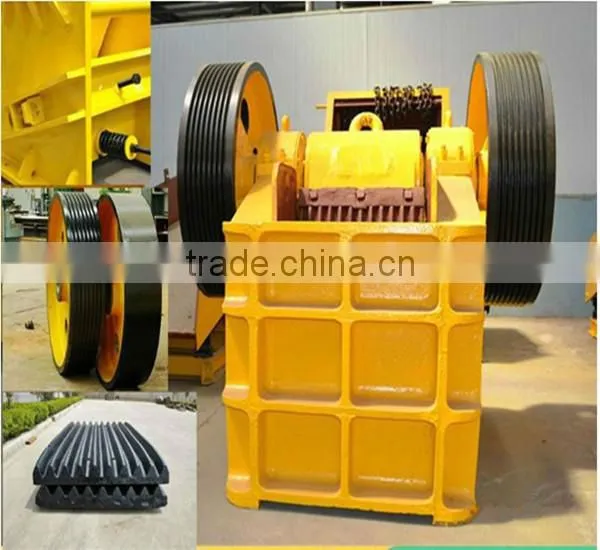

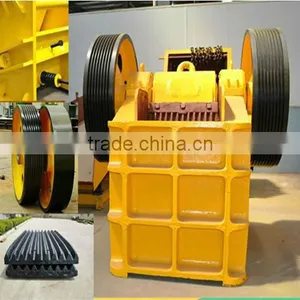

China new design Stone Jaw crusher with diesel generator
Stone Jaw crusher introduction:
Jaw crusher/stone jaw crusher/coal jaw crusher is a kind of heavy duty machine which can crush materials into even granularity. Our Jaw crusher/stone jaw crusher/coal jaw crusher machine has the characteristics of high reduction ratio, high productivity, simple structure, and reliable performance, etc. Jaw crusher/stone jaw crusher/coal jaw crusher is convenient to maintain and practical to use.
Jaw crusher can be used in mining industry, metallurgical industry, construction, smelting, road building, chemical industry, and other fields, for crushing various materials whose compressive strength is not more than 320 MPa.
Diesel generator for stone jaw crusher
Working Principle Of stone Jaw Crusher:
Firstly the machine’s V-belt and wheel are driven by the electric motor, then the movable jaw plate begins to move up and down by the eccentric shaft, when the movable jaw plate moves from top to bottom, the angle between fixed jaw plate and movable jaw plate becomes smaller, the material is crushed into pieces to reach the crushing target. When the movable jaw plate moves from bottom to top, the angle between fixed jaw plate and movable jaw plate becomes bigger, the crushed material is discharged from the bottom outlet of the crushing cavity.
Technical Parameter of stone jaw crusher :
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PE150××250 | 150×250 | 130 | 15-45 | 1-4 | 5.5 | 896×745×935 |
| PE250×300 | 250×300 | 150 | 15-55 | 3-6 | 7.5 | 1050×987×1000 |
| PE250×400 | 250×400 | 210 | 25-60 | 5-20 | 15 | 1215×1520×1030 |
| PE400×600 | 400×600 | 350 | 40-90 | 15-60 | 30 | 1650×1588×1050 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 45 | 1956×1918×1920 |
| PE600×900 | 600×900 | 500 | 60-125 | 90-180 | 55 | 2250×2733×2280 |
| PE800×900 | 800×900 | 600 | 80-140 | 100-220 | 75 | 2450×2950×2490 |
| PE750×1060 | 750×1060 | 630 | 60-150 | 110-380 | 110 | 2531×2455×2783 |
| PE900×1060 | 900×1060 | 700 | 100-160 | 180-380 | 110 | 2900×2657×2950 |
| PE900×1200 | 900×1200 | 750 | 110-165 | 220-450 | 132 | 3100×2760×3260 |
| PE1200×1500 | 1200×1500 | 950 | 115-195 | 250-500 | 220 | 3710×3446×4075 |
| PE1500×1800 | 1500×1800 | 1200 | 135-225 | 350-700 | 280 | 5100×4700×4300 |
| PEX150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 1310×1118×1145 |
| PEX250×750 | 250×750 | 210 | 15-50 | 15-30 | 22 | 1440×1751×1515 |
| PEX350×750 | 350×750 | 300 | 15-50 | 18-40 | 30 | 1485×1680×1648 |
| PEX250×1000 | 250×1000 | 210 | 15-60 | 15-60 | 30 | 1550×1964×1380 |
| PEX250×1200 | 250×1200 | 210 | 15-60 | 20-60 | 37 | 1530×1946×1380 |
| PEX300×1300 | 250×1300 | 250 | 25-60 | 10-65 | 55 | 2000×2320×1730 |
| PEX400×1200 | 300×1300 | 350 | 10-19 | 30-80 | 45 | 1628×2270×1651 |
Leadtime:
In 15-30days after the deposit
Packing:
standard packing, seaworthy packing, or as required
Before sale:
Be a good consultant and assistant of our customer to ensure our customer's investment will be rewarded with great profit.
1.Select the right model of equopment for customer.
2.Our service engineers would be ready for service 24 hours per day.
3.We will answer your qustion any time
4.Provide training for customer's technician
During sale:
Respect every customer and provide them convenience and reliability.We are devoted to help customer gain more.
1.Inspect before accept the products sent by us.
2.Assist our customer to make a constrution plan.
After sale
1.The installation and testing of equipment.
2.We would be ready for service 24 hours per day to accept your feedback .
3.we would provide maintaince if our product have problem.
Zhengzhou YinHai Mining Machinery equipment Co., Ltd. is a hi-tech, engineering group. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and other related devices. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future. We hold "Pursuing the YinHaiTechnology and Quality" as our management concept all the time. Relying on absorbing world leading crushing and powder processing technology, advanced management and quality control system, as well as our full efforts, YINHAI has earned high reputation among our customers.
How about the quality of our machine?
Our machine manufactured strictly according to national and international standard.
We take a test on every machine before delivery
How about price of machine?
We can give the lowest price than market one.
We do quotation of machine as soon as possible for any custome.
Discount of machine can be given according to quantity.
Note: Above technical parameters are just for reference, if you want to get more detailed information or if you have any trouble in selecting the suitable machine, please contact us.
