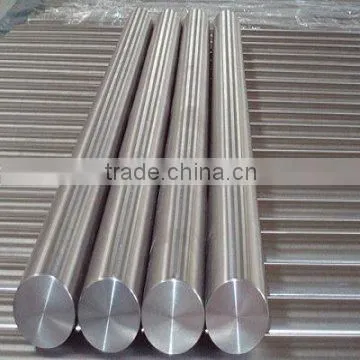

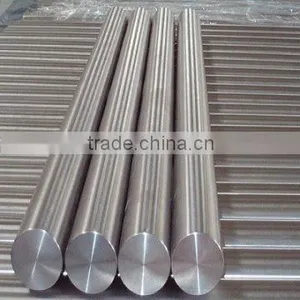

1:Product Name:ASTM 136 alloy titanium rod for surgical implants
2:Grade: Gr5Gr23
3:Size: 7.0-90mm*L
4:Standard: ASTM B348 ASTM F136
5:supply status: R or M or Y
6:Feature:
1)high strength.
2)fine corrosion resistance.
3)low density, light weight
4)high/low temperature resistance.
5)high resistance to strong acid.alkali
7:Application:medical use .machinery equipment. Electroplating equipment. medical.all kinds of precision Machinery Part etc
8:Quality And test: Strict test is indispensible,because we must insure our clients get the best product
Table1 The grade, supply status, and size of titanium product for surgical implants should be in according to table1
Grade | sorts | Supply status | Dimater/thickness/mm |
Gr1Gr2Gr3Gr4Gr5 TC4ELI TC20 |
Titanium sheet |
Y M | 0.8-4.75 |
R M | >4.75-25 | ||
Titanium bar | R M | >7.0-90 | |
Titanium silk | M | 1.0-7.0 | |
A: the mini thickness of titanium sheet is 0.3mm.the mini diameter of titanium silk is 0.5mm B: the max diameter of TC20 titanium bar is 100mm | |||
Table 2 mechanical properties in room temperature
Grade | Supply state | Diameter | Tensile strength Rm/MPa(>=) | Provision of non-proportional Extension strength Rp0.2/MPa(>=) | Break Elongation aA/%(>=) | Duction of cross sectional area Z/%(>=) |
Gr1 | M |
7-90 | 240 | 140 | 24 | 30 |
Gr2 | M | 400 | 275 | 20 | 30 | |
Gr3 | M | 500 | 380 | 18 | 30 | |
Gr4 | M | 580 | 485 | 15 | 25 | |
Gr5 |
M | 7-50 50-90 | 930 895 | 860 825 | 10 10 | 25 25 |
Gr23 | M
| 7-45 45-65 65-90 | 860 825 825 | 795 760 760 | 10 8 8 | 25 20 15 |
Product Advantage: First -class product . Most reasonable price The fastest delivery
Reminding: We are one of the leading titanium product suppliers in Baoji, which is named as titanium city in China. Our business tenet is: "Top quality, great integrity, clients first, good service. If you have any inquiry about titanium bar. please let me know. we will give you a satisfactory answer
