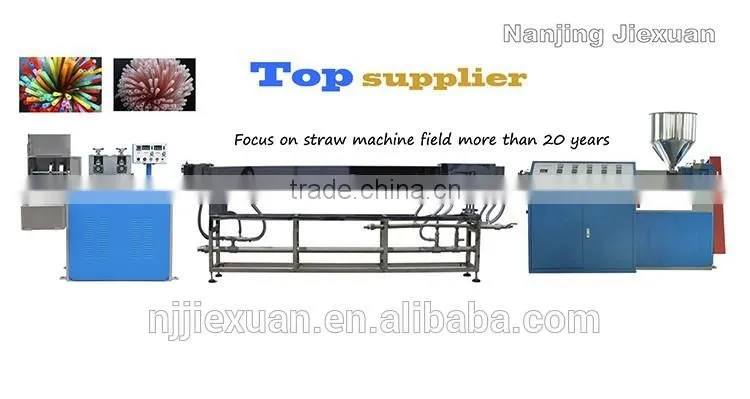

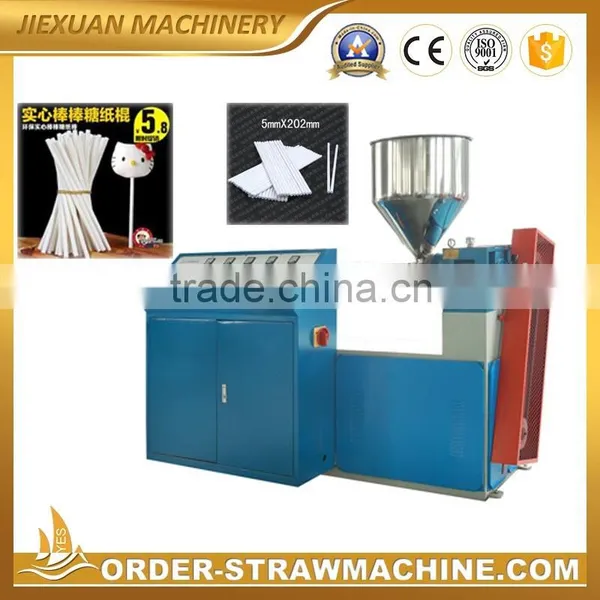

Help CenterAutomatic Lollipop Sticks Extruding Machine
Related Products
-
Lollipop Sticks Candy Bar Making MachineUS$ 10,500 - 14,500MOQ: 1 Set -
pp pe Material Small Pipes Extrusion LineUS$ 10,500 - 14,500MOQ: 1 Set
-
Plastic Cotton Bud Stick Making MachineUS$ 10,500 - 14,500MOQ: 1 Set
-
Multi Straws Packing MachineUS$ 12,500 - 13,000MOQ: 1 Set
-
Multiple Drinking Straw Bale Packaging MachineUS$ 12,500 - 13,500MOQ: 1 Set
automatic lollipop sticks extruding machine can be used with wide range applications:

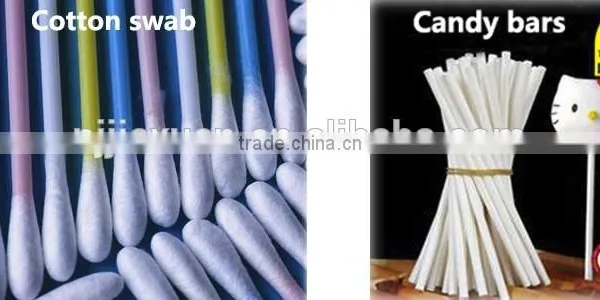

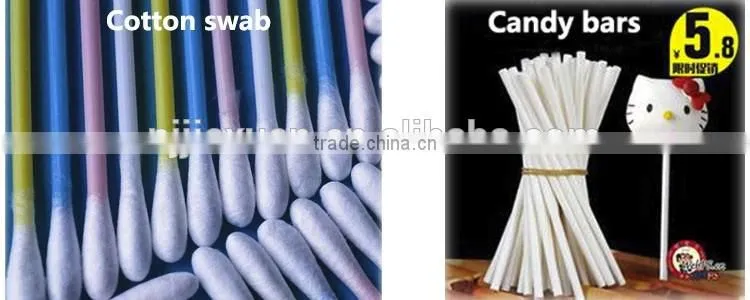

1.Food industry: producing drinking straws, Lollipop sticks, Coffee stirring stick etc.
2.The other industry: producing ballpen refill, Cotton swab sticks, brake pipe and some pipe use for the industry.
3.Easy operation of this production line, one worker is enough to operate it.
Cut-End90°/90°90°/45°90°/60°45°/45°60°/60

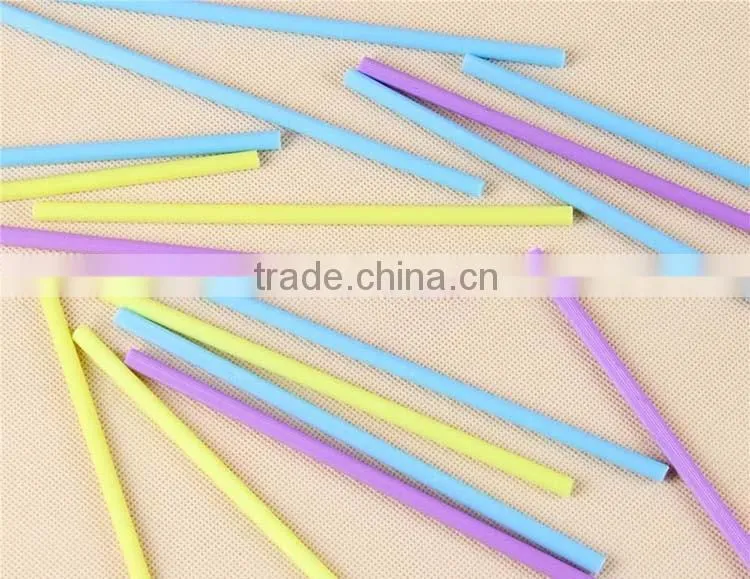

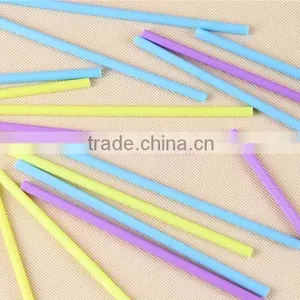

A wide range of color can be choosed :
One, two, three color can be choosen, and have spiral stripes and straight stripes can be choosed.
|
Driving motor |
Main motor:7.5kw frequency conversion Vice motor: 0.75kw frequency conversion Traction and cutting device :0.75kw×2 |
||||
Production Capacity |
Typical Capacity 20 to 25kg/h |
Drinking straws 50,000-60,000 pcs/h |
|||
Cotton swab sticks: 40000 pcs/h | |||||

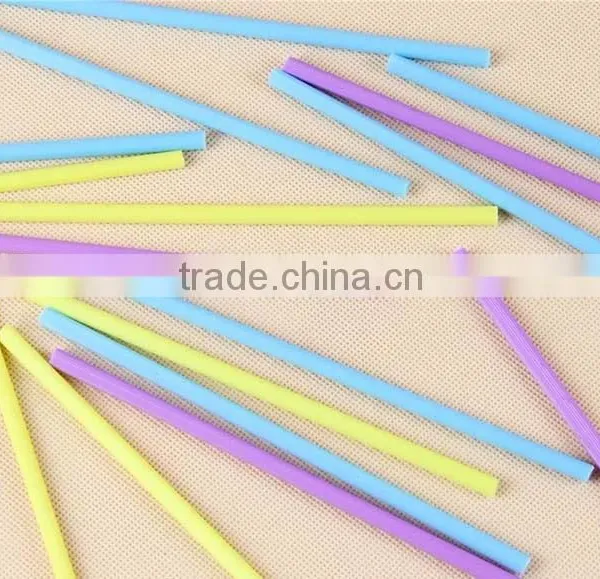

lollipop sticks:3000 pcs/h | |||||
Raw material: |
PP,PE |
||||
Straw specifications |
Diameter |
1-13mm |
|||
Length tolerance |
±0.1-1mm |
||||

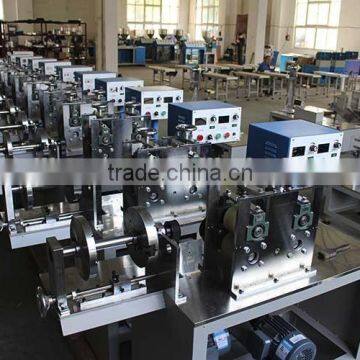

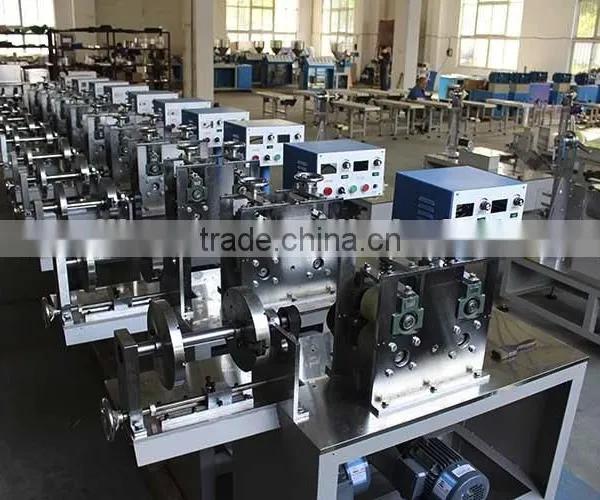

Cutting and traction device |
control by double frequency conversion |
0.75kw×2 |
|||
Main Cylinder Screw Shaft |
Main Screw shaft: diameter50mm Length/Diameter:28/1 Assist Screw shaft: diameter25mm Length/Diameter:25/1 |
||||

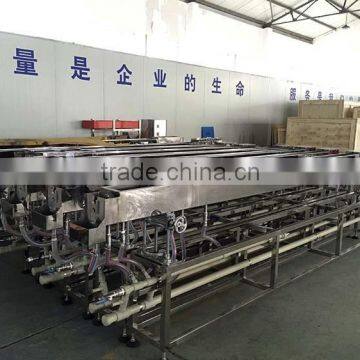

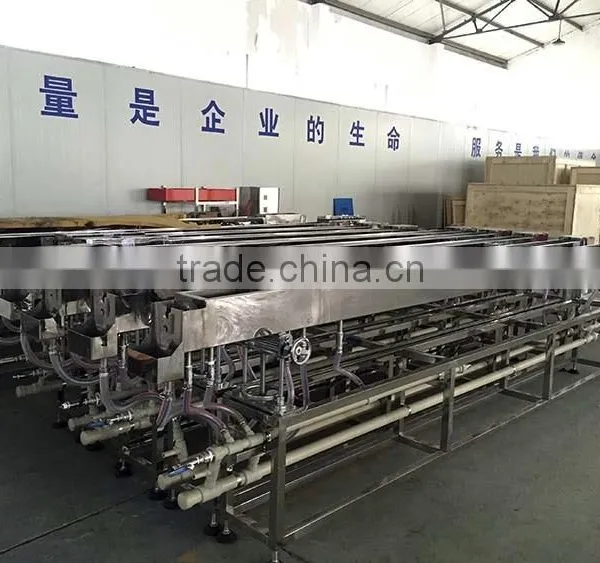

Vacuum Calibration and Cooling |
Method of vacuum fixed diameter |
Vacuum soaking |
|||
Length of the cooling cistern |
4.5m 5.5m can be choosen |
||||
1. Quick and professional pre-sales and after-sales services;
2. Factory quality controlled services;
3. Products fast delivery guarantee.
1. Q: Are you a factory or trading company?
We are factory and also have our own trading company.
2. Q: What makes you different from others?
(1)We are lifeful company and aims to build long terms business with you.
(2)We promise to reply to you within 8 hours - sometimes even immediately.
(3)As a manufacturer, we can ensure the delivery time and after-sales services.
3. Q: How can I know the status of my order?
We will send you infoand photos at different production stage of your order.
You will get the latest information in time.
4. Q: Where is your factory located at? How can I visit there?
Our factory is located in Nanjing, Jiangsu Province, China,
(1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
(2)You can fly to Shanghai Pudong International Airport then come to Nanjing by
High-speed railway, then we will pick you up in the railway station.
