Help CenterPlastic Cotton Bud Stick Making Machine
Related Products
-
Automatic Lollipop Sticks Extruding MachineUS$ 10,500 - 14,500MOQ: 1 Set -
Lollipop Sticks Candy Bar Making MachineUS$ 10,500 - 14,500MOQ: 1 Set
-
pp pe Material Small Pipes Extrusion LineUS$ 10,500 - 14,500MOQ: 1 Set
-
Multi Straws Packing MachineUS$ 12,500 - 13,000MOQ: 1 Set
-
Multiple Drinking Straw Bale Packaging MachineUS$ 12,500 - 13,500MOQ: 1 Set

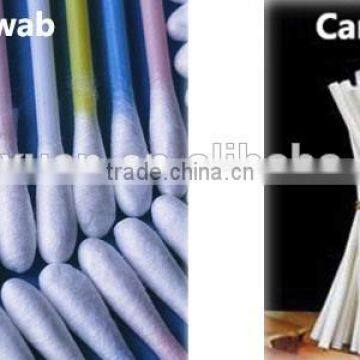

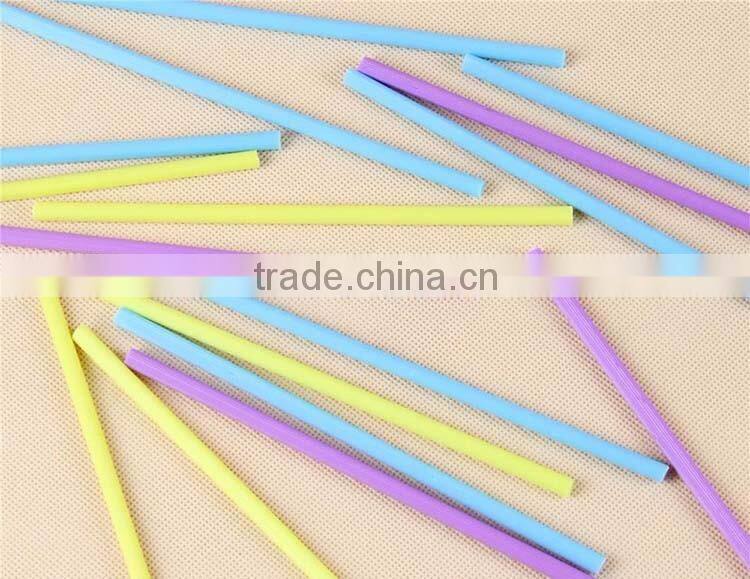

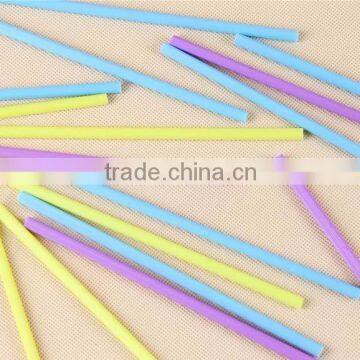

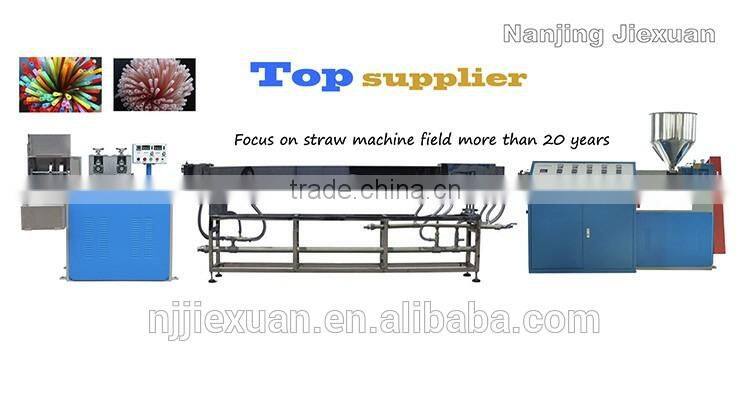

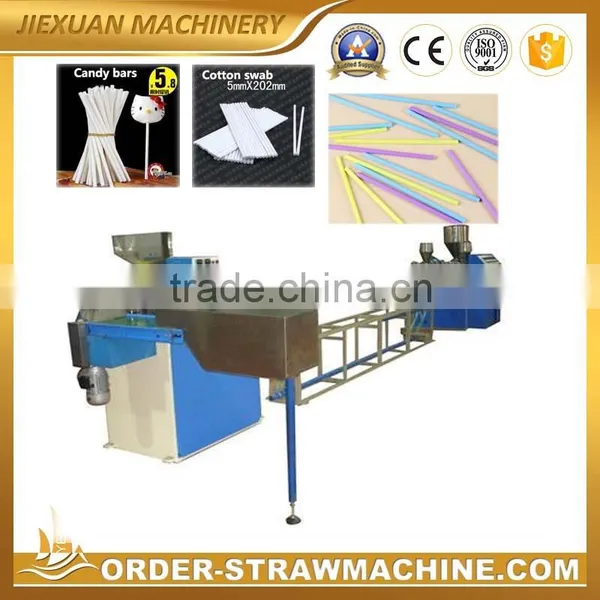

01 series plastic cotton bud stick making machine uses polypropylene (PP) as raw materials, with the use of masterbatch, after melting, extrusion, shaping, cooling, pulling, cutting, then produce colorless, one color, two-color, three-color drink straws with a wide range of applications such as lollipop sticks, cotton bud stick, pen refills, coffee stirrers and other industrial usage.
- Wide application: drinking straw, lollipop stick, pen tube, cotton bud stick, medical tube, all kinds of toys tube making, etc;
- Easy to operate. One operator is enough to run the whole line;
- Cut form: Diversified cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°;
- With stable output and wide range of color options.
Quality Construction Throughout
- The gears and bearings are precision ground and hardened to ensure smooth and quiet operations.
- The screw and barrel is manufactured from Aluminum Chromolybdenum alloy steel and is stress relieved.
- The die undergoes nitride hardening treatment for a long service time.
- The water tank and the surface of cutting machine are made of 304 stainless steel.
- The main extruder’s screw designed to suit plastic material specified. Tube die head assembly manufactured in tool steel.

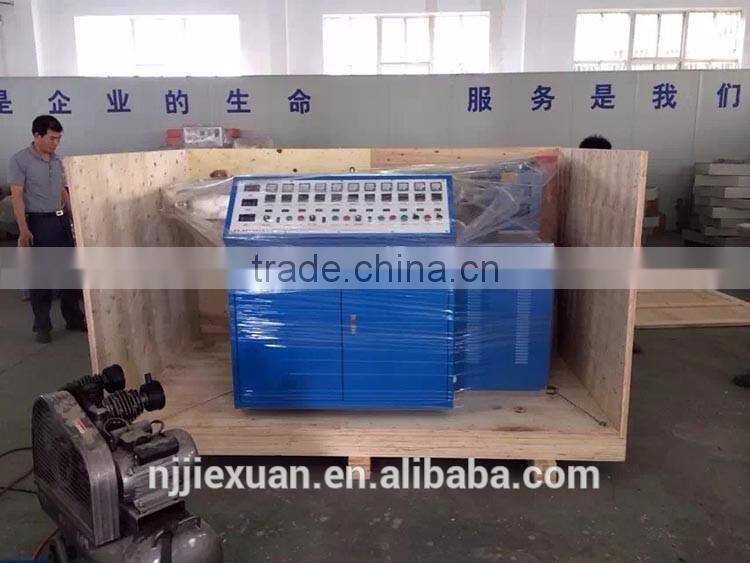

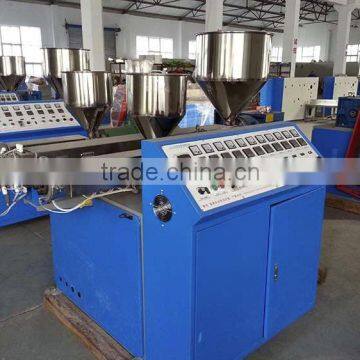

plastic cotton bud stick making machine
|
Driving motor |
Main motor:7.5kw frequency conversion Traction and cutting device :0.75kwX2 |
||||
Production Capacity |
Capacity: 20 to 25kg/h |
Drinking straws:50000-60000pcs/h |
|||
Cotton swab sticks: 60,000 pcs/h | |||||
Ballpen refills: 40,000 pcs/h | |||||
Raw material: |
PP,PE |
||||
Straw specifications |
Diameter |
2-13mm |
|||
Length tolerance |
±0.1-1mm |
||||
Cutting and traction device |
control by double frequency conversion |
0.75kw×2 |
|||
Main Screw |
Main Screw: diameter 50 mm Length/Diameter: 28/1 |
||||
Machine size |
2.2m*1m*1.3m |
||||
| Complete line size | 10m*1m*1.7m | ||||
| Machine weight | 400kg | ||||
| Complete line weight | 1000kg | ||||
1. Quick and professional pre-sales and after-sales services;
2. Factory quality controlled services;
3. Products fast delivery guarantee.
1. Q: Are you a factory or trading company?
We are factory and also have our own trading company.
2. Q: What makes you different from others?
(1)We are lifeful company and aims to build long terms business with you.
(2)We promise to reply to you within 8 hours - sometimes even immediately.
(3)As a manufacturer, we can ensure the delivery time and after-sales services.
3. Q: How can I know the status of my order?
We will send you infoand photos at different production stage of your order.
You will get the latest information in time.
4. Q: Where is your factory located at? How can I visit there?
Our factory is located in Nanjing, Jiangsu Province, China,
(1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
(2)You can fly to Shanghai Pudong International Airport then come to Nanjing by
High-speed railway, then we will pick you up in the railway station.
