Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Under Slung Generator

Under Slung Generator

Name: Under Slung Generator
Brand: SCGC
SKU: 124614529
Availability: InStock

US$ 5,000 - 9,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

SCGC

Model Number:

CIMC-3EV,SCGC-3GL,SCGC-3GP,SCGC-3KB

Contact Supplier Request Quote Chat Now

Shanghai CIMC Generating Set Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name SCGC

Model Number CIMC-3EV,SCGC-3GL,SCGC-3GP,SCGC-3KB

Output Type AC Three Phase

Speed 1800 r/min

Frequency 60HZ

Rated Power 15KW

Rated Voltage 460V

Rated Current 23.5A

Under-slung generator set for ISO reefer container (patented products)

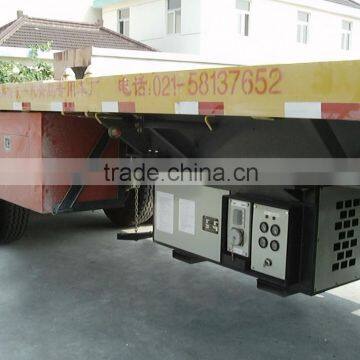

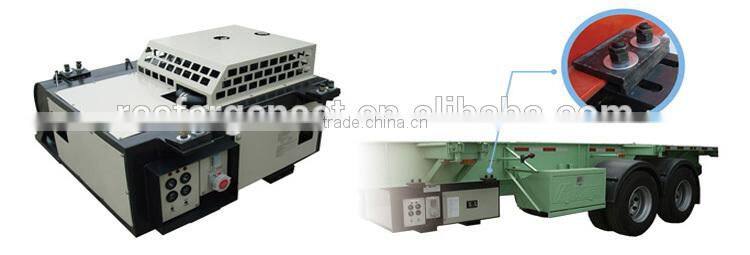

The under-slung generator set is designed for center-mounting to the chassis with quick disconnect clips for easy installation and removal. It is a completely welded steel structural assembly designed to withstand minimum 5 g’s acceleration forces in all directions. The forklift pockets are provided at the bottom of the generator set.

Generator set model			SCGC-3GL	CIMC-3EV	SCGC-3GP	SCGC-3KB
Rated power			15 kW
Rated voltage			460V or 460/230V Dual voltage
Rated frequency			60 Hz
Overall dimension		Length (mm)	1388	1360	1430	1360
		Width (mm)	1580	1580	1580	1580
		Height (mm)	587+205	577+210	600+250	577+210
Weight			780 kg (Without oil and coolant)
Fuel tank capacity			190 L
Fuel consumption			1.5 - 2.5 L/h (Loading reefer container)
Oil tank capacity			8 - 10 L
Coolant volume			8 - 10 L (Including reserve tank)
Operation temperature range			-26℃ - 55℃
Engine	Model		4L22BD-RF	4TNV88-BGGE	404D-22G	V2203-E2BG
	Manufacturer		LAIDONG	YANMAR	PERKINS	KUBOTA
	Type		Vertical, 4-cycle water-cooled diesel engine
	Number of cylinder		4	4	4	4
	Bore (mm)		85	88	84	87
	Stroke (mm)		95	90	100	92.4
	Total displacement (L)		2.156	2.19	2.216	2.197
	Rated output (kW)		23.1	23.7	24.3	24.2
	Rated speed		1800 r/min
	Air cleaner type		Heavy-duty oil bath filter air cleaner
	Starting system		12VDC-1.4kW Starting motor
	Starting aid		12VDC- 500W Air heater
	Charging generator		12V-40A Charging generator
Generator	Model		RF-15-CIMC Specific generator
	Manufacturer		Marathon(China)
	Insulation class		F/H
	Excitation method		Brushless self-excitation
Control system	Control unit		ERS or HGM1750 or HGM1780
	Instrument		Hour meter/Temperature gauge/Oil pressure gauge/Ammeter/indicator or LCD
	Protection feature		Low oil pressure,High coolant temperature,Low coolant level, Generator short circuit or over load
	Generator set Control		ON/OFF switch,PREHEAT/START switch
