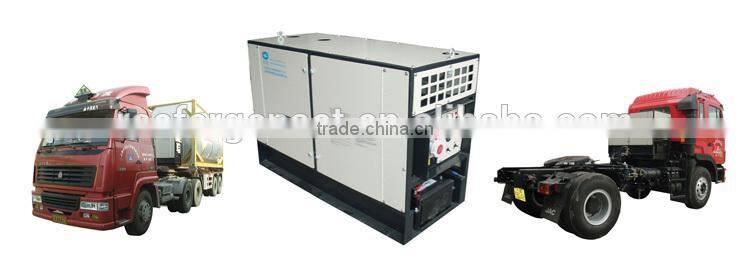

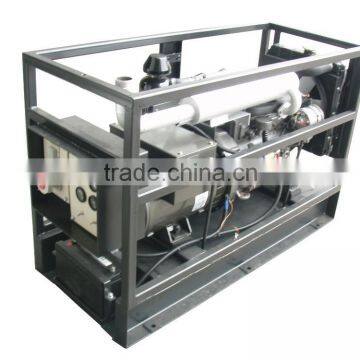

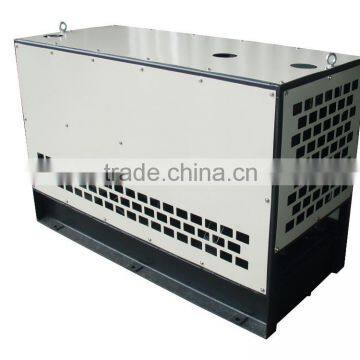

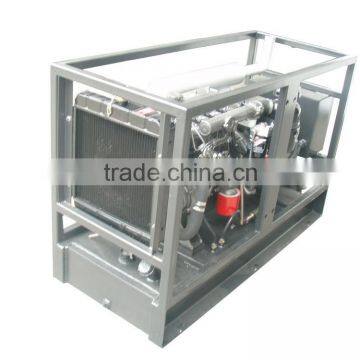

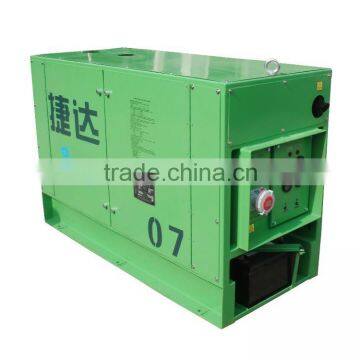

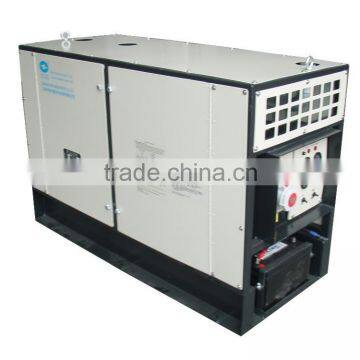

Rear-cab mount generator set for ISO reefer container (patented products)
The rear-cab mount generator set is designed for mounting to the rear-cab of container truck with the steel platform and six M16 bolts for easy installation and removal. It is a completely welded steel structural assembly designed to withstand minimum 5 g’s acceleration forces in all directions. The two M16 lifting eyes are provided at the top of the generator set.
Generator set model |
SCGC-2GL |
CIMC-2EV |
SCGC-2GP |
SCGC-2KB |
||
Rated power |
15 kW |
|||||
Rated voltage |
460V or 460/230V Dual voltage |
|||||
Rated frequency |
60 Hz |
|||||
|
Overall dimension |
Length (mm) |
1580 |
||||
Width (mm) |
660 |
|||||
Height (mm) |
1000 |
|||||
Weight |
750 kg (Without oil and coolant) |
|||||
Fuel tank capacity |
190 L |
|||||
|
Fuel consumption |
1.5 - 2.5 L/h (Loading reefer container) |
|||||
Oil tank capacity |
8 - 10 L |
|||||
Coolant volume |
8 - 10 L (Including reserve tank) |
|||||
Operation temperature range |
-26℃ - 55℃ |
|||||
|
Engine |
Model |
4L22BD-RF |
4TNV88-BGGE |
404D-22G |
V2203-E2BG |
|
|
Manufacturer |
LAIDONG |
YANMAR |
PERKINS |
KUBOTA |
||
Type |
Vertical, 4-cycle water-cooled diesel engine |
|||||
Number of cylinder |
4 |
4 |
4 |
4 |
||
Bore (mm) |
85 |
88 |
84 |
87 |
||
Stroke (mm) |
95 |
90 |
100 |
92.4 |
||
Total displacement (L) |
2.156 |
2.19 |
2.216 |
2.197 |
||
Rated output (kW) |
23.1 |
23.7 |
24.3 |
24.2 |
||
Rated speed |
1800 r/min |
|||||
Air cleaner type |
Heavy-duty oil bath filter air cleaner |
|||||
Starting system |
12VDC-1.4kW Starting motor |
|||||
Starting aid |
12VDC- 500W Air heater |
|||||
Charging generator |
12V-40A Charging generator |
|||||
|
Generator |
Model |
RF-15-CIMC Specific generator |
||||
Manufacturer |
Marathon(China) |
|||||
Insulation class |
F/H |
|||||
Excitation method |
Brushless self-excitation |
|||||
|
Control system |
Control unit |
ERS or HGM1750 or HGM1780 |
||||
Instrument |
Hour meter/Temperature gauge/Oil pressure gauge/Ammeter/indicator or LCD |
|||||
Protection feature |
Low oil pressure,High coolant temperature,Low coolant level, Generator short circuit or over load |
|||||
Generator set Control |
ON/OFF switch,PREHEAT/START switch |
|||||
We are looking for sales and after-sales agents worldwide for these products.
