Product Details
Place of Origin: | Guangdong, China | Brand Name: | RION | Model Number: | SCA126T-CAN |
Usage: | Position Sensor | Theory: | Other | Output: | Digital Sensor |
Packaging Details
1pcs/box ,100pcs/ctn
Product Description
Tilt and Inclination Measurements CANBus Tilt Sensor Industrial Angle Sensor
Technical Data
Parameter | Condition | SCA126T-10 | SCA126T-30 | SCA126T-60 | SCA126T-90 | Unit |
Measuring range |
| ±10 | ±30 | ±60 | ±90 | ° |
Measuring axis |
| X,Y | X,Y | X,Y | X,Y |
|
Resolution |
| 0.01 | 0.02 | 0.03 | 0.04 | ° |
Absolute accuracy |
| 0.02 | 0.05 | 0.08 | 0.1 | ° |
Long term stability |
| 0.05 | 0.05 | 0.05 | 0.05 |
|
Zero temperature coefficient | -40~85° | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
Sensitivity temperature coefficient | -40~85° | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
Power on time |
| 0.5 | 0.5 | 0.5 | 0.5 | S |
Response time |
| 0.05 | 0.05 | 0.05 | 0.05 | S |
Output rate | 5Hz,15Hz,35Hz,50Hz can be setting | |||||
Output signal | CAN OPEN | |||||
EMC | According to EN61000 and GBT17626 | |||||
MTBF | ≥50000hours/times | |||||
Insulation Resistance | ≥100M | |||||
Shockproof | 100g@11ms,3Times/Axis(half sinusoid)) | |||||
Anti-vibration | 10grms,10~1000Hz | |||||
Protection glass | IP67 | |||||
Cables | Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.4mm2 | |||||
Weight | 80g(without cable) |
*This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters
Electronic Characteristics
Parameter | Condition | Min | Standard | Max | Unit |
Power supply | Standard | 9 | 12,24 | 36 | V |
| customized |
| 5 |
| V |
Working current | non-loaded |
| 30 |
| mA |
Working temperature |
| -40 |
| +85 | ℃ |
Store temperature |
| -55 |
| +125 | ℃ |
SCA126T is a CAN 2.0B output dual-axis inclinometer launched by RION company to the industrial field control , using industry standard isolated CAN transceiver, built-in high-precision 16bit A / D differential converter, by 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt.
Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.
Features:
- Dual-Axis Inclinometer
- Measuring Range :±1~±90° optional
- Accuracy : refer to the technical data
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- Resolution: 0.01°
- IP67 protection class
- Highly anti-vibration performance >2000g
- Direct lead cable interface
- Small size : 66×44×24mm(customized)
- Output mode: CAN 2.0B
Application:
- Satellite positioning Search
- Rail-mobile monitoring
- engineering mechanical measurement of dip angle
- oil-well drilling equipment
- Radar detection of vehicle platform
- Underground drill posture navigation
- Gun Barrel angle measurement in early shooting
- Based on the angle direction measurement
- Satellite communications vehicle posture detection
- Shield pipe jacking application
- Ship’s navigation posture measurement
- Geological equipment inclined monitoring

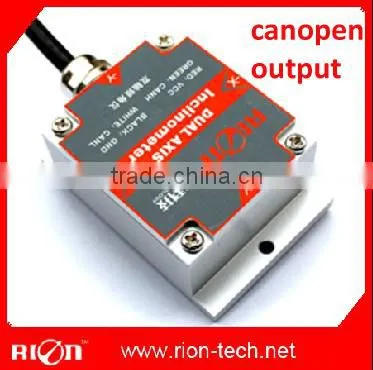

Product Show
order information
Dimmension
Measurement Direction
T/T/Paypal/West Union
- Packaging: carton with sponge
- Delivery time: within 7 business days for common order after we receive the full payment
- Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.Our Services
