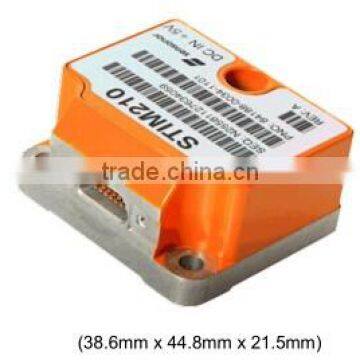

STIM210 Ultra High Performance MEMS Gyro Module Excellent in Vibration And Shock
Desc.
STIM210 is a small, tactical grade, affordable, robust and reliable,
ultra high performance (Bias Stability 0.5°/h, ARW 0.15°/√h)
MEMS gyro module with up to 3 axes.
An integrated 32-bit microcontroller enables flexible user configuration.
Electronic axis alignment is standard.
Features
- Miniature package
- ITAR free
- Excellent performance in vibration and shock
- Excellent environmental robustness
- 1, 2 or 3 axes offered in same package
- Electronically calibrated axis alignment
- Plug & play high-level RS422 interface
- 24 bits resolution
- Single-crystal silicon technology
- Low bias drift
- Low noise
- Fully configurable:
- - 5 different sampling rates available
- - 5 different bandwidths available
- - LP filter -3dB frequency can be set individually for each axis
- - RS422 protocol, bit rate and line termination
- - Selectable output unit: angular rate [deg/s] or incremental angle [deg]
- Continuous self-diagnostics
- Navigation
- Stabilization
- Industrial
- Agriculture
- Aerospace
- Maritime
- Subsea
- Defense
Performance
| Parameter | Min | Typ | Max | Unit | Comment |
| Range | ±400 | °/s | Other ranges available on request | ||
| Output | 24 | bit | RS422 | ||
| Bias instability | 0.5 | °/h | |||
| Angular random walk | 0.15 | °/√h | |||
| Sampling frequency | 2000 | SPS |
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products IMU...etc
Other more information please visit our website :
Now please contact us through below methods for your any requirement or comments !
Contact person : Ms kity(sales)
SHEN ZHEN RION TECHNOLOGY CO.,LTD
Factory Address:
4th Floor Block 1, COFCO(FUAN)WIT Valley Innovation Park , Da Yang Road 90, Fuyong Distict, Shenzhen City, China
Tel : +86-755-29657137 ext 807 Cell phone: 15625295088
Fax : +86-755-29123494 MAIL: kiting AT
Skype: sz_rion_tech MSN: tradeofchina AT
RIONWEB: ALIWEB: http://rion.en.china.cn
Send Inquiry to This Supplier
