High Dynamic Attitude and Heading Reference System (AHRS) With Long Life Working 11 years , IP67
AH106B is a MEMS developed high accuracy six free degree inertial measurement unit. It consist of 3 axis MEMS gyro, 3 axis MEMS accelerometer,. 3 axis gyro is to measue absolute anglular speed in 3 directions of subject, it will output angle data proceed by RION’s patented technology. It could measure horizontal angle, the gyro drift is less than 0.5 deg/hr. 3 axis accelerometer is to measuring acceleration in 3 directions. It is main role to sense the horizontal inclination and to ammend the pich and roll drift of gyro. With internal 24 AD signal processor, it could proceed noise reduce, temperature compensation, non-linearity calibration and cross coupling compensation in full temperature range(-40 deg to 85 deg). AH106T miniature six axis AHRS module could apply widly in Model aircraft unmanned aerial vehicle, robot, camera pan-tilt-device system, antenna pan-tilt-device system, underwater equipement, vitual reality, body motion ananlysis and kinds of equipments require low cost and high dynamic 3D attitude measurement.
Features
- Low noise
- Light weigth
- Compact and light weight design
- Longevity of service
- Strong stability
- Output 3 axis acceleration & 3 axis gyro
- Wide temperature range
- DC9~36V power supply
- Low vibration performance excellence
- RS232/RS485/TTL output optional
- Up to 100 Hz update rate
Specification

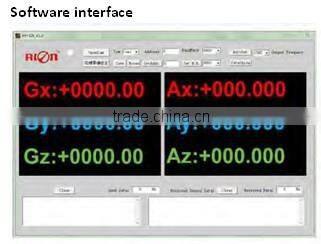

parameters | Condition | ||
Gyro range(°/s) | +-50 | +-150 | +-300 |
Accelerometer range | +-2 | +-8 | +-40 |
Gyro measuring axis | X, Y, Z (optional) | X, Y, Z (optional) | X, Y, Z (optional) |
Accelerometer measuring axis | X, Y, Z (optional) | X, Y, Z (optional) | X, Y, Z (optional) |
Output rate(Hz) | 100 | 100 | 100 |
Resolution (°/s) | 0.1 | 0.1 | 0.1 |
Annual scale factor stability | 300(<1000) | 300(<1000) | 300(<1000) |
Scale factor temp. Coefficient(ppm/℃) | 100 | 100 | 100 |
Gyro nonlinearity | 0.1% of FS | 0.1% of FS | 0.1% of FS |
Accelerometer nonlinearity | <0.1 | <0.5 | <0.6 |
Temp. Compensation | Full temp. range | Full temp. range | Full temp. range |
Temp. Drift(°/s) | <+-0.2 | <+-0.1 | <+-3 |
Starting time(ms) | 5 | 5 | 5 |
Current(mA) | 70 | 70 | 70 |
Work temp.(℃) | -40~+85 | -40~+85 | -40~+85 |
Storage temp.(℃) | -55~+100 | -55~+100 | -55~+100 |
Capacitive load(Pf) | 1000 | 1000 | 1000 |
Vibration(g) | 5~10 | 5~10 | 5~10 |
Shock(g) | 200g pk, 2ms, sine | 200g pk, 2ms, sine | 200g pk, 2ms, sine |
Working life | 11 years | 11 years | 11 years |
Output signal | RS232/RS485/RS422/TTL/SPI | ||
MTBF | >50000hr/time | ||
IR | >100mge | ||
Shock resistance | 100g@11ms, 3times/axis(half sinusoid) | ||
Resustabce to vibration | 10grms, 10~1000Hz | ||
Water proof | IP67 | ||
Connector | 5 pins air-plug, matched with 1m cable | ||

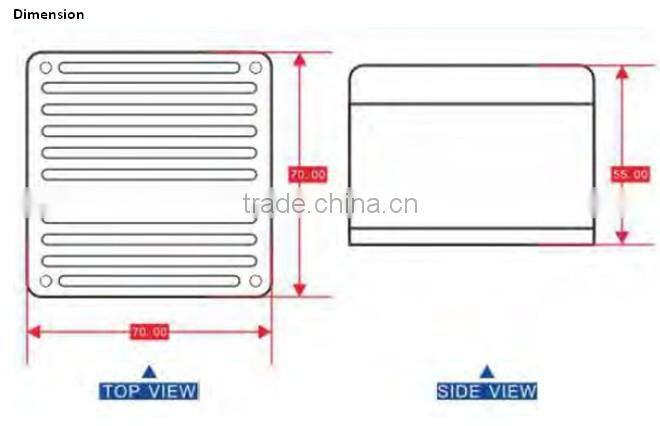

Weight(g) | 110(excluding cable) | ||
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
Other more information please visit our website :
