Factory Price Low Cost Tip Over Switch Sensor With Alarm For Biaxial Hydraulic Engineering Machinery Leveling Application
Description
LCA341A isRION company integrated control core unit of Finland and developed a dual axis digital type tilt switch sensor which built-in relay output circuit , application for level safety alarming and platform level detection ...etc related industry field . Alarm threshold value is pre-setable. when the inclination exceed set alarm value, it will output a no contact relay signal(drive current 1A) , to open the valve to control the corresponding hydraulic leg leveling . Product design precision , further compensation on the temperature and linearity , integrated the comprehensive protection function for the short circuit, instant high voltage , polarity ,swell ...etc. Suitable for all kinds of harsh industrial environment.Also adopts industrial-gradeMCU, three proofing PCB board, imported cable, wide temperature metal shell...etc all kinds of measures to improve the industrial level of the product on it’s reliability and stability .
Feature
- Single/dual axis
- Accuracy: refer to parameter
- RS232 set alarm threshold
- Replay output
- Wide working temp.:-40~+85℃
- Resolution: 0.01°
- IP67
- High anti-vibration>2000g
- Direct lead cable interface
- Adjustable alarm value
- zero set function
- positive/negative output optional
- DC 9~36V wide Voltage input

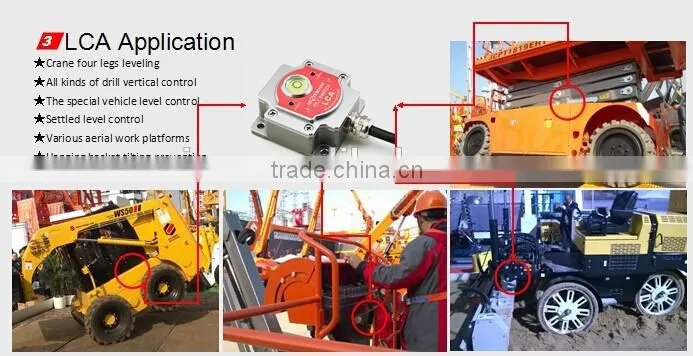

Application
- Engineering vehicles automatic leveling
- Railway locomotive monitoring
- All kinds of engineering machinery angle measurement
- Oil drilling equipment
- Radar vehicle platforms detection
- Underground drill position navigation
- Navigation attitude measuring
- Shield pipe jacking application
- Geological equipment slope monitoring
- Intelligent excavator/crane /pile machine/drill/special vehicle/mining vehicle/track/fire/aerial vehicles /bridge machine
Measuring rang |
±15 |
° |
Measuring axis |
X ,Y axis |
|
Resolution |
0.05 |
° |
Absolute accuracy |
0.1 |
° |
Long term stability |
0.05 |
|
|
Zero temperature coefficient |
-40~85° ±0.006 |
°/℃ |
Sensitivity temperature coefficient |
-40~85° ≤100 |
ppm/℃ |
Power on time |
0.1 |
S |
Response time |
0.2 |
s |
EMC |
According to EN61000 and GBT17626 |
MTBF |
≥50000 hours/time |
Insulation Resistance |
≥100M |
Shockproof |
100g@11ms,3Times/Axis(half sinusoid)) |
Anti-vibration |
10grms,10~1000Hz |
Protection glass |
IP67 |
Cables |
Standard 1M length,wearproof,grease proofing,wide temperature, Shielded cables 4*0.4mm2 |
Weight |
150g(without cable) |
Electronic Characteristics
Power supply |
Standard |
9 |
12,24 |
36 |
V |
Alarm output current |
|
|
|
1000 |
M A |
Working current |
No-load |
|
40 |
|
M A |
Working temperature |
|
-40 |
|
+85 |
℃ |
Store temperature |
|
-55 |
|
+125 |
℃ |
