Home > Products > reefer genset > Side-mount Generator Set for Reefer Container
Side-mount Generator Set for Reefer Container
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SCGC | |
| Model Number | CIMC-3EVS,SCGC-3GLS,SCGC-3GPS,SCGC-3KBS | Output Type | AC Three Phase | |
| Speed | 1800 r/min | Frequency | 60Hz | |
| Rated Power | 15kW | Rated Voltage | 460V | |
| Rated Current | 23.5A |
Product Description
Specifications

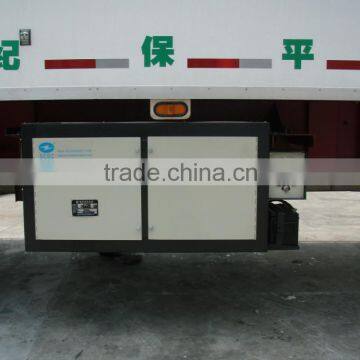

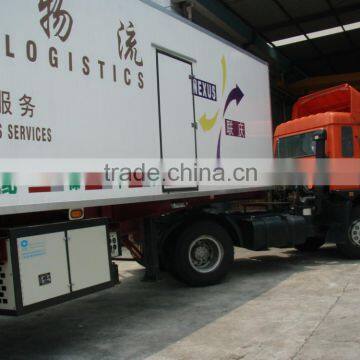

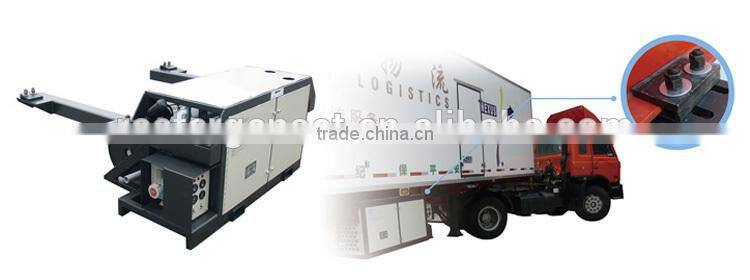

The side-mount generator set is designed for side-mounting to the chassis with quick disconnect clips
Side-mount generator set for ISO reefer container (patented products)

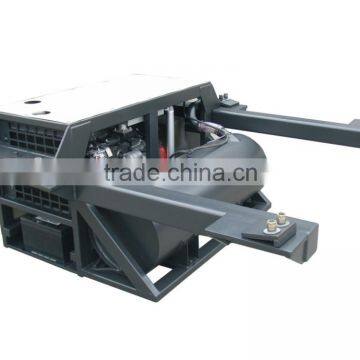

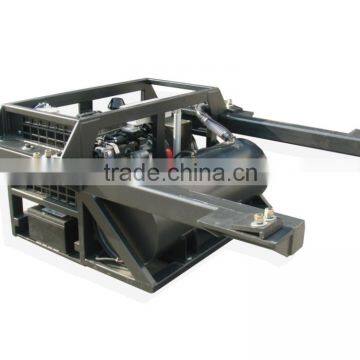

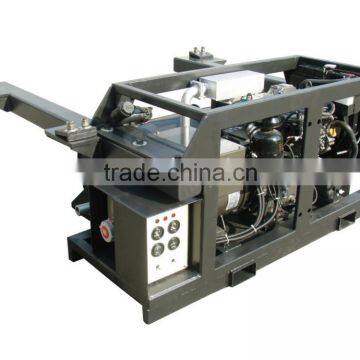

The side-mount generator set is designed for side-mounting to the chassis with quick disconnect clips for easy installation and removal. It is a completely welded steel structural assembly designed to withstand minimum 5 g’s acceleration forces in all directions. The forklift pockets are provided at the bottom of the generator set.
Generator set model | SCGC-3GLS | CIMC-3EVS | SCGC-3GPS | SCGC-3KBS | ||
Rated power | 15 kW | |||||
Rated voltage | 460V or 460/230V Dual voltage | |||||
Rated frequency | 60 Hz | |||||
Overall dimension | Length (mm) | 1670 | 1670 | 1670 | 1670 | |
Width (mm) | 1950 | 1950 | 1950 | 1950 | ||
Height (mm) | 587+205 | 577+210 | 600+250 | 577+210 | ||
Weight | 810 kg (Without oil and coolant) | |||||
Fuel tank capacity | 190 L | |||||
Fuel consumption | 1.5 - 2.5 L/h (Loading reefer container) | |||||
Oil tank capacity | 8 - 10 L | |||||
Coolant volume | 8 - 10 L (Including reserve tank) | |||||
Operation temperature range | -26℃ - 55℃ | |||||
Engine | Model | 4L22BD-RF | 4TNV88-BGGE | 404D-22G | V2203-E2BG | |
Manufacturer |
LAIDONG | YANMAR |
PERKINS |
KUBOTA | ||
Type | Vertical, 4-cycle water-cooled diesel engine | |||||
Number of cylinder | 4 | 4 | 4 | 4 | ||
Bore (mm) | 85 | 88 | 84 | 87 | ||
Stroke (mm) | 95 | 90 | 100 | 92.4 | ||
Total displacement (L) | 2.156 | 2.19 | 2.216 | 2.197 | ||
Rated output (kW) | 23.1 | 23.7 | 24.3 | 24.2 | ||
Rated speed | 1800 r/min | |||||
Air cleaner type | Heavy-duty oil bath filter air cleaner | |||||
Starting system | 12VDC-1.4kW Starting motor | |||||
Starting aid | 12VDC- 500W Air heater | |||||
Charging generator | 12V-40A Charging generator | |||||
Generator |
Model | RF-15-CIMC Specific generator | ||||
Manufacturer | Marathon(China) | |||||
Insulation class | F/H | |||||
Excitation method | Brushless self-excitation | |||||
Control system | Control unit | ERS or HGM1750 or HGM1780 | ||||
Instrument | Hour meter/Temperature gauge/Oil pressure gauge/Ammeter/indicator or LCD | |||||
Protection feature | Low oil pressure,High coolant temperature,Low coolant level, Generator short circuit or over load | |||||
Generator set Control | ON/OFF switch,PREHEAT/START switch | |||||
We are looking for sales and after-sales agents worldwide for these products.
