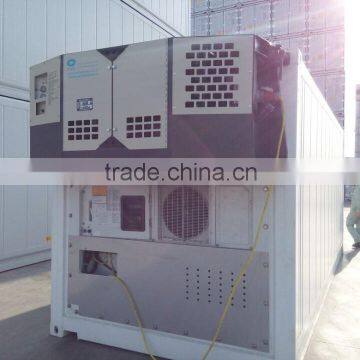

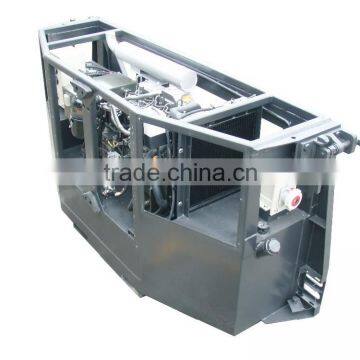

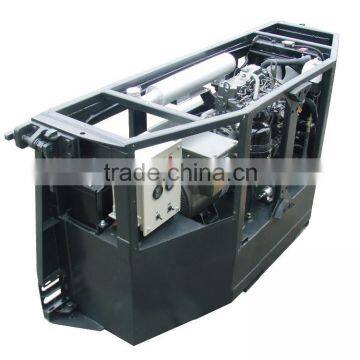

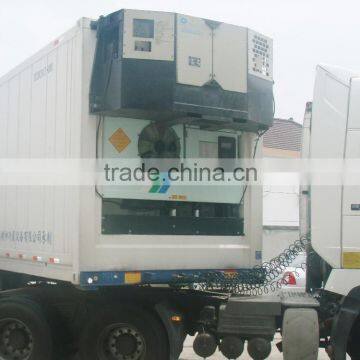

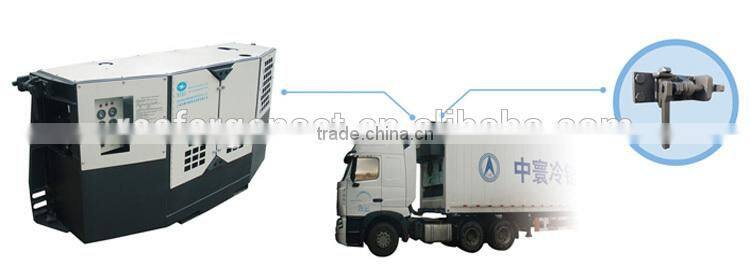

Clip-on generator set for ISO reefer container (patented products)
The clip-on generator set is designed for mounting to the upper front structure of an ISO container. The design incorporates a quick connection to the upper container corner castings with mounting clamps. Additional attaching points on the container vertical structural members provide a secure mounting arrangement. It is a completely welded steel structural assembly designed to withstand minimum 5 g’s acceleration forces in all directions. The forklift pockets are provided at the bottom of the generator set. The forklift pocket ends are close to prevent refrigeration unit damage
Generator set model |
SCGC-1GL |
CIMC-1EV |
SCGC-1GP |
SCGC-1KB |
||
Rated power |
15 kW |
|||||
Rated voltage |
460V or 460/230V Dual voltage |
|||||
Rated frequency |
60 Hz |
|||||
|
Overall dimension |
Length |
2310 mm |
||||
Width |
660 mm |
|||||
Height |
1080 mm |
|||||
weight |
880 kg (Without oil and coolant) |
|||||
Fuel tank capacity |
390 L |
435 L |
390 L |
435 L |
||
|
Fuel consumption |
1.5 - 2.5 L/h (Loading reefer container) |
|||||
Oil tank capacity |
8 - 10 L |
|||||
Coolant volume |
8 - 10 L (Including reserve tank) |
|||||
Operation temperature range |
-26℃ - 55℃ |
|||||
|
Engine |
Model |
4L22BD-RF |
4TNV88-BGGE |
404D-22G |
V2203-E2BG |
|
|
Manufacturer |
LAIDONG |
YANMAR |
PERKINS |
KUBOTA |
||
Type |
Vertical, 4-cycle water-cooled diesel engine |
|||||
Number of cylinder |
4 |
4 |
4 |
4 |
||
Bore (mm) |
85 |
88 |
84 |
87 |
||
Stroke (mm) |
95 |
90 |
100 |
92.4 |
||
Total displacement (L) |
2.156 |
2.19 |
2.216 |
2.197 |
||
Rated output (kW) |
23.1 |
23.7 |
24.3 |
24.2 |
||
Rated speed |
1800 r/min |
|||||
Air cleaner type |
Heavy-duty oil bath filter air cleaner |
|||||
Starting system |
12VDC-1.4kW Starting motor |
|||||
Starting aid |
12VDC- 500W Air heater |
|||||
Charging generator |
12V-40A Charging generator |
|||||
|
Generator |
Model |
RF-15-CIMC Specific generator |
||||
Manufacturer |
Marathon(China) |
|||||
Insulation class |
F/H |
|||||
Excitation method |
Brushless self-excitation |
|||||
|
Control system |
Control unit |
ERS or HGM1750 or HGM1780 |
||||
Instrument |
Hour meter/Temperature gauge/Oil pressure gauge/Ammeter/indicator or LCD |
|||||
Protection feature |
Low oil pressure,High coolant temperature,Low coolant level, Generator short circuit or over load |
|||||
Generator set Control |
ON/OFF switch,PREHEAT/START switch |
|||||
We are looking for sales and after-sales agents worldwide for these products.
