Underground Drill Position Navigation Drilling Inclinometer Waterproof Air-plug

Specifications

Underground Drill Position Navigation Drilling Inclinometer Waterproof Air-plug

Features:

• Dual-Axis Inclinometer
• Measuring Range :±1~±90° optional
• Accuracy refer to the technical data
• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• Resolution: 0.001°
• IP67 protection class
• Highly antibration performance >2000g
• Small size :90×50×28mm(customized)
• Water-proof air-plug connector

Application:

• Satellite positioning Search
• Rail-mobile monitoring
• engineering mechanical measurement of dip angle
• oil-well drilling equipment
• Radar detection of vehicle platform
• Underground drill posture navigation
• Gun Barrel angle measurement in early shooting
• Based on the angle direction measurement
• Satellite communications vehicle posture detection
• Shield pipe jacking application

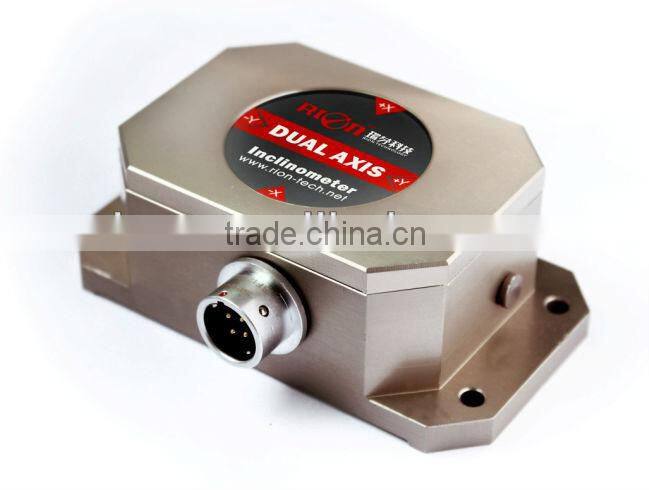

Product Show

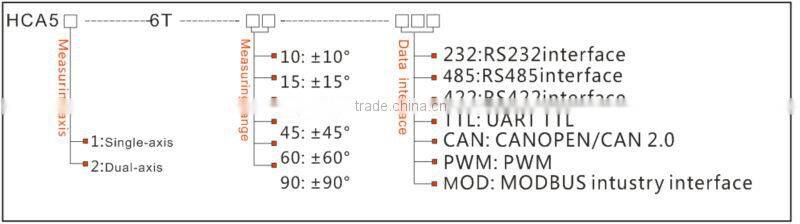

Ordering information

Technical Data

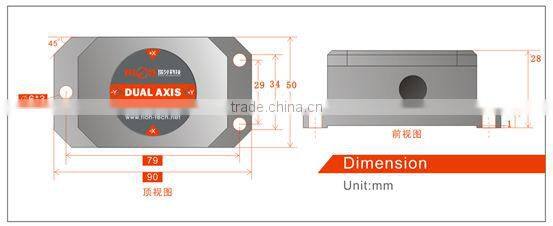

Dimension

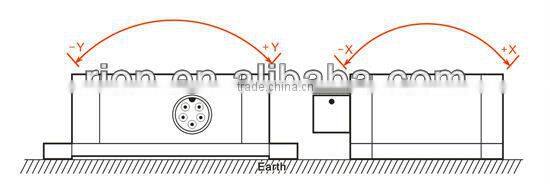

Measuring Directions&Fix

• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
