Precision Dip Protractor Digital Screen

Specifications

Precision Dip Protractor Digital Screen

Technical data

General Description
DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI820 is a uniaxial 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI820 (SMI820) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI820 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market.

Features:

• Best accuracy:<0.003°
• Repeatability:0.003°
• Angle resolution:0.001°
• Maximum measuring range:±90°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°~ +70°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate ZERO by himself
• Built-in rechargable industry batteries
• Night vision fours colors screenIP54 protection class
• °/mm/m Dual units switch function
• Filter frequency optional
• Three kinds of measurement mode selectable (radian, angle, mm)

Application :

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

Product Dimension diagram

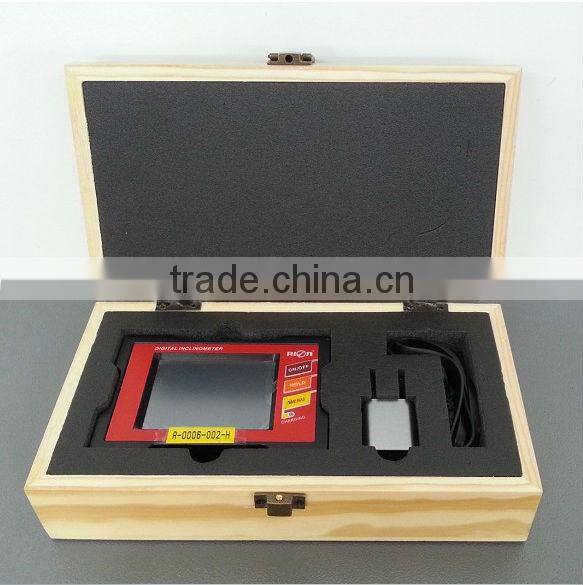

Package
