Cheap 3D Anti-interference Heading Compass Customized Size

Specifications

Cheap 3D Anti-interference Heading Compass Customized Size

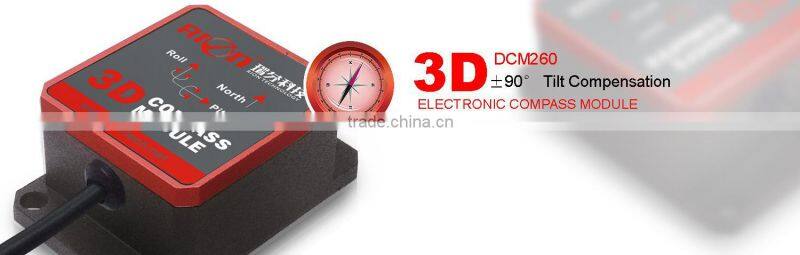

DCM260B is a low-cost 3D electronic compass (with enclosure), using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM260B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

DCM260B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Features:

Heading accuracy: 0.8°                                                  Tilt angle measuring range :±85°

Tilt angle resolution: 0.1°                                              Tilt angle accuracy: 0.2°

Wide temperature :  -40°C~+85°C                              Size:  L55×W37×H24mm

With hard magnetic ,soft magnetic and angle compensation  DC 5V power supply

Standard RS232/RS485/TTL output interface           IP67 protection class

Application :

Satellite antenna search satellite              Marine navigation surveying and mapping

GPS integrated navigation                          Antenna servo control

Gun emission system                                 Infrared imager

Laser range finder                                       Map for plotter

ROV underwater robot navigation            Oceanography measurement instruments

Special occasion robot                              Unmanned aircraft

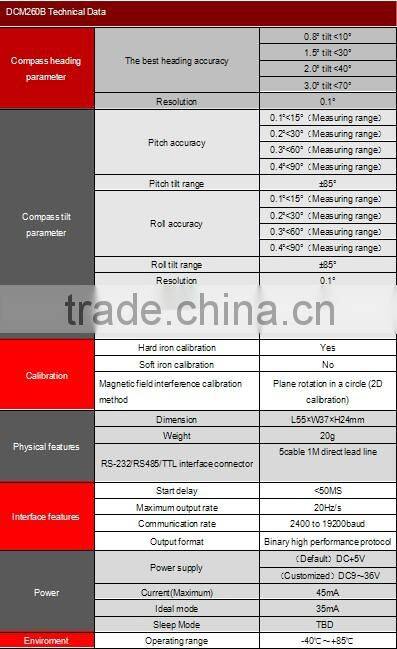

Technical Data

Product Function Introduction   Order info:

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our ultimate destiny.

 Certificates & Honor

Package: Carton and sponge

We will ship your order within 7 business days after we receive the full payment.

If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.

we are solution expert, we can make as your own design,shape,size,color and any other requirements.Any time when you received the goods,you will find them very personalized in the target market.

Being a professional manufacturer of tilt sensor, vibration sensor, compass etc, we will provide service and technical support before, in the middle of and after sales.

We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
