Place of Origin Guangdong, China
Brand Name RION
Model Number LCA318T

Specifications

1.Full measuring range anyone within 360deg optional
2.Wide voltage input: 9~36V
3.IP67 protection class
4Resolution: 0.05ded







LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )



  LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )

General Description :

The LCA318T series inclinometer which developed by Rion Company is a small volume MEMSsingle-axis tilt sensor, the output current through an internal secondary linearity correction, is a linearity current output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, long distance transmission can up to over 2000 Meters, strong ability of resisting external electromagnet interference, can be adapted to long-term working in the industry harsh environment.

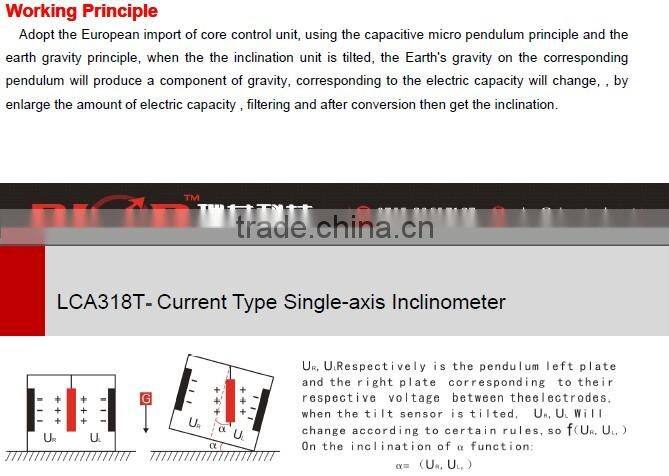

This product adopts the non-contact measuring principle, can real-time output the current attitude angle, simple to use, no need to find the relative variation of the two surface for mounting. It is a ideal choice for Industrial automation control and platform measuring attitude !



Features

1.Single-Axis Inclinometer

2.Full measuring range anyone within 360° optional

3.Accuracy: refer to the technical data

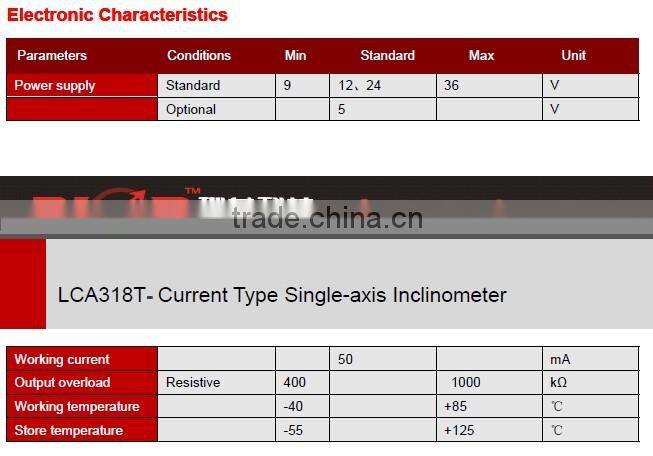

4.Wide voltage input: 9~36V

5.Output mode: 4~20mA

6.Wide temperature working: -40~+85°C

7.IP67 protection class

8.Highly anti-vibration performance >3500g

9.Resolution: 0.05°

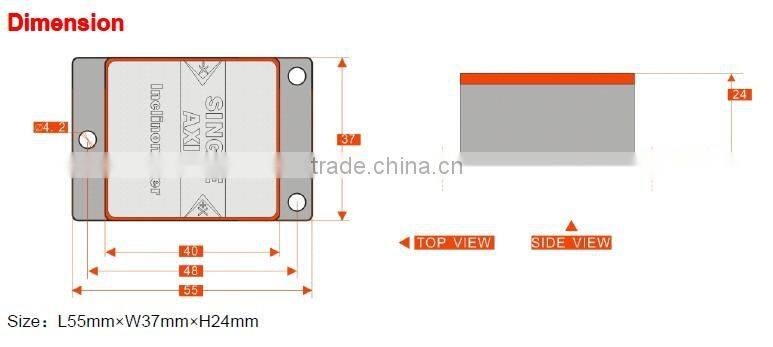

10.Small Volume : 55×37×24mm(customized)



Application:

1.Electric blind man chair leveling

2.Cloud deck operating monitor

3.Satellite antenna positioning

4.Medical equipment leveling

5.Car Chassis Measurement

6.Four - wheeled positioning system

ing mechanical measurement of dip angle



LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )

LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )



Our Company & Workshop View :



LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )



LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )







Certificates & Test Reports :







 LCA318T Single Axis Low Cost Inclinometer With Current output(4~20mA or 0~20mA optiontal )
