MEMS Based Industrial Wireless Inclinometer With 433Mhz Frequence Band
Production implementation standard reference
- Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101)
- Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level
- The Academy of metrology and quality inspection Calibrated in accordance to: JJF11192004 Electronic Level calibration Specification
- Gyro accelerometer test standard: QJ 2318-92 Gyro accelerometer test methods
- Software development reference standard: GJB 2786A-2009 military software development General requirements
- Product environmental testing standards: GJB150
- Electromagnetic anti-interference test standards: GB / T 17626
General Description

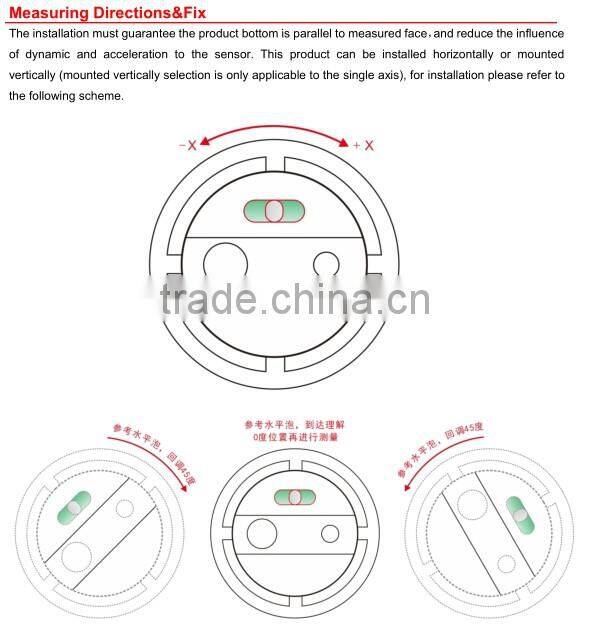

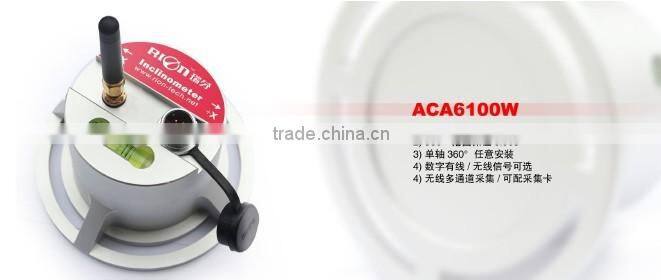

ACA6100W is an inclinometer which developed by RION Company for high-precision 360deg measurement application industry , it is known that all non-contact MEMS inclinometers can not guarantee the accuracy if the measurement range is too large,some industries require minimal mesuring angle actual, but because the unpredictability of the installation angle or mounting angle is relatively large, this will sacrifice accuracy to accommodate installation, in order to improve this situation, our company targeted development this inclinometer, it can be installed anywhere in 360deg , refer to level bubble,
adjust the installation postion near to level ZERO then for measurement using , so that it not only can be mounted in a large angle but also can be high-precision measurement. ACA6100W is a Single-Axis Digital Inclinometer with full temperature compensation,the maximum measurement range ± 15 °, ± 5 ° to ensure the accuracy of 0.005 °, high resolution 0.0005 °. Output interface RS485, RS232, TTL, CAN 2.0B or wireless transmission, wireless uses ISM-Band frequency, in line with global ISM band communications standards, no need to apply frequency. Carrier frequency within 400-480MHZ. The communication distance can be up to 200 meters in the visual open area, our company also sell another supporting wireless acquisition card and professional multi-channel simultaneous presentation software that can simultaneously acquire the multiple inclinometers data then packaged data is transmitted to the backstage management in digital signal form.ACA6100W with excellent system integration, easy to install, simply fix the sensor to the surface of the measured object, then can automatically calculate the object's horizontal angle, simple to use. With strong ability on resistant external electromagnetic interference and bear shock & vibration , own the absolute competitive advantage in domestic counterparts products .
Features
- Single-Axis Inclinometer
- Measuring Range :±1~±15° optional

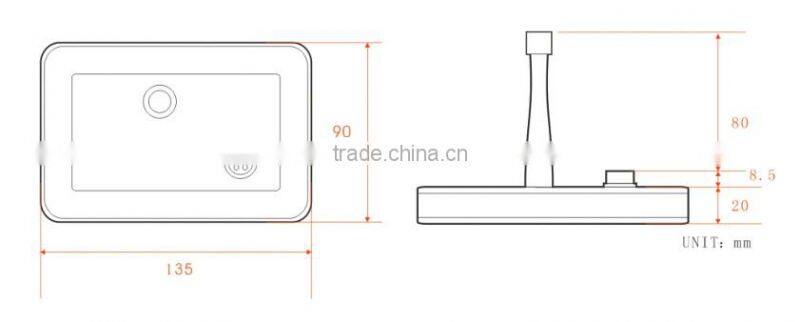

- Size : 98*64.5*61mm(wireless inclinometer), 135*90*108.5mm(including the antenna )
- Wide voltage input: 9~36V
- Wide temperature working: -40~+85°C
- High Resolution: 0.0005°
- IP67 protection class
- Highly anti-vibration performance >2000g
- Water-proof air-plug
- Output mode RS232,RS485,RS422,TTL,CAN 2.0,Wireless are optional
Application
- Metro tunnel subsidence monitoring
- Bridge & dam detection
- Manipulator joint control
- Medical facilities angle control
- Underground drill posture navigation
- Railway gauging rule , gauge equipment leveling
- Precise machine tool level control
- Geological equipment inclined monitoring
- Directional satellite communications antenna
- pitching angle measurement

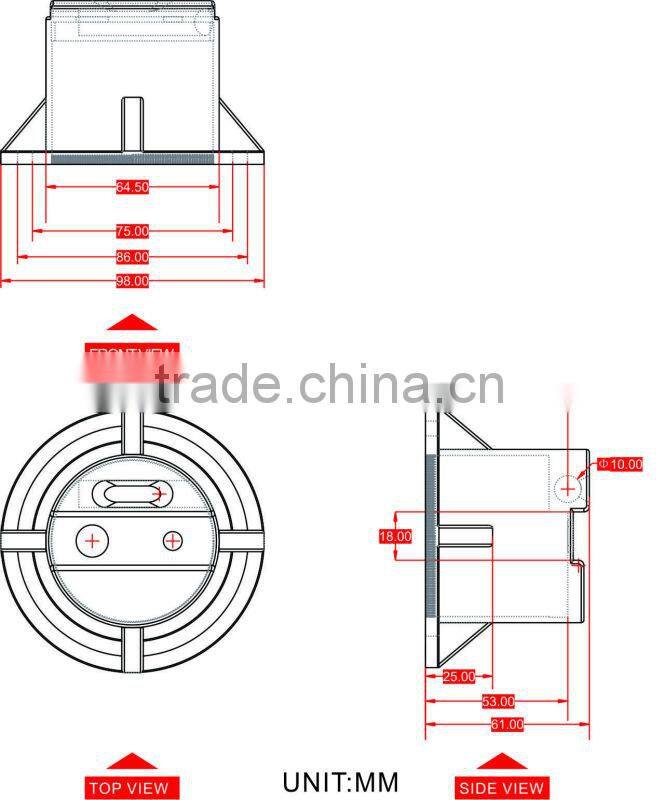

Product size :
Our Company & Workshop Views :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
