Output Optional MEMS Cheap Tilt Sensor For Medical Equipment Level Measurement Using
Desc.
MCA426 is a new version of small size digital type MEMS tilt sensor. it measure static gravity by buit-in accelerometer and convert into tilt change, and then it could measure the tilt and pitch relative to horizontal level. output is optional.Due to built-in MCU control system, the output linearity get two endments,ensuring the accuracy.
Features :
Range------------------------ ±10 ±30 ±60 ±90 ° (optional )
Measuring axis ---------X, Y
Resolution ------------------ 0.05 °
Accuracy(@25℃) 0.3 ~ 0.5 °
Zero temp.drift -------------±0.02 °/℃
Starting time ----------------0.2 S
Response time ------------0.01 S
Output rate ------------------5Hz~100Hz (optional)
Output signal----------------0-5V/4-20mA/RS232/RS485TTL (optional )
Working temp--------------- -40~+85℃
Dimension------------------- L61×W35×H21mm
Water proof ------------------IP67

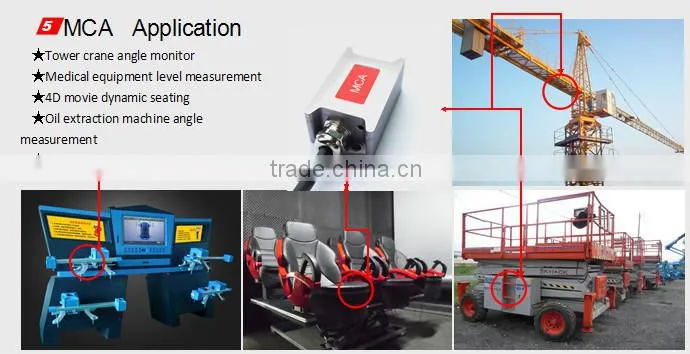

Application :
- Tower crane angle monitor
- Medical equipment level measurement
- 4D movie dynamic seating
- Oil extraction machine angle measurement
- Small machinery vehicle position
Our Company & Workshop View :
Certificates & Test Reports :
We can offer :
- Reliable high quality products and services
- Perfect whole system application solution
- Strong technical support before or after sales service
- Extend strong sales teams & distributors global
- OEM products as buyer's requests
Our main products :
- Single/Dual-axis High accuracy Inclinometer (digital , current , voltage, CAN output type etc. )
- 2D / 3D Electronic Compass Sensor (RS232, RS485,TTL output, etc.)
- 1-Axis , 2-Axis, 3-Axis Accelerometer (digital , current , voltage output, etc.)
- 1-Axis , 2-Axis, 3-Axis Gyroscope((digital , current , voltage output, etc.)
- Single /Dual / Three-Axis Angular Gyro Sensor (RS232, RS485,TTL output, etc.)
- High performance MEMS Mini AHRS ( Attitude Heading Reference System )
- Other Agent Products PNI...etc
Order Process :
Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .
Payment ways :
T/T, WU or Paypal;
Delivery methods & Time :
DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;
Quality Policy :
We gurantee 1 year in free charge .
Storage :
Note usually we don't make any items in stock , samples customize time need around 3-7days .
