General Description

  ACA826Tis a full temperature compensation & high accuracy dual-axis inclinometer which professionally developed by Rion Company to the field of high precision level measurement and leveling field , the maximum measuring range is± 3 °, high resolution 0.0005 °, can completely replace the traditional high-precision level meter. Digital signal transmission, matched with professional computer software, data measure and record correctly,output interface RS485, RS232, TTL, PWM or CAN 2.0B optional.Non-contact installation features make ACA826T with superior system integration, convenient installation only need fix the sensor on the measured surface by screws , then can automatically calculate the object horizontal inclined angle, easy to use .With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage.

Features

• Dual-Axis Inclinometer
• Measuring Range :±1~±3° optional

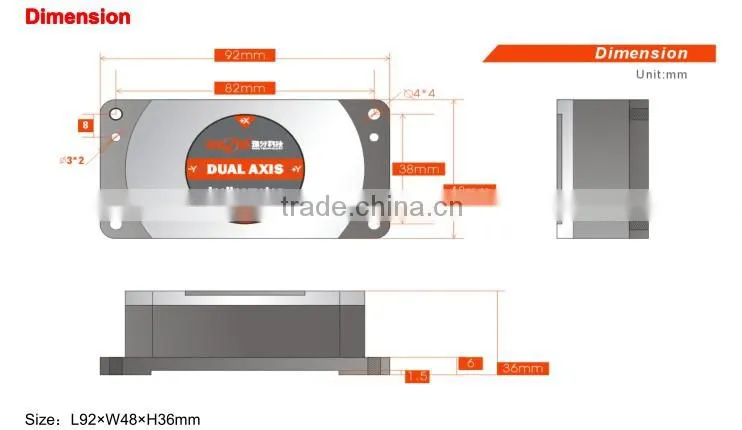

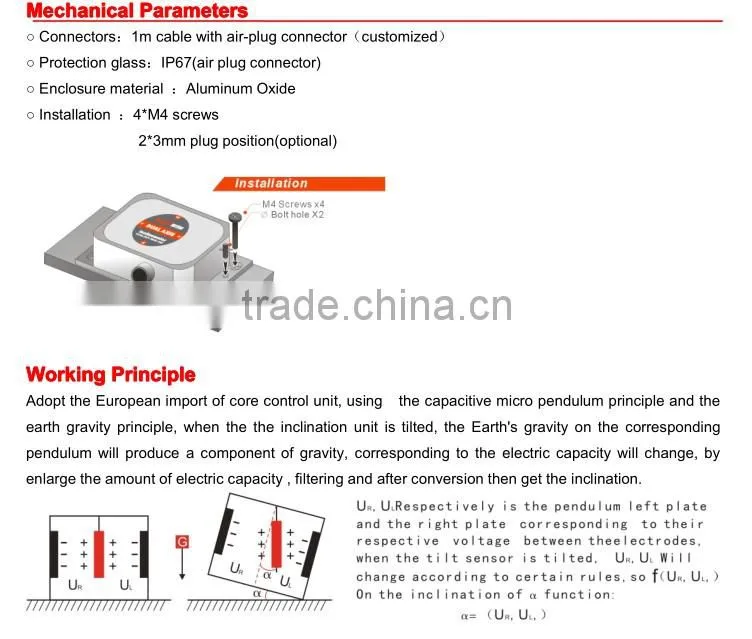

• Size:L92×W48×H36mm

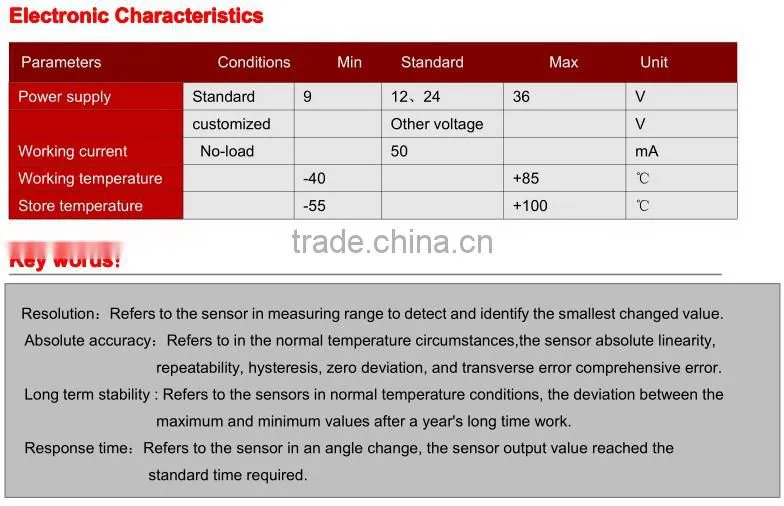

• Wide voltage input: 9~36V
• Wide temperature working: -40~+85°C
• IP67 protection class
• Resolution: 0.0005°
• Water-proof air-plug
• Highly anti-vibration performance >2000g

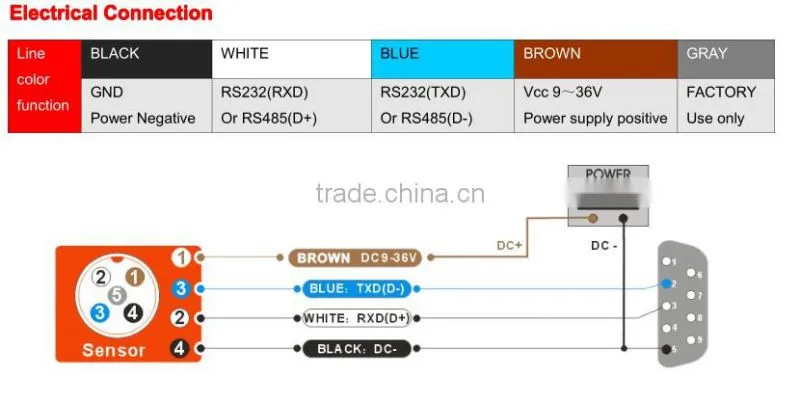

• Output mode RS232,RS485,RS422,TTL,CAN 2.0 are optional

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Laser equipment position
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Precise machine tool level control
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

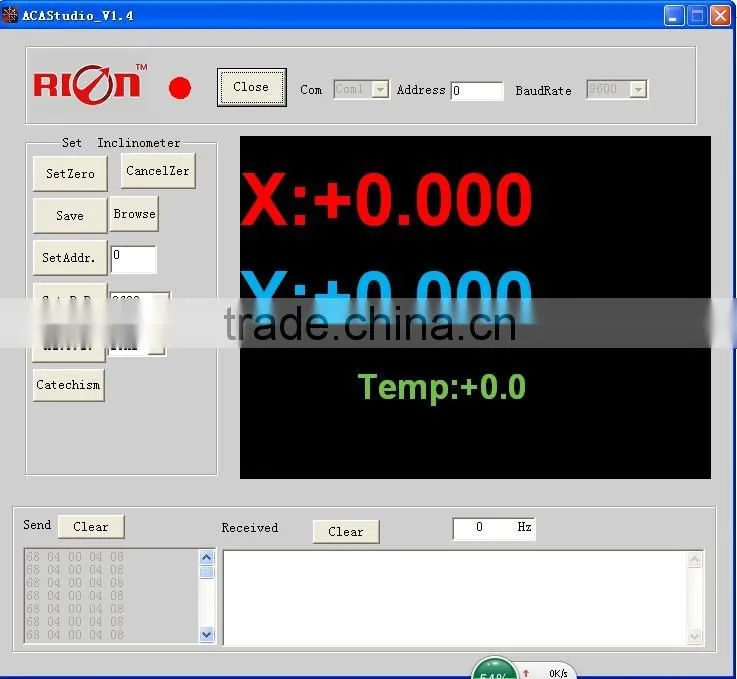

Screen shot for ACA series Software :
