0.0001 DEG RESOLUTION HIGH FREQUENCY ACCURACY LEVEL INCLINATION TILT SENSOR Water Proof

Cartons and sponge

0.0001 DEG RESOLUTION HIGH FREQUENCY ACCURACY LEVEL INCLINATION TILT SENSOR Water Proof

Description:

ACA2000 is a analog balanced servo inclinometer which manufactured by Rion company, the principle is composed of the non-contact displacement sensor, torque motor, error &amplifier circuit, the feedback circuit and cantilever mass five parts. This series inclinometer accuracy is far superior than the inclinometer relative tothe electrolyte principle or the capacitance principle on the nonlinearity,repeatability, hysteresis, temperature drift and working temperature, resistance shock anti-vibrationand other properties.Internal integration of the 24 ARM high-end system,resolution 0.0001 ° ,precision 0.001 ° ,temperature drift: 0.0008 ° C / ° ,response frequencies up to 300Hz (baud rate 115200),it is a highly competitive industry product nowadays .Non-contact installation features make ACA2000 withsuperior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.

Features:

• Dual-Axis Inclinometer
• Measuring Range :±1~±90° optional
• Response frequence: 300Hz
• Wide voltage input: 9~15V
• Wide temperature working: -40~+85°C
• Resolution: 0.0001°
• Size:93.8×55.5×20.5mm(customized)
• IP67 protection class

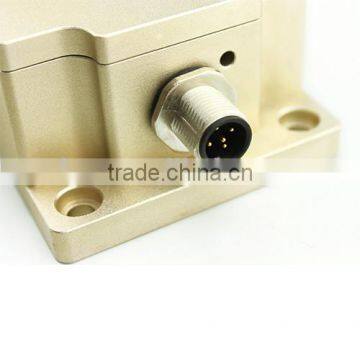

• Output mode RS232,RS485,TTL,PWM are optional  Water-proof air-plug

Application:

• Engineering vehicles automatic leveling
• Bridge & dam detection
• Precise equipment level control
• Medical facilities angle control
• Underground drill posture navigation
• Railway gauging rule , gauge equipment leveling
• Based onthe angle direction measurement
• Geological equipment inclined monitoring
• Directional satellite communications antenna pitching angle measurement

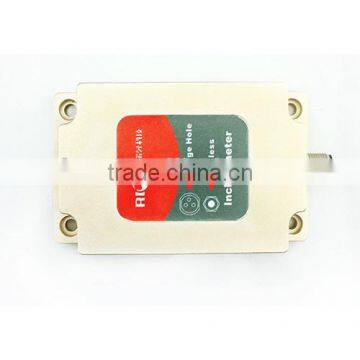

Product Show

Technical Data

Ordering information

Measuring Directions&Fix

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection is only applicable to the single axis), for installation please refer to the following scheme.

Dimension

Production installation notes :

Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line"::1)The Sensor mounting surface and the measured surface must be fixed closely,  smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error. See Figure Pic.AB

2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible. See Figure Pic.CD

Electrical Connection
